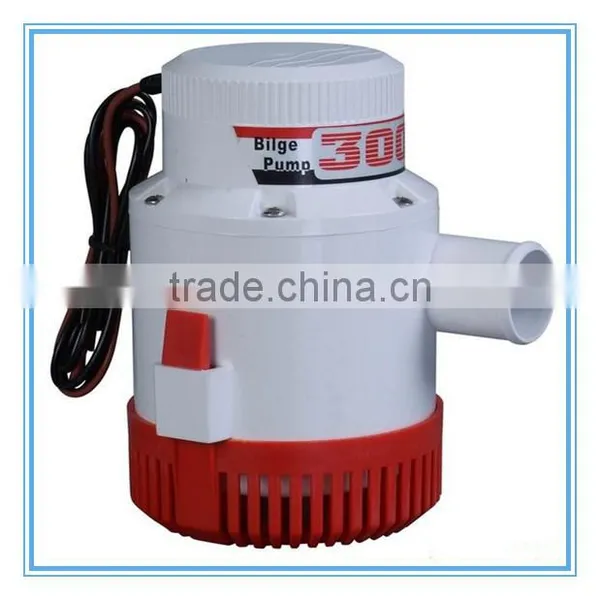

3000GPH 12v dc Small Electric Water Pump

Specifications

12v DC Sea Water Pump
Voltage: 12/24V DC
Rated Current:1 - 4A
Flow Rate: 350 - 1500GPH
Certification: CE, RoHS

12V/24V DC Marine Bilge Pump/ 12v dc Small Electric Water Pump



Description

Heavy duty motors with stainless steel shafts and tough thermoplastic bodies;

Totally submersible and ignition protected;
To all existing safety standards;
Water cooled motors for long life, with anti airlock design and moisture tight seals;

Snap-lock strainer base for easy installation and removal, and silent vibration free running;
No burn out if run dry;

Max Amps 12V: 30A
Max Amps 24V: 15A
Wire Length: 100cm
Wire Gauge Length: 16



Material

Pump body: thermoplastic
Shaft seal: lip seal
Shaft: stainless steel

Color options: red, blue

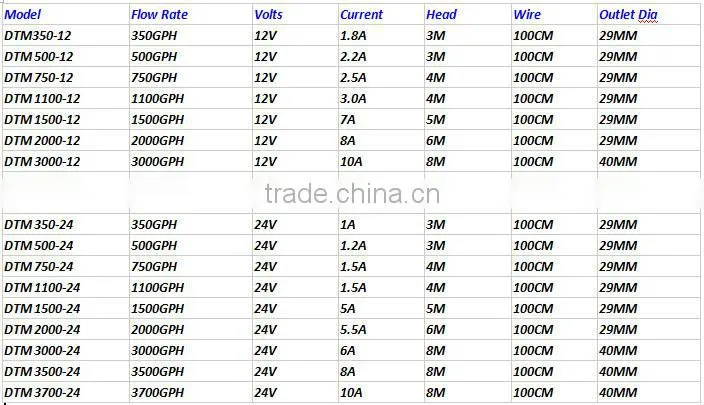

Main Technical parameter





Application

Typically used in boat hulls / bilges

Bait tanks

Ponds, pools, spas

Other applications where you have to remove water

Note: These pumps are designed for intermittent use only,NOT designed for continuous use



How a 12v dc marine water pump works

Non-automatic submersible pumps offer traditional operation activated by a float or panel switch. Removal of the motor cartridge allows for easy cleaning of the strainer and impeller in the event that the pump becomes clogged with debris. Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps, submersibles give very high outputs, are cost effective, have low amp draw and are easy to install. They are designed to fit in the lowest part of the bilge and only require discharge pipe work and electricity supply.





Other Related Products

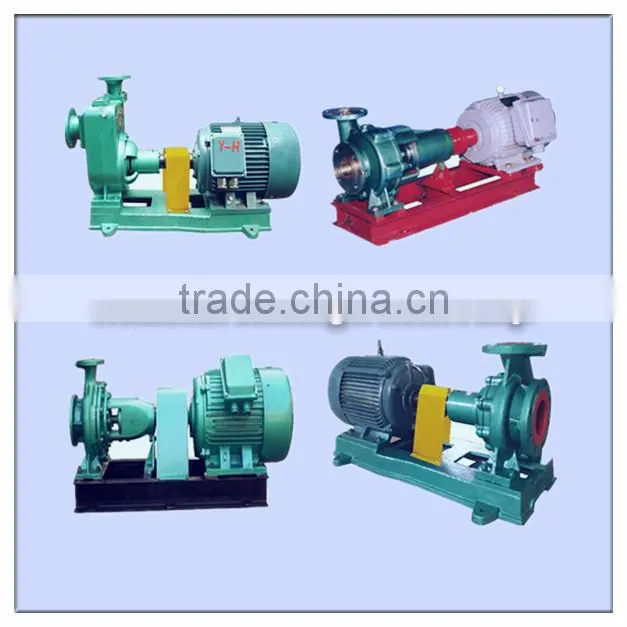

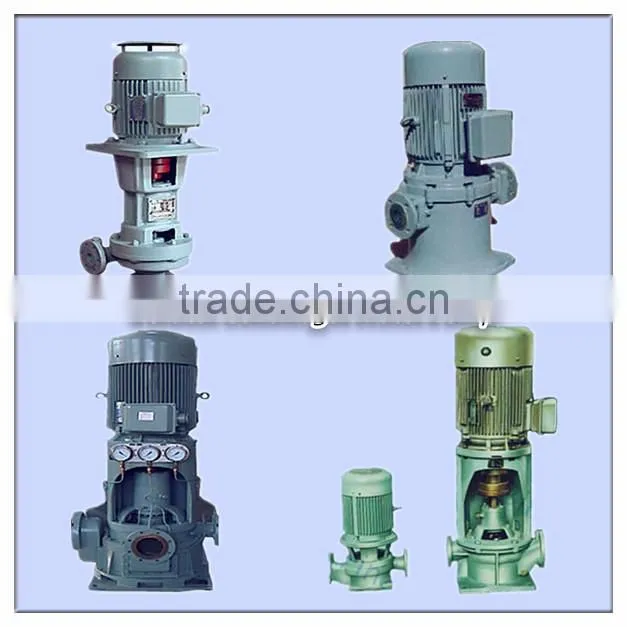

Water Pump:Centrifugal Pump,Vortex Pump,Jet Pump,Bilge Pump

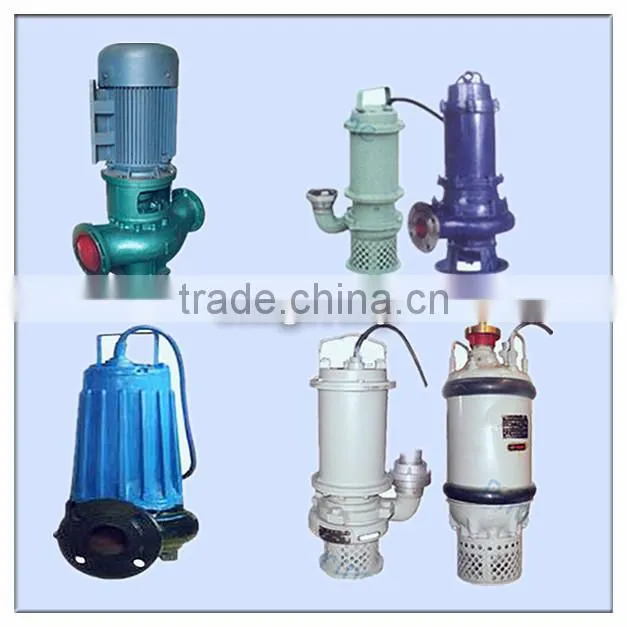

Sewage Pump:Submersible Sewage Pump,Sewage Crushing Pump

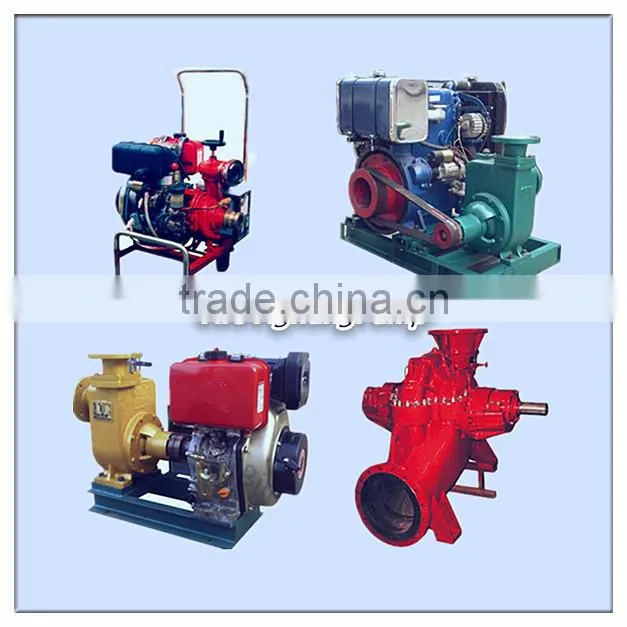

Fire Pump:Portable Fire Pump,Fixed Fire Pump,Diesel Emergency Pump

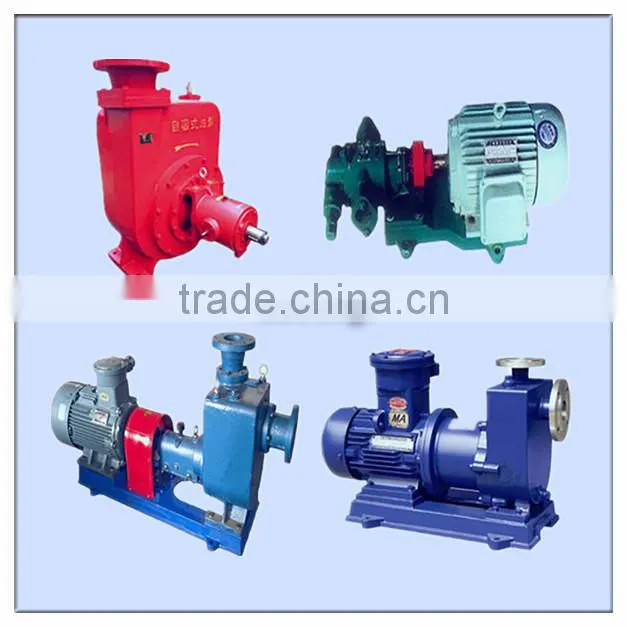

Oil Pump:Gear Oil Pimp,Hot Oil Pump,Self-DIL Priming Centrifugal Oil Pump
