High Quality Peristaltic Dosing Pump
- 1000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | Leadfluid | Model Number: | BT101S |
Theory: | Rotary Pump | Structure: | Gear Pump | Usage: | Other, Dosing, Metering, Fluid Transfer |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | Low Pressure | Application: | Metering |
Product Description
High Quality Peristaltic Dosing Pump
BT101S+YT15
1. Low cost (promoting price)
2. Wide flow range 0.006-570ml/min
3. Beautiful ABS shape
4. Easy dispensing function

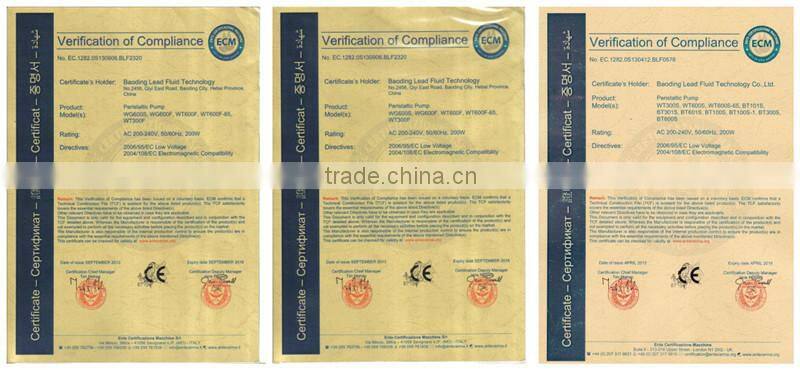

5. CE, ISO9001 certificate
BT101S Basic Speed –Variable Peristaltic Pump flow range is 0.00011-720ml/min(with different pump head). Rotate speed is 0.1-150rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Feature
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.
• ABS plastic housing, patent protection, creative streamlined appearance, beautiful and practical.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
Technical Parameters for BT101S Matching with Different Pump Heads and Tubes
Drive Model | BT101S |
Pump Head Model | DG6-1,DG10-1,DG6-2,DG10-2,DG6-4,DG10-4,DT10-18,DT10-28,YZ15,YZ25,YT15,YT25 |
Tube | 13#~19#,24#25#35#36# |
Flowrate | 0.00011-720ml/min |
Accuracy | ±0.5% |
Speed | 0.1-150rpm |
Speed Resolution | 0.1-100 rpm, the speed resolution is 0.1 rpm; 100-150 rpm, the speed resolution is 1 rpm |
Power Supply | AC 220V±10%,50Hz/60Hz(standard); AC 110V±10%,50Hz/60Hz(optional) |
Power Consumption | <30W |
External Control | Input electrical level 5V, 12V (standard),24V(optional). External control analog 0-5V(standard),0-10V,4-20mA(optional) |
External Communication Interface | RS485 communication interface, support the MODBUS protocol. |
Ambient Temperature | 0 ~ 40℃ |
Relative Humidity | <80% |
IP Grade | IP31 |
Dimensions(LxWxH) | 260mmx181mmx198mm |
Weight | 4.5KG |

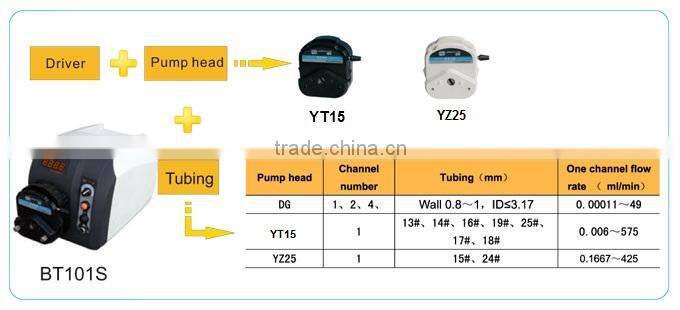

Applicable pump head and tubing, flow parameters
Drive type | Pump head | Channel number | Tubing(mm) | One channel flow rate |
(ml/min) | ||||
BT101S (ABS plastic) | DG6-1(6 rollers) | 1 | Wall 0.8~1,ID≤3.17 | 0.00016~49 |
DG10-1(10rollers) | 1 | Wall 0.8~1,ID≤3.17 | 0.00016~41 | |
DG6-2(6 rollers) | 2 | Wall 0.8~1,ID≤3.17 | 0.00016~49 | |
DG10-2(10 rollers) | 2 | Wall 0.8~1,ID≤3.17 | 0.00011~41 | |
DG6-4(6 rollers) | 4 | Wall 0.8~1,ID≤3.17 | 0.00016~49 | |
DG10-4(10 rollers) | 4 | Wall 0.8~1,ID≤3.17 | 0.00011~41 | |
YZ15 | 1 | 13#14#16#19#25#17#18# | 0.0006~575 | |
YZ25 | 1 | 15#24# | 0.1667~425 |

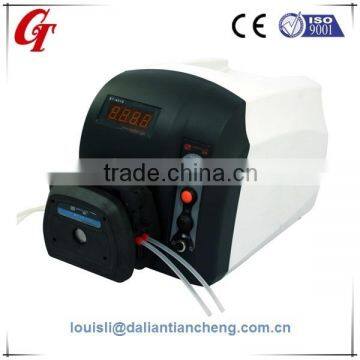

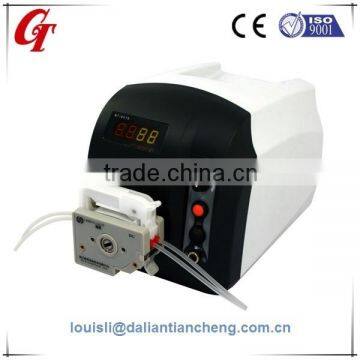

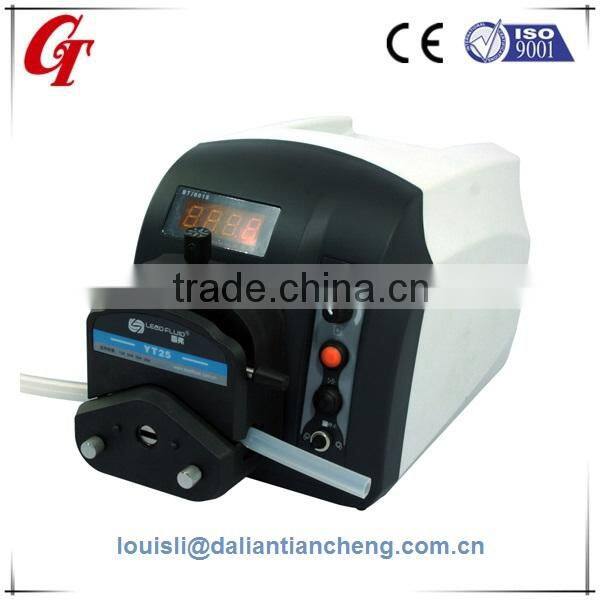

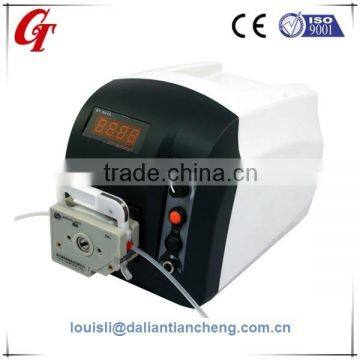

Peristaltic Pump BT101S(YT15)
Peristaltic Pump Application:
Quality is always our top priority in our business. We have excellent quality control system and professional quality engineers. We believe the best way to avoid quality problems is not to let any product with quality issue out of the factory. At the same time, we provide 1 year quality guarantee(from B/L date).
If you have any question, please contact us as below:
