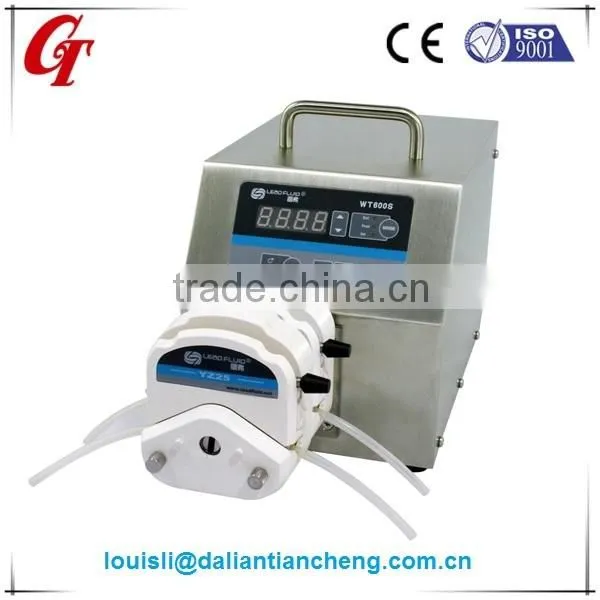

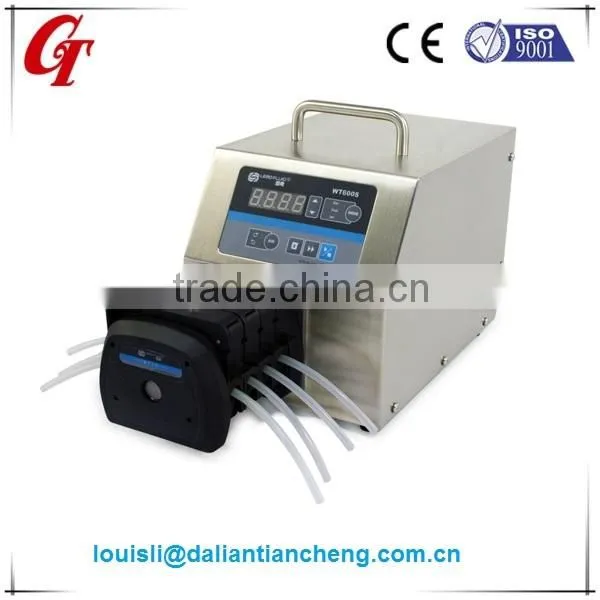

Leadfluid 1.8-6000ml/min WT600S Basic Speed Variable Peristaltic Pump
We have many types of peristaltic pumps for your option, with different flow range.
OEM service is also acceptable, and we can put your logo on the products.
This pump adopts DC brushless motor drive which is large torque, free maintenance, can cascade four pump heads .Has basic functions such as reversible direction, start/stop, full speed (fast cleaning) and adjust speed. Control the start/stop, reversible direction, adjusts the speed via external analog quality, and adds the time dispensing function.RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machines interface and PLC.
» Function and Feature
•Four-figure digital LED indicator display working speed.
• The LED indicator displays the internal, external control, footswitch etc working modes.
• Mask keypad operation.
• Reversible direction, start/stop, adjust
speed and full speed, state memory (power –down memory).
• Easy dispensing functions, it realizes the repeat timing quantitative dispensing liquid
• Can drive multi-channels and various types of pump heads.
• Speed resolution is 1rpm, speed range is 30-600rpm, flow accuracy is 3%.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high –low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface ,MODBUS protocol is available ,easy to connect with other equipments.
• Optional footswitch or timer for dispensing fluid.
Technical Parameters for BT601F Matching with Different Pump Heads and Tubes
| Drive Model | WT600S |
| Pump Head Model | YZ15,YZ25,YT15,YT25, 4YT25 etc. |
| Tube | 13#~19#,24#25#35#36# |
| Flowrate | 1.8-6000ml/min |
| Accuracy | ±0.5% |
| Speed | 30-600rpm |
| Speed Resolution | 1 rpm |
| Power Supply | AC 220V±10%,50Hz/60Hz(standard); AC 110V±10%,50Hz/60Hz(optional) |
| Power Consumption | <200W |
| External Control | Input level 5V,12V(standard),24V(optional) External control analog 0-5V(standard),0-10V,4-20mA(optional) |
| External Communication Interface | RS485 communication interface, MODBUS protocol is available. |
| Ambient Temperature | 0 ~ 40℃ |
| Relative Humidity | <80% |
| IP Grade | IP31 |
| Dimensions(LxWxH) | 286x180x230 mm |
| Weight | 11KG |
Applicable pump head and tubing, flow parameters
Drive type |
Pump head |
Channel number |
Tubing(mm) |
One channel flow rate |
WT600S |
YZ15 |
1,2,4 |
13#14#16#19#25#17#18# |
1.8~2300 |
YZ25 |
1,2,4 |
15#24# |
50~1700 |
|

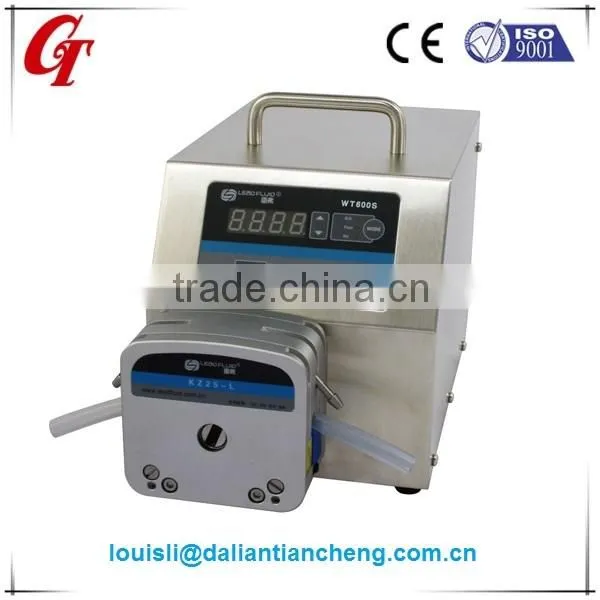

KZ25 |
1,2 |
15#24#35#36# |
80~6000 |

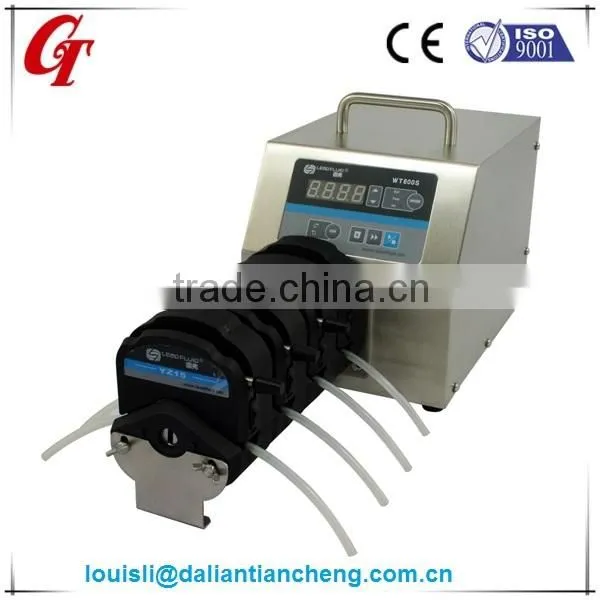

WT600S YZ15-4 Basic Speed Variable Peristaltic Pump

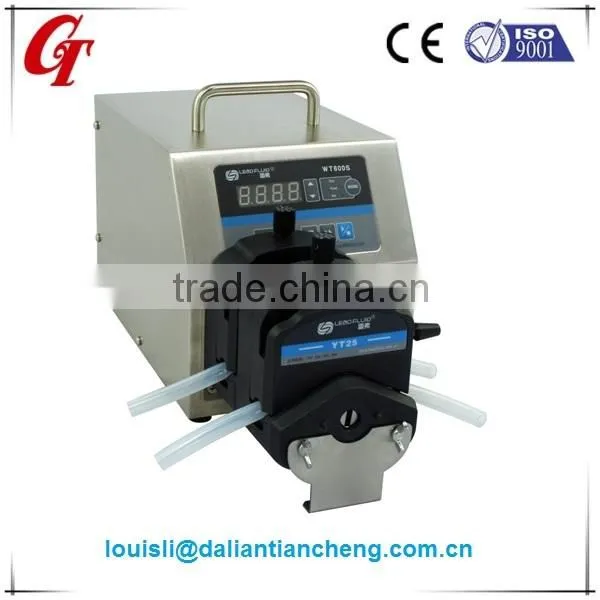

WT600S YT25-2 Basic Speed Variable Peristaltic Pump
Peristaltic Pumps Application:
Quality is always our top priority in our business. We have excellent quality control system and professional quality engineers. We believe the best way to avoid quality problems is not to let any product with quality issue out of the factory. At the same time, we provide 1 year quality guarantee(from B/L date).
