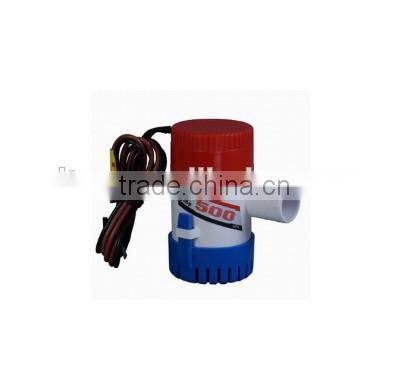

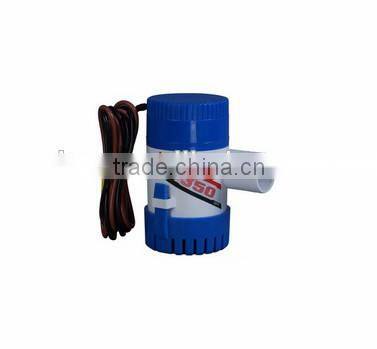

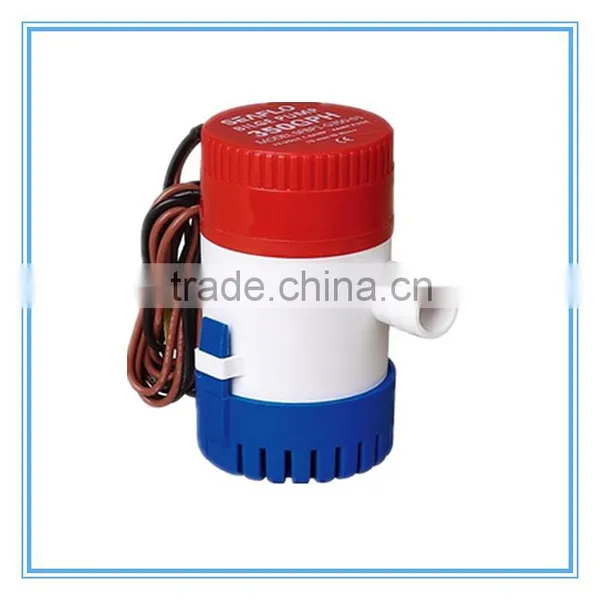

350GPH~1500GPH 12v dc Small Electric Water Pump

12V/24V DC Marine Bilge Pump/ 12v dc Small Electric Water Pump

Description

Heavy duty motors with stainless steel shafts and tough thermoplastic bodies;

Totally submersible and ignition protected;
To all existing safety standards;
Water cooled motors for long life, with anti airlock design and moisture tight seals;

Snap-lock strainer base for easy installation and removal, and silent vibration free running;
No burn out if run dry;

Max Amps 12V: 30A
Max Amps 24V: 15A
Wire Length: 100cm
Wire Gauge Length: 16

Material

Pump body: thermoplastic
Shaft seal: lip seal
Shaft: stainless steel

Color options: red, blue

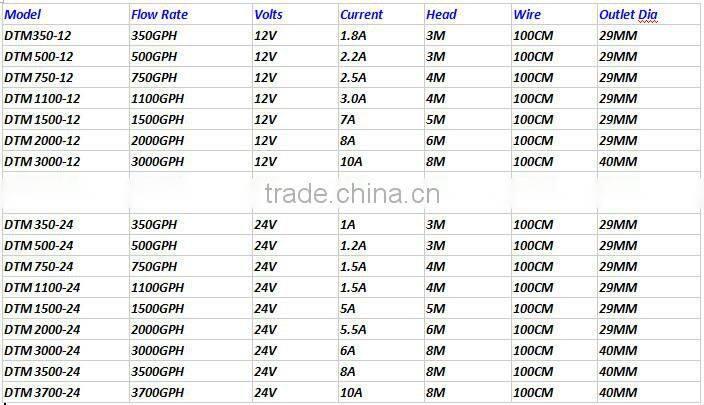

Main Technical parameter

Application

Typically used in boat hulls / bilges

Bait tanks

Ponds, pools, spas

Other applications where you have to remove water

Note: These pumps are designed for intermittent use only,NOT designed for continuous use

How a 12v dc marine water pump works

Non-automatic submersible pumps offer traditional operation activated by a float or panel switch. Removal of the motor cartridge allows for easy cleaning of the strainer and impeller in the event that the pump becomes clogged with debris. Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps, submersibles give very high outputs, are cost effective, have low amp draw and are easy to install. They are designed to fit in the lowest part of the bilge and only require discharge pipe work and electricity supply.

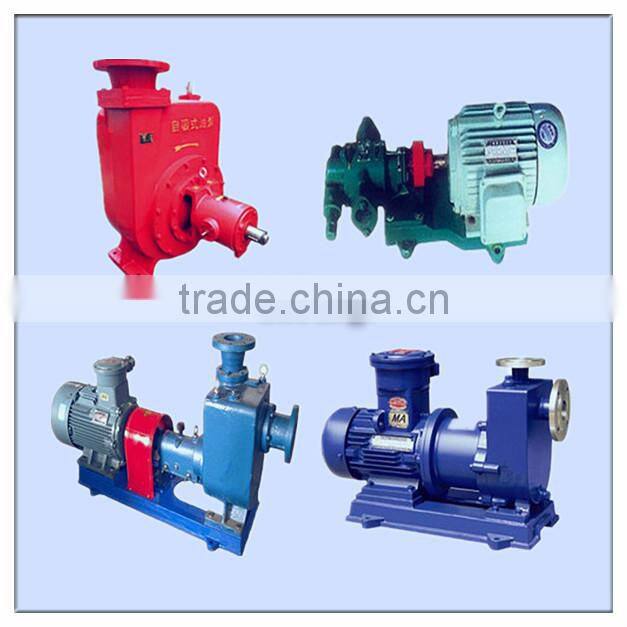

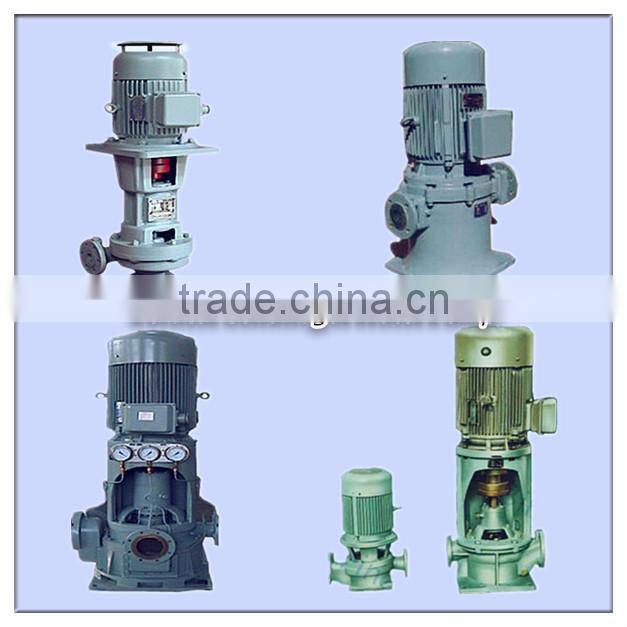

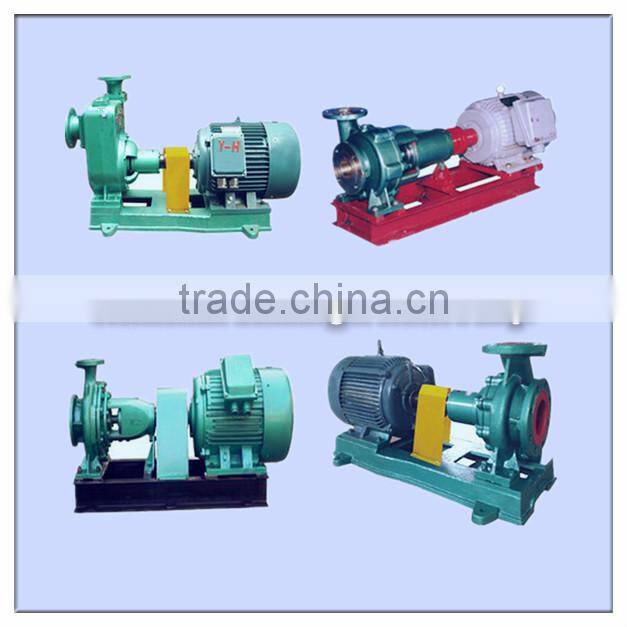

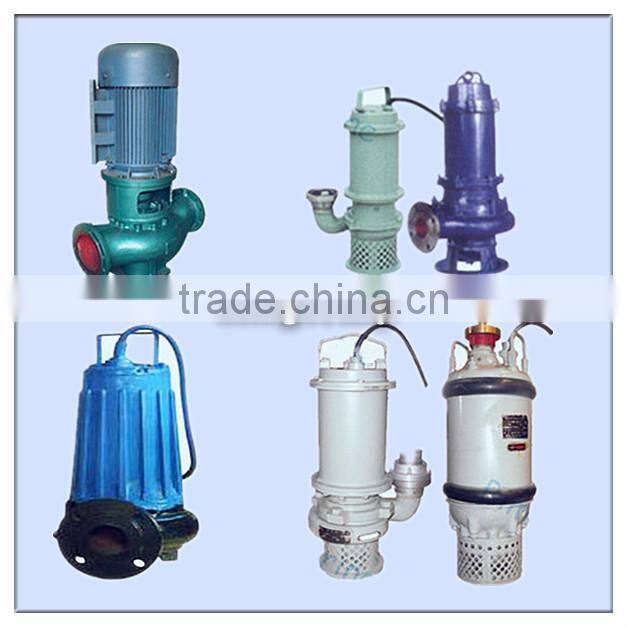

Other Related Products

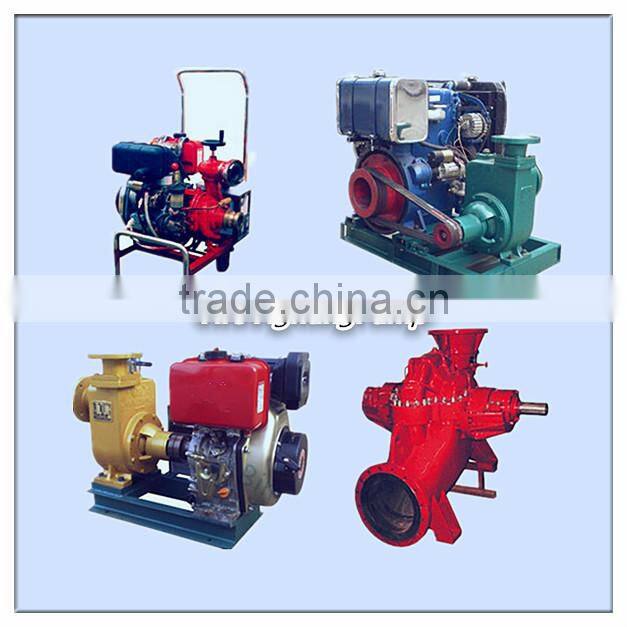

Water Pump:Centrifugal Pump,Vortex Pump,Jet Pump,Bilge Pump

Sewage Pump:Submersible Sewage Pump,Sewage Crushing Pump

Fire Pump:Portable Fire Pump,Fixed Fire Pump,Diesel Emergency Pump

Oil Pump:Gear Oil Pimp,Hot Oil Pump,Self-DIL Priming Centrifugal Oil Pump

Valves:Butterfly Valve,Globe Valve,Gate Valve,Check Valve,Angle Valve

How to order pumps from DTM?

Please tell us the Model and Quantity and other request you need.

If you have the certificate requirements, please let me know.

After your confirmation, PI will send to you.

We'll arrange the order for you after receiving your payment

After the goods finished, we send the goods to you and tell you the tracking number.
