Product Description

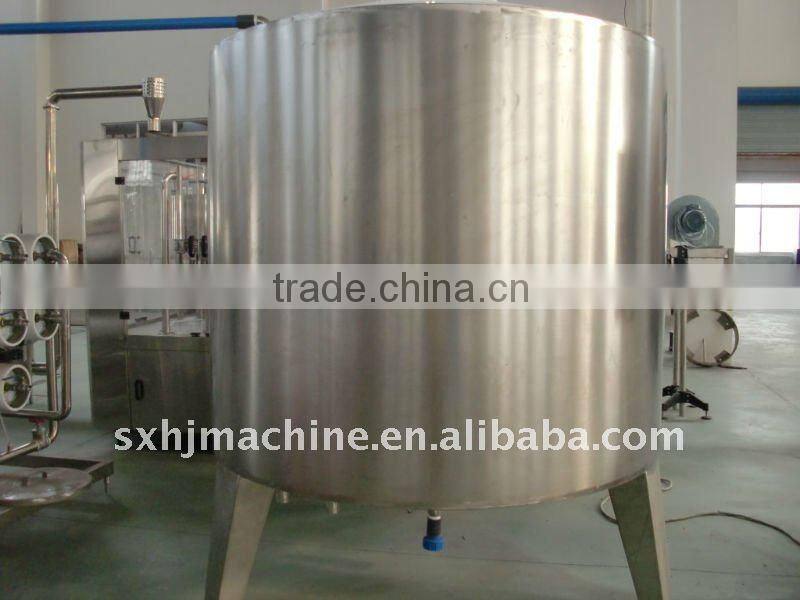

Stainless Steel Tank
WANJIN Machinery specializes in Designing and producing Various Stainless steel tank, Such as Storage tank, Mixing tank , Beer equipments etc.. These tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries fields , which is cleanable to sanitary standards .
Structure:
1. Single layer structure, dual-layer with Jacket or Insulation. Three layer with double jacket.
2. High quality stainless steel 304 or 316L available.
3. Humanized structure design & easy to operate;
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation;
5. PU Foam Insulation are available to keep temperature.
Configuration:
1. Quick open manhole
2. 360 degree rotation CIP spraying ball;
3. Sanitary breathing cover
4. Adjustable triangular legs
5. Dismountable materials input pipe assembly
6. Mixer: Paddle; Frame; Impeller, Be Vertical or Horizontal to choose;
(Top, bottom side & bottom, etc. places to set the mixer)
7. PU foam Insulation
8. Thermometer , Liquid level meter & ladder (According to customer requirements)
9. Other accessories can make according to customer's special requirements
| Technical Parameter | ||||||
| Working Volume (L) | Dimension (DxH)mm | Total Height (mm) | Diameter of Inlet & Outlet (mm) | PU Insulation (mm) | Motor Power (KW) | Mixing Speed (R/Min) |
| 500 | 900 x 800 | 2200 | Φ38 | 50 | 0.75 | ABB/ Siemens 35 -150 Rpm |
| 800 | 1000 x1000 | 2400 | Φ38 | 50 | 0.75 | |
| 1000 | 1100 x 1200 | 2900 | Φ38 | 50 | 1.1 | |
| 2000 | 1300 x 1500 | 3100 | Φ38 | 50 | 1.5 | |
| 3000 | 1550x 1500 | 3300 | Φ51 | 50 | 1.5 | |
| 4000 | 1600 x 2000 | 3800 | Φ51 | 50 | 2.2 | |
| 5000 | 1700 x 2200 | 4150 | Φ51 | 50 | 2.2 | |
| 6000 | 1700 x 2600 | 4500 | Φ51 | 50 | 3 | |
| 1. It can be made according to special requirements of customers. Total Height is in accordance with outlet height of 300mm. If outlet height is changed, Then the total height shall also be changed! | ||||||
| 2. The Power of Motor shall be changed according to the Viscosity of material In the tank! | ||||||
