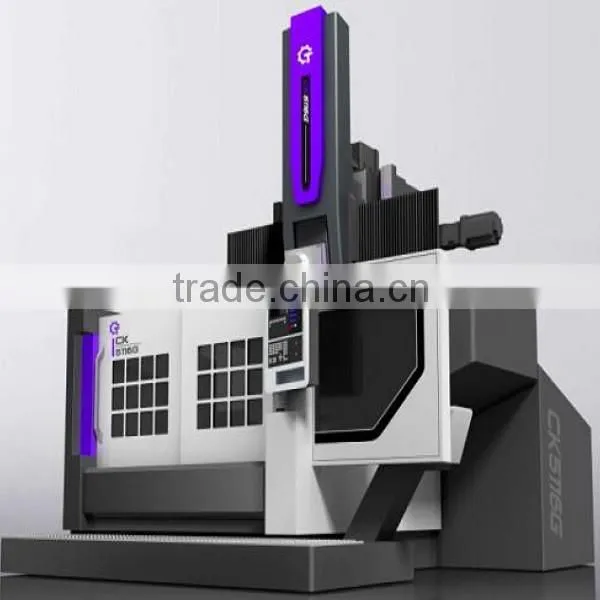

CK5112G CNC Vertical Turning Torno CNC From China Vertical Turning Torno in Torno
Technical Paramter:
Specification |
Unit |
Model CK5112G |
Max. turning diameter |
mm |
1250 |
Table diameter |
mm |
1000 |
Max. height of work piece(H) |
mm |
1000 |
Max. weight of work piece(W) |
kg |
5000 |
Speed range of table |
r/min |
6.3-250 |
feeding range of tool head(Stepless) |
mm/min |
0.2-500 |
Vertical tool rest ram stroke |
mm |
600 |
Travel of cross rail |
mm |
750 |
Rapid traverse of tool holder |
mm /min |
8000 |
Horizontal travel of tool holder |
mm |
700 |
Max. cutting force of vertical tool holder |
KN |
20 |
Max. torque of table |
KN.m |
13.5 |
CNC system |
|
SIEMENS 828D/GSK980TDc |
X/Z axis feed motor |
N.m |
27 |
Power of main motor |
KW |
DC:22 |
X/Z Positioning accuracy |
mm |
0.018/0.02 |
X/Z Repeat positioning accuracy |
mm |
0.008/0.015 |
Capacity |
Cutter spacing |
4 |
Overall dimensions of machine(L×W×H) |
mm |
3000×2800×3200 |
Weight of machine(approx) |
Kg |
10780 |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:

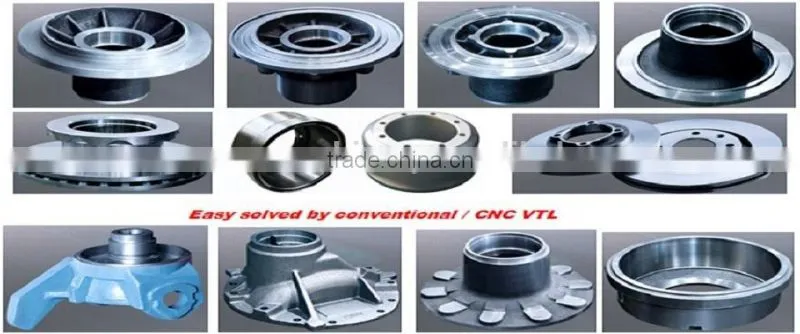

1. This machine tool is a CNC vertical lathe, which is designed for high precision, stability and rigidity. It applies to the turning for the tools such as hard alloy and high speed steel machine ferrous metal, non-ferrous metal, and part of non-metal parts. This machine tool is suitable for the rough and finish machining of complicated surface of revolution of all kinds. It can also finish such kinds of processing as cutting groove, cutting off and counter boring, etc.

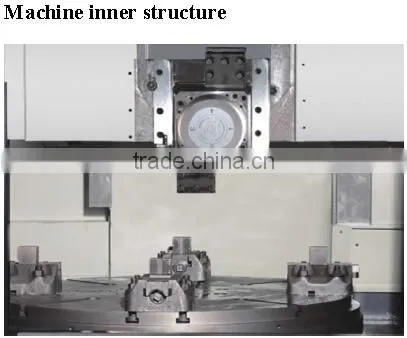

2. The agent structure of this machine tool is single column style. The guide way of its table is slide one with dynamical pressure. Feed drive is fulfilled by the ball-screw shaft and an AC servo motor.
3. The NC system of the machine tool is the Siemens 802D system, which is easy to operate and program( The customers also may choose another CNC system).The system possesses may abilities, such as linear interpolation, arc interpolation, spindle ability, tool ability assistant ability, clearance compensation, self-diagnosis ability, program storage, high speed, high precision and high reliability of alarms, program of graphic counter, the ability of graphic technics cycle,etc.
4. The machine tool vertical structure ram: T-ram with 4-position electric tools
Packaging detail: Dismantled into fumigated wood cases, loaded into containers and fastened by iron cable.
Shipping: 2-3 months
Engineers available to service machinery overseas.
Q1. How about your Machine Service?
A. We are supply machine operation and maintenance training and give warranty 1-2 years.
We are supply install service in customer factory, we also can supply installation video if you need.
Q2. How about your delivery time?
A. Loading port: Xiamen port. Or according to your requirement.
General 1-3 months for delivery time.
Q3. How about your payment terms?
A. TT (with 30% deposit)
L/C at sight
Western union
Q4. How to arrive your factory?
A. Line1. Choose to Quanzhou Railway Station. It take 30mins from station to our factory by car.
Line2. Choose to Jinjiang Airport. It take 40mins from airport to our factory by car.
Line3. Choose to Xiamen Airport. It take 1 hour from airport to our factory by car.
We are ready to convenience you to visit us. More support just feel easy to inquiry us.
Why choose us?
√ We own a very strong R&D team and good experienced engineer group in our factory.
√ All our products starting from planning, developing, designing, producing, assembling, testing to final delivering are based on the customer’s requirement.
√ To achieve the highest quality and customer trust on our products, we never stop our technology improvement and know-how upgrade.
√ We are original import production equipments from Spain NICOLAS CORREA brand for guarantee our machine main parts quality.
√ We have our own casting factory with mature tech for casting body and parts more than 20 years.
√ We are design and production machines under the Taiwan and Europe standard.
Your detailed inquiry will be highly appreciated,we are looking forward to your reply!
