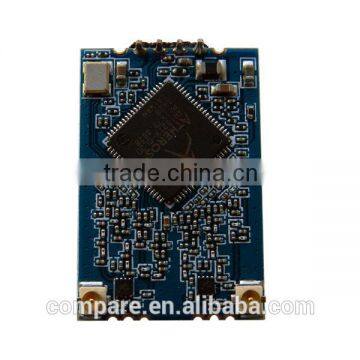

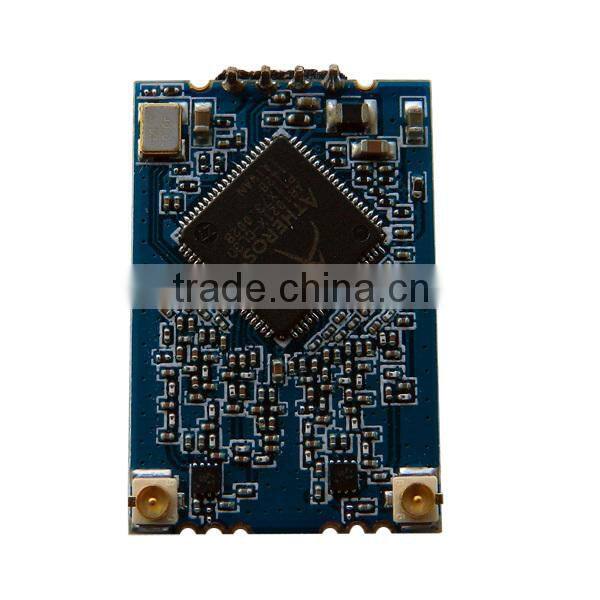

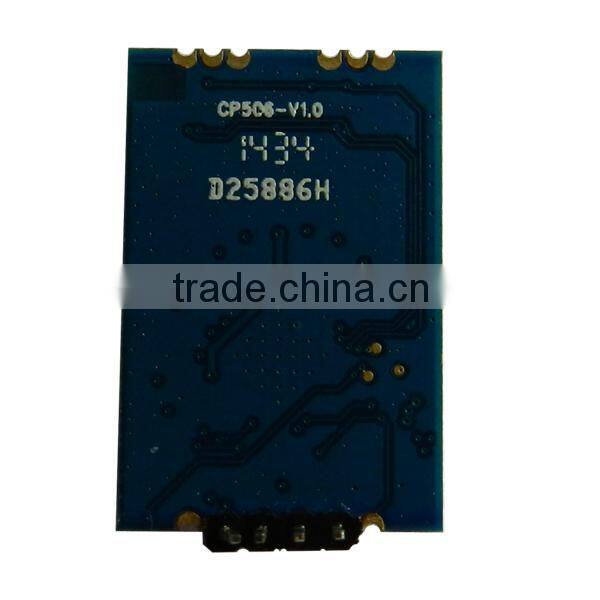

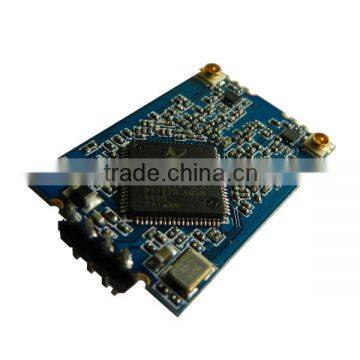

Help Center300Mpbs 2t2r Antenna Wifi Pocket Modem 2.4Ghz & 5.8Ghz Dual Band Qualcomm AR1021 Atheros Usb 2.0 Wireless Module
Related Products
-
802.11b/g/n Wifi Adapter Wireless Module RT3070 Usb Wifi Pocket Modem With High ProformanceNegotiableMOQ: 1000 Pieces -
802.11a/b/g/n 2.4GHz & 5.8GHz Dual Band Wifi Modem Qualcomm AR1021 Usb 2.0 Wireless ModuleNegotiableMOQ: 1
-
2.4GHz 150Mpbs External Antenna Wifi Modem Ralink Rt3070 Usb 2.0 Wireless ModuleUS$ 6.5 - 7.8MOQ: 100 Pieces
-
Cheap Price Smart Wifi Pocket Modem Realtek RTL8188ETV Usb Wireless ModuleNegotiableMOQ: 1000 Pieces
-
Low Cost Wireless Module Realtek RTL8723BU 2 in 1 Wifi Bluetooth Module Usb 2.0 Wifi ModemNegotiableMOQ: 100 Pieces
Wireless Wifi Module Specification
802.11a Wireless Module Spec
Key Features
| Model | CP506 |
| Chip | Qualcomm AR1021 |
| Port | USB1.1,USB2.0 |
| Antenna Gain | Need external antenna |
| Working Voltage | DC 3.3V ±0.2V |
| Dimension | 27mm*18mm*2.5mm |
Specification
Model |
CP506 |
Standards |
IEEE 802.11a/b/g/n,CSMA/CA with ACK |
Port |
USB1.1, USB2.0 |
Frequency Range |
2.4~2.4835GHz,5.15-5.35GHZ, 5.745-5.825GHz |
Channel |
1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type |
802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate |
802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity |
130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER |
Transmission Distance |
Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate |
16dBm(Maximum) |
Antenna Gain |
Need external antenna |
Spread-Spectrum Technique |
DSSS(direct sequence spread spectrum) |
Working Voltage |
DC 3.3V ±0.2V |
Dimension |
27mm*18mm*2.5mm |
Working Environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Qualcomm AR1021 |

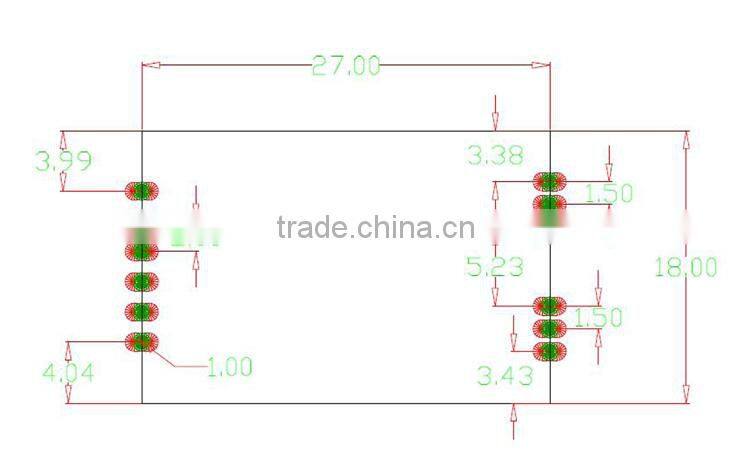

Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
warranty 1 year
