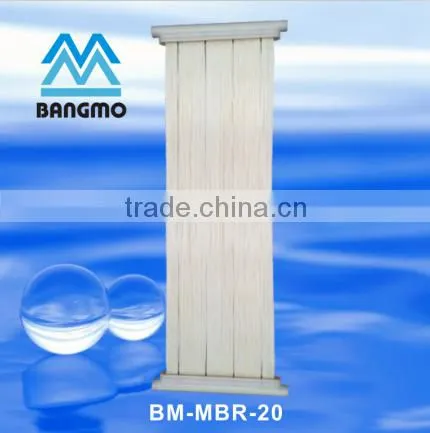

china manufacturer pvdf hollow fiber membrane for waste water
Specification
Name |
pvdf hollow fiber membrane for waste water |
Type |
mbr membrane |
Element size |
as uaual size of 540×1500 mm , receive OEM |
Active membrane area |
20m2 |
Designed membrane flow |
10-20 L/m2h. 25ºC. 0.1Mpa |
ID/OD of hollow fiber |
0.8 mm / 1.3mm |
MWCO |
200000 Dalton |
Membrane components structure |
Outside-in |
Membrane material |
PVDF |
MLSS(mg/l) |
6000-8000 |
Maximum transmembrane pressure |
0.2 Mpa |
Range of PH |
2-10 , Washing: 2-12 |
Back flushing pressure |
0.05-0.1 Mpa |
The yield of water for back flushing |
100-150 L/m2h |
Period of back flushing |
60-100 s |
Period of chemical cleaning |
30-120 d |
Be in motion /operation mode |
External pressure,Total content filtering,cross-Flow Filtration |
Working temperature |
5-40ºC |
|
Microorganism, pathogen
|
99.9 % Removed |
|
Turbidity of output water
|
< 0.1 NTU |

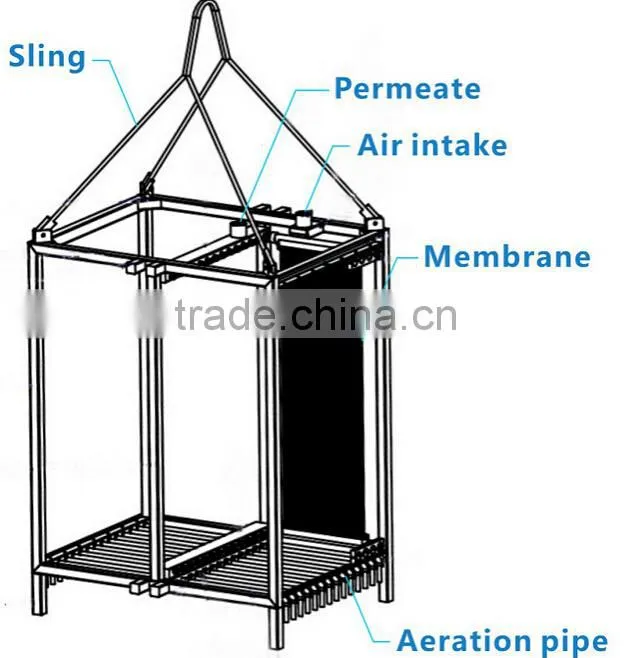

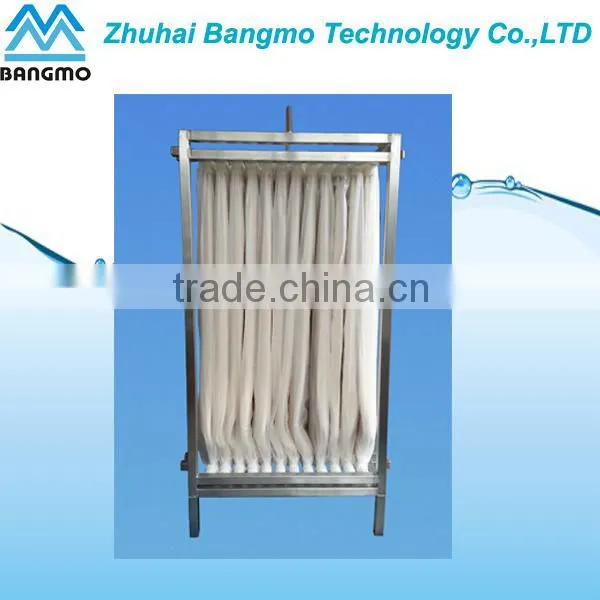

hollow fiber Membrane Bioreactor MBR Membrane for chemical industries
pvdf hollow fiber membrane advantage
1 . High water effluent quality
2. Not much work room square
3.Long service life
4. Low energy consumption
5 .stable water flux
6.high filter rate for moving whey , virus,bacterial etc.
7,Application flexibility and widely range
8. The best choice for any MBR application

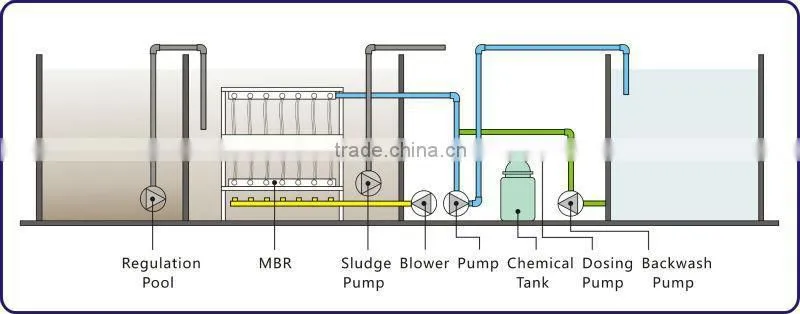

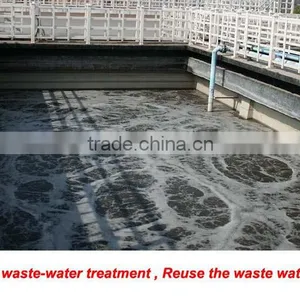

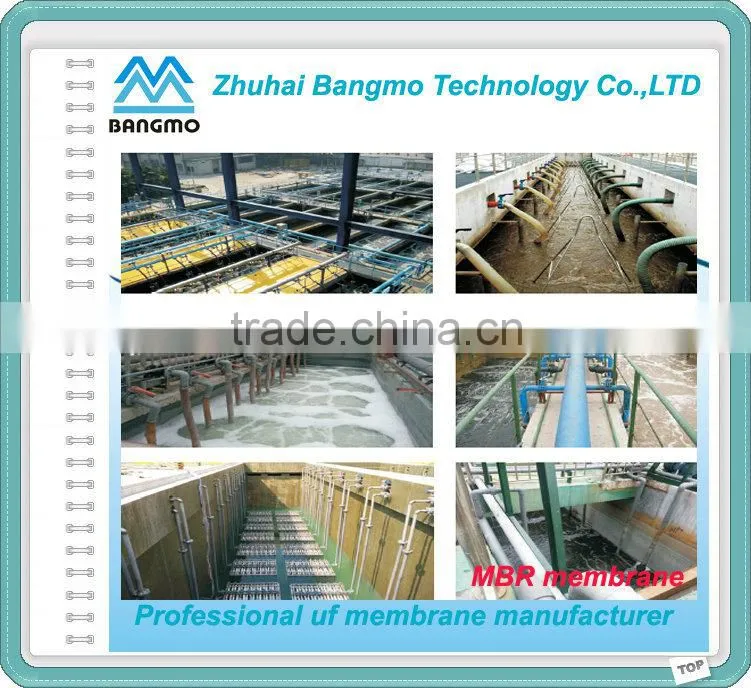

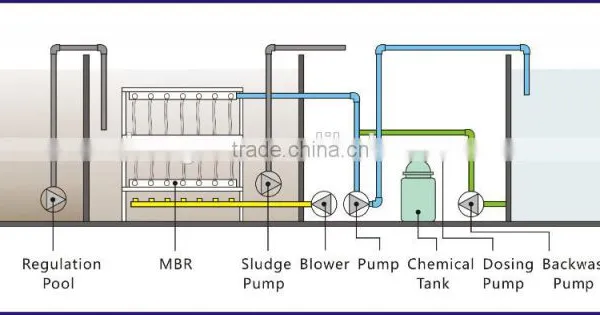

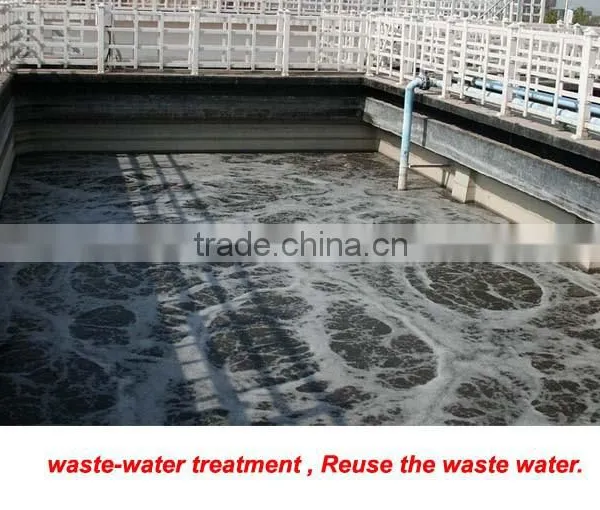

Application for pvdf hollow fiber membrane mbr Waste Water Treatment
industrial water filter
pvdf hollow fiber membrane
Zhuhai bangmo Service
Professional uf membrane experience .
with more than 10 years experience in water treatment field .
well-trained salesman here to serve for you .

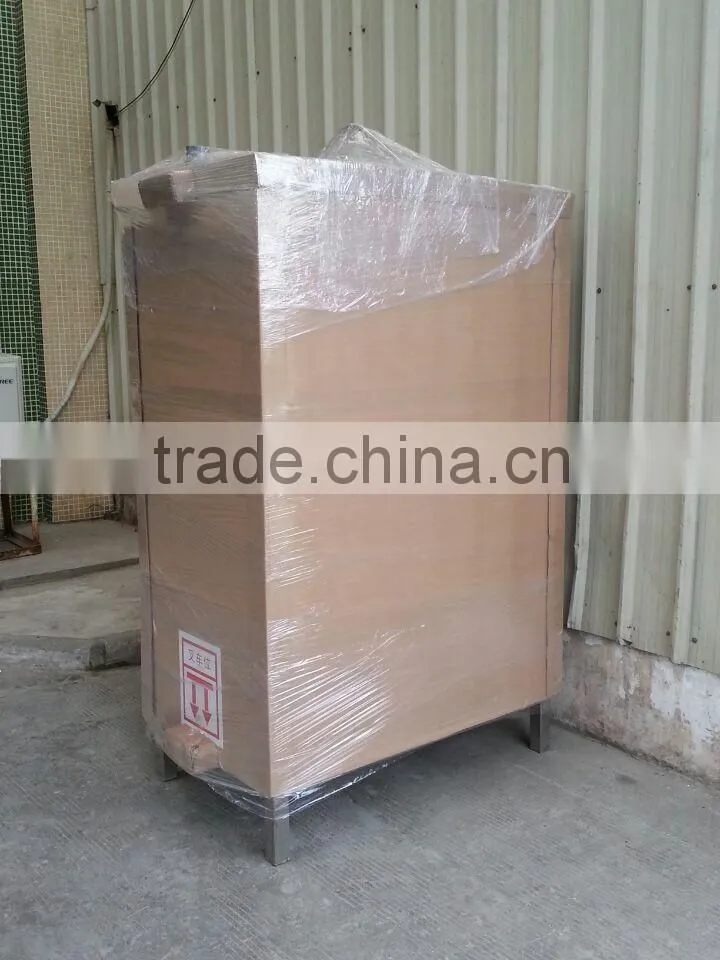

Every hollow fiber uf membrane will be check strictly before ship out .
Reply will be fast .
12 months warranty .
Bangmo is a high-tech enterprise specializing in the production of hollow fiber ultrafiltration membranes,filter ccloth,filter bag ,mbr membrane ,waster water treatment system and other water treatment equipments with high quality Wastewater Treatment System
. Our company is devoted to research, development and manufacture of hollow fiber membranes with high-performance, high-flux, high anti-pollution and low energy consumption. Our main products are PVC hollow fiber UF membranes,PVDF hollow fiber UF membranes, PAN UF hollow fiber membranes and other membranes with various materials and specifications.
Bangmo have several senior technical experts and excellent engineering team. With 20 years manufacture experience and advanced manufacturing equipments, our company has become one of the few PVDF hollow fiber UF membrane manufacturers. And our company will continue to optimize technique and quality, and strive to become a leading and outstanding enterprise in the international market.
Our company products catalog

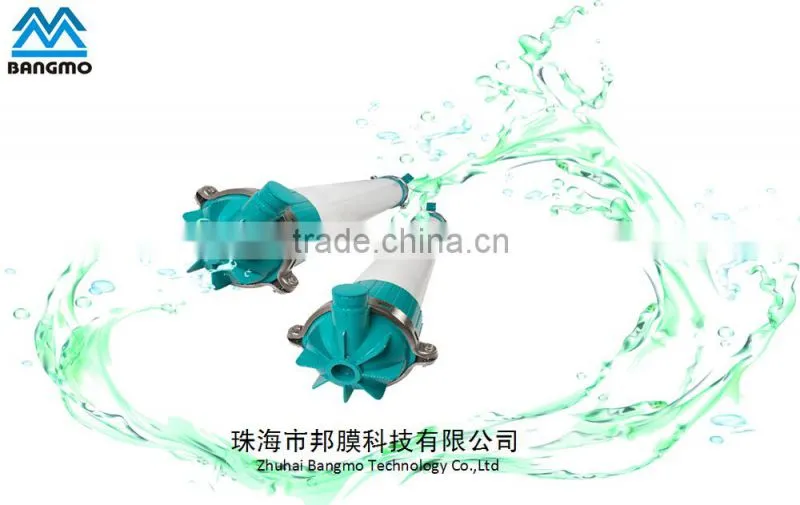

Filter cartridge pvdf hollow fiber membrane
