mbr membrane bioreactor module for waste water treatment plant
1. mbr module Specifications:
Name |
Submerge MBR Membrane |
Filtration Type |
Negative Suction |
Element size |
540×1500 mm |
Membrane Material |
PVDF ultrafiltration membrane |
Membrane Inner Diameter (ID) |
0.8mm |
Membrane Inner Diameter (ID) |
1.3mm |
Membrane Pore Size |
0.1um |
Seal |
Epoxy Resin |
Active membrane area |
20m2 |
Designed membrane flow |
10-20 L/m2h. 25ºC. 0.1Mpa |
Max.Trans membrane pressure(TMP) |
0.05 MPA |
MWCO |
200k |
Membrane components structure |
Outside-in |
Weight |
13 kg/pcs |
PH Range |
5-9 |
MLSS(mg/l) |
6000-8000 |
Aeration |
3Nm3/h |
Wash PH range |
5-9 |
Max.Back flushing pressure |
0.1 Mpa |
The yield of water for back flushing |
100-150 L/m2h |
Period of back flushing |
60-100 s |
Period of chemical cleaning |
30-120 d |
Be in motion /operation mode |
External pressure,Total content filtering,cross-Flow Filtration |
Working Sequence |
Filtration 8 minutes, Stop 2 minutes . and then Backwash for 2~3 minutes |
Working temperature |
5-40ºC |
2. mbr module application
1) Treatment and reuse of domestic waste water and reclaimed water (housing estate, hotel and sewage treatment plant)
2) Treatment of wastewater in food processing factories (bean products factory, cake factory)
3) Treatment of wastewater in beverage factory (liqueur factory, beer factory, etc)
4) Medical and chemical industrial wastewater treatment
5) Treatment of wastewater in textile and paper factories, and other high COD industrial wastewater
pvdf hollow fiber membrane
3. Mbr module
Membrane with high mechanical strength, and the membrane filament is not easy to break in the process of high strength aeration and chemical cleaning.
The chemical stability of membrane is very good and can be washed using the strong acid and alkali.
Filter performance well .
Low maintenance cost
Rugged mental shelf design
high grade hollow uf fiber raw material and sophisticated technology

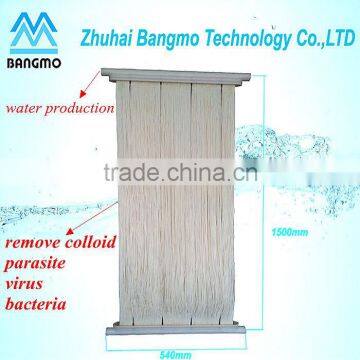

4.MBR module picture show:

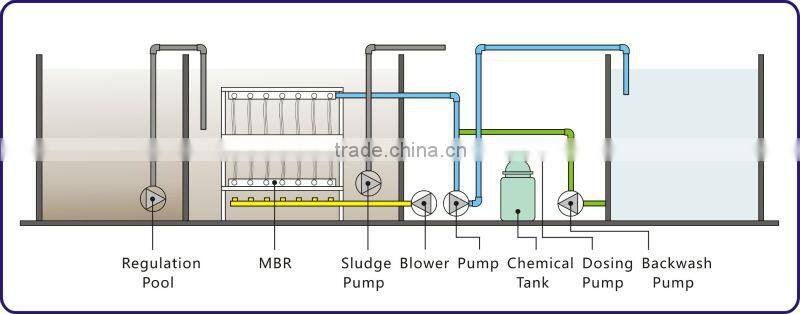

5.MBR module WORK PROCESS:
Package
Shipment
Zhuhai Bangmo Technology Co.,Ltd is a professional and high tech trading company with 21 histories based in Zhuhai, which specializing in providing hollow fiber ultrafiltration membranes.
We are devoted to research, development and manufacture hollow fiber membranes with high-performance, high-flux, high anti-pollution and low energy consumption.
e

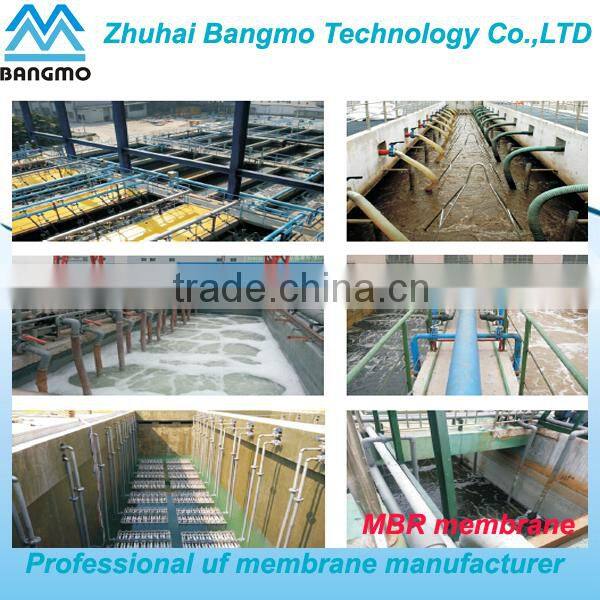

MBR module application showcase
Dears, any questions, please feel free to contact me, reply will be fast.
Welcome !
Evey Huang
Skype: Evey Huang
What's app: +86 13750069454
We chat: lan0257456789
