waste water treatment mbr membrane 100L/d micro filtration membrane water pump
Specifications:
Name |
MBR MEMBRANE |
Element size |
540×1500 mm |
Active membrane area |
20m2 |
Designed membrane flow |
10-20 L/m2h. 25ºC. 0.1Mpa |
ID/OD of hollow fiber |
0.8 mm / 1.3mm |
MWCO |
200000 Dalton |
Membrane components structure |
Outside-in |
Membrane material |
PVDF |
MLSS(mg/l) |
6000-8000 |
Maximum transmembrane pressure |
0.2 Mpa |
Range of PH |
2-10 , Washing: 2-12 |
Back flushing pressure |
0.05-0.1 Mpa |
The yield of water for back flushing |
100-150 L/m2h |
Period of back flushing |
60-100 s |
Period of chemical cleaning |
30-120 d |
Be in motion /operation mode |
External pressure,Total content filtering,cross-Flow Filtration |
Working temperature |
5-40ºC |
micro filtration membrane
What is MBR membrane ?

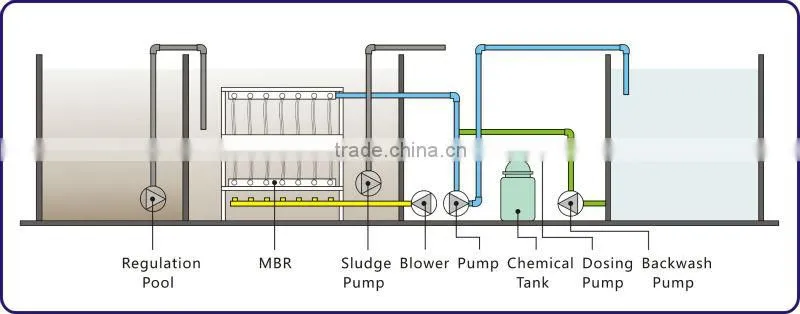

Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or
ultrafiltration with a suspended growth bioreactor or ultrafiltration with a suspended growth
bioreactor, and is now widely used for municipal and industrial wastewater treatment.
Membrane Bioreactor (MBR) systems offer several operational and economic advantages
compared to traditional wastewater treatment plants. MBR systems eliminate the need for
secondary clarifiers and tertiary treatment. This allows to increased performance with a smaller
footprint.
Wastewater Management
Application fields of MBR in Wastewater Management
micro filtration membrane
1) Treatment and reuse of domestic waste water and reclaimed water (housing estate, hotel and sewage treatment plant)
2) Treatment of wastewater in food processing factories (bean products factory, cake factory)
3) Treatment of wastewater in beverage factory (liqueur factory, beer factory, etc)
4) Medical and chemical industrial wastewater treatment
5) Treatment of wastewater in textile and paper factories, and other high COD industrial wastewater
Wastewater Management
Install mbr membrane
membrane installation and precautions

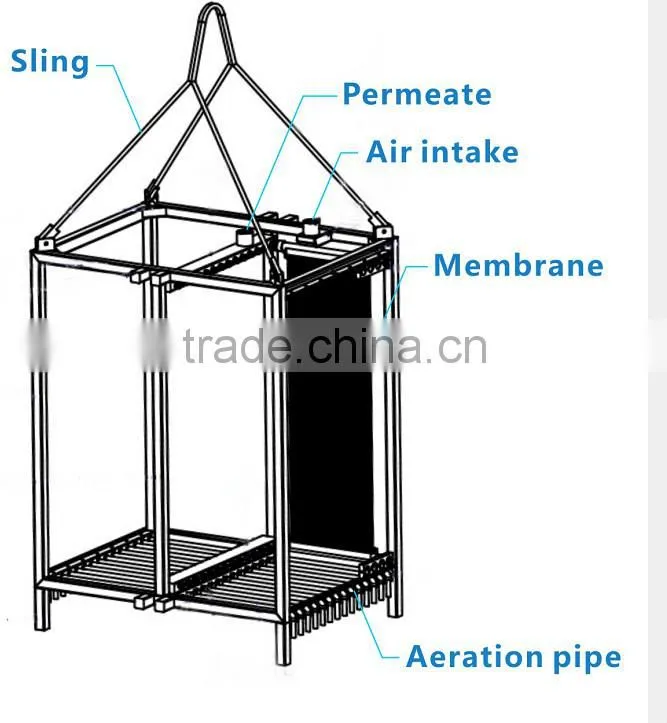

When MBR membrane module to be installed on the frame , please follow the step.
1. Remove the package of MBR membrane from box . ( Since we use double package , in order to prevent contamination , it is recommended to open both ends of the inner bag installed during installation. )
2. The MBR membrane module mounted to the frame of the diaphragm base , vertically rising MBR membrane module . ( When transporting MBR membrane , please hand side of the other end of the diaphragm or the mandrel . )
3. The membrane surface with the white powder which used to maintain membrane function performance , is non-toxic and pollution-free solid .
micro filtration membrane
4. The MBR membrane fix to the frame.
5. Remove the inner bag MBR membrane module .
micro filtration membrane
6. Use soapy water to check for leaks , etc .
7. Once confirmed no leak , the frame moves to infiltrate position, and then set the framework for water connections , air inlet tube and pipe production unit measured , the air tube .
8. The framework to soak in the activated sludge tank and completely submerged membrane with water .
Advantage for mbr membrane
micro filtration membrane
1. membrane with high mechanical strength, and the membrane filament is not easy to break in the process of high strength aeration and chemical cleaning.
2. The chemical stability of membrane is very good and can be washed using the strong acid and alkali.
3. Filter performance well .
ultrafiltration membrane
Zhuhai Bangmo is a high-tech enterprise specializing in the production of hollow fiber ultrafiltration membranes. Our companyis devoted to research, development and manufacture of hollow fiber membranes
with high-performance, high-flux, high anti-pollution and low energy consumption. Our main products are PVC hollow fiberUF membranes,PVDF hollow fiber UF membranes, PAN UF hollow fiber membranes and other
membranes with various materials and specifications.
Bangmo have several senior technical experts and excellent engineering team. With 20 years manufacture experience
and advanced manufacturing equipments, our company has become one of the few PVDF hollow fiber UF membrane
manufacturers. And our company will continue to optimize technique and quality, and strive to become a leading and
outstanding enterprise in the international market.
