Specifications
Name |
Submerged MBR Membrane |
Filtration Type |
Negative Suction |
Element size |
540×1500 mm |
Membrane Material |
PVDF |
Membrane Inner Diameter (ID) |
0.8mm |
Membrane Inner Diameter (ID) |
1.3mm |
Membrane Pore Size |
0.1um |
Seal |
Epoxy Resin |
Active membrane area |
20m2 |
Designed membrane flow |
10-20 L/m2h. 25ºC. 0.1Mpa |
Max.Trans membrane pressure(TMP) |
0.05 MPA |
MWCO |
200k |
Membrane components structure |
Outside-in |
Weight |
13 kg/pcs |
PH Range |
5-9 |
MLSS(mg/l) |
6000-8000 |
Aeration |
3Nm3/h |
Wash PH range |
2-12 |
Max.Back flushing pressure |
0.1 Mpa |
The yield of water for back flushing |
100-150 L/m2h |
Period of back flushing |
60-100 s |
Period of chemical cleaning |
30-120 d |
Be in motion /operation mode |
External pressure,Total content filtering,cross-Flow Filtration |
Working Sequence |
Filtration 8 minutes, Stop 2 minutes . and then Backwash for 2~3 minutes |
Working temperature |
5-40ºC |

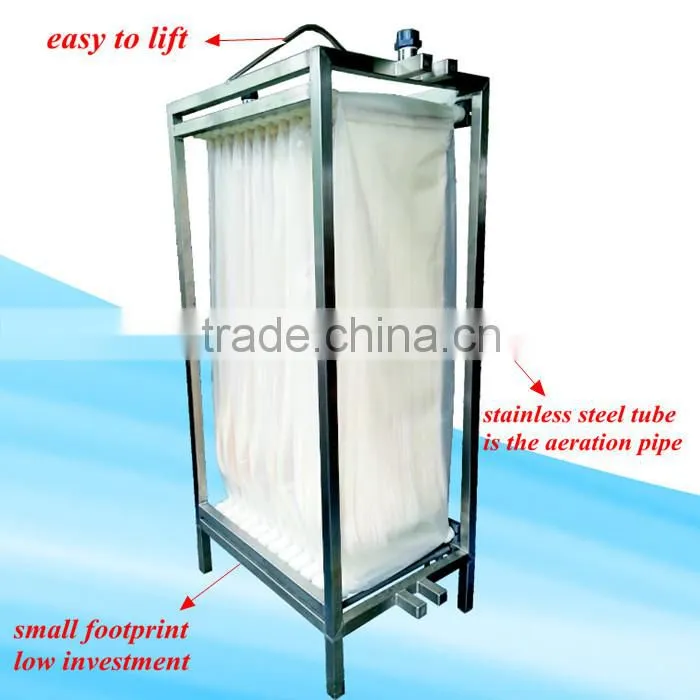

PVDF membrane fiber outside-in filtration

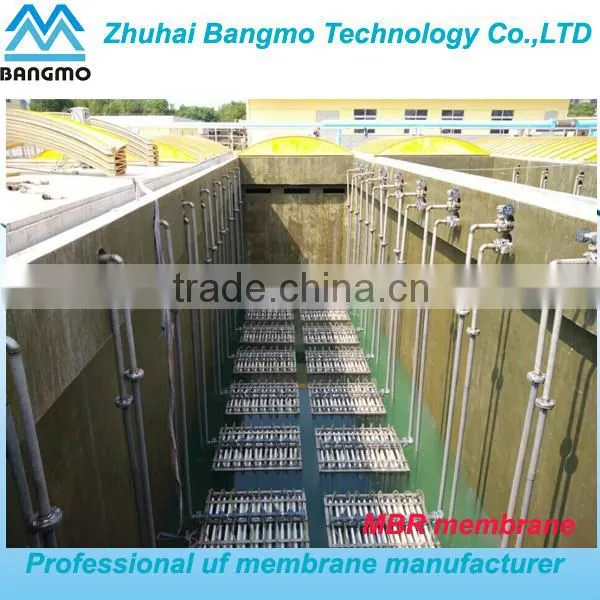

MBR Membrane work process
Field of application: mbr
waste water treatment

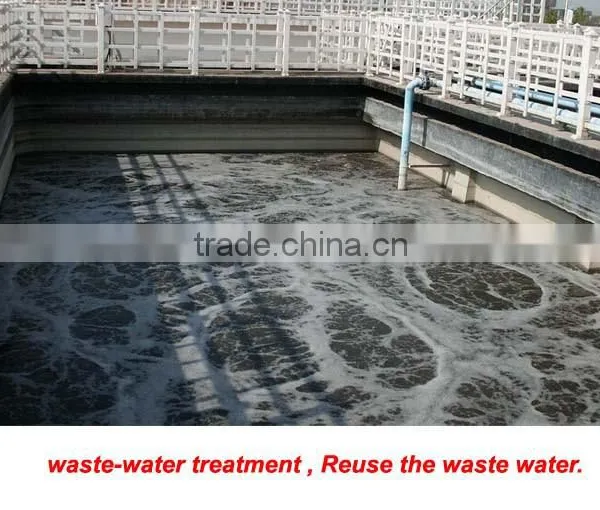

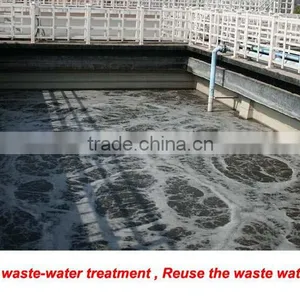

1) Treatment and reuse of domestic waste water and reclaimed water (housing estate, hotel and sewage treatment plant)
2) Treatment of wastewater in food processing factories (bean products factory, cake factory)
3) Treatment of wastewater in beverage factory (liqueur factory, beer factory, etc)
4) Medical and chemical industrial wastewater treatment
5) Treatment of wastewater in textile and paper factories, and other high COD industrial wastewater
Our mbr membrane module advantage
Big specific surface area
Easy installation & maintenance
Smaller footprint,
Higher MLSS retention
Lower investment
Lower operation cost
High Flux Anti Fouling
Long Life
Good Tensile Strength
mbr mbr mbr mbr
| Company Introduce | ||||||||
| Zhuhai Bangmo is a high-tech enterprise specializing in the production of hollow fiber ultrafiltration ation membranes,uf filter elements , filter cloth, mbr membrane module etc. Water treatment equipments. Our company is devoted to research, development and manufacture of hollow fiber membrane with with high-performance, high-flux, high anti-pollution and low energy consumption. Our main products are PVC hollow fiber UF membranes,PVDF hollow fiber UF membranes, PAN UF hollow fiber membranes and other membranes with various materials and specifications. Bangmo have several senior technical experts and excellent engineering team. With 22 years manufacture experience and advanced manufacturing equipments, our company has become one of the few best PVDF hollow fiber UF membrane manufacturers. | ||||||||
| Why choose Zhuhai Bangmo? | ||||||||
|
1. 22 years concentrate on building our high class uf membrane 2. Professional engineer team here serve for you 3. As manufacturer , we can supply you high quality uf membrane filter at competitive price 4. Good after service with 12 months . 5. Develop search a new uf technology to find a efficiency uf and high quality ultrafiltration membrane 6. Enhancement in the membrane life | ||||||||
| Our Service | ||||||||
|
1.OEM/ ODM welcome . 2. We can provide various dimension, different membrane material like PVC, PAN, PVDF etc, various filtration precision, different flow rate and performance well UF membrane module; 3.Professional salesman ,reply will fast . 5.Our experienced engineer will give you the suggestion based on the real situation . 6.12 months warranty under our manual handle 7. we are focused to provide our clients excellent quality ultrafiltration membrane | ||||||||
mbr waste water treatment
