Specifications
paper filter1.Certification:ISO9001
2.Quality:high
3:Factory direct price
4.Applicance:fume filter

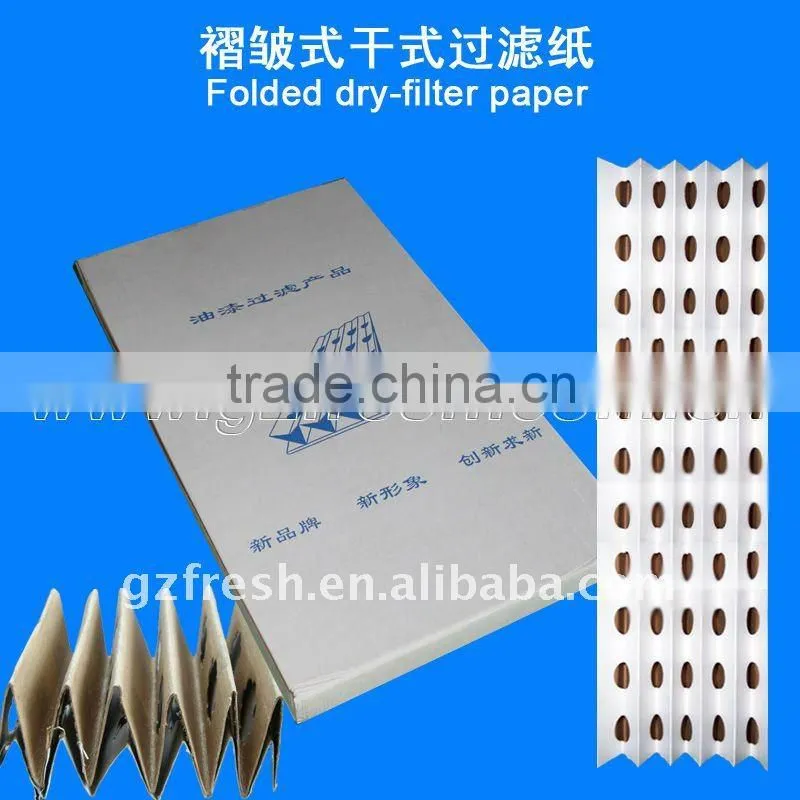

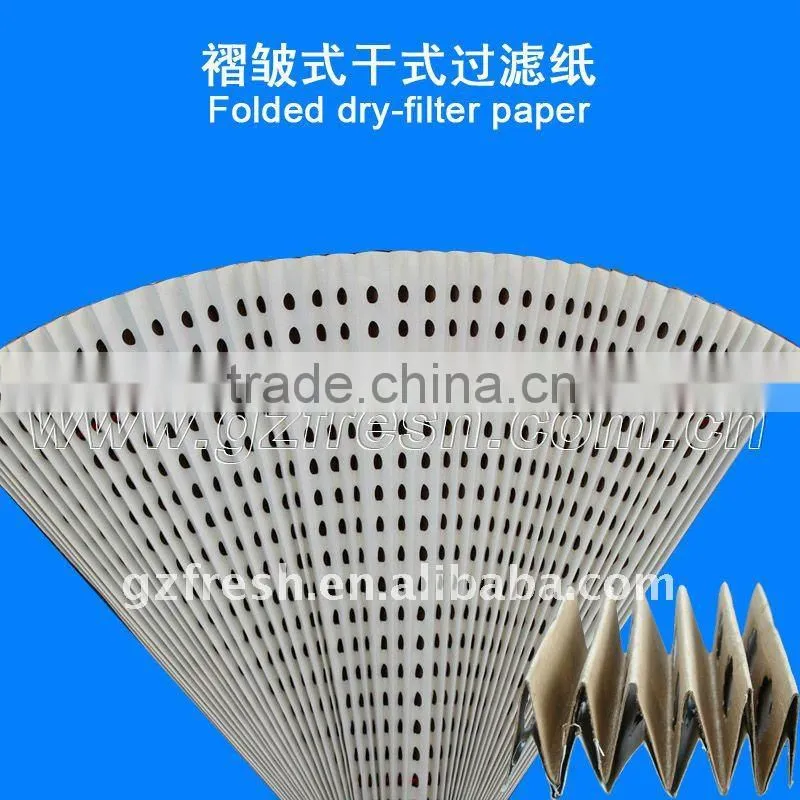

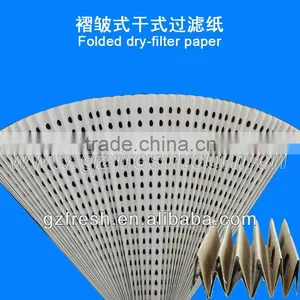

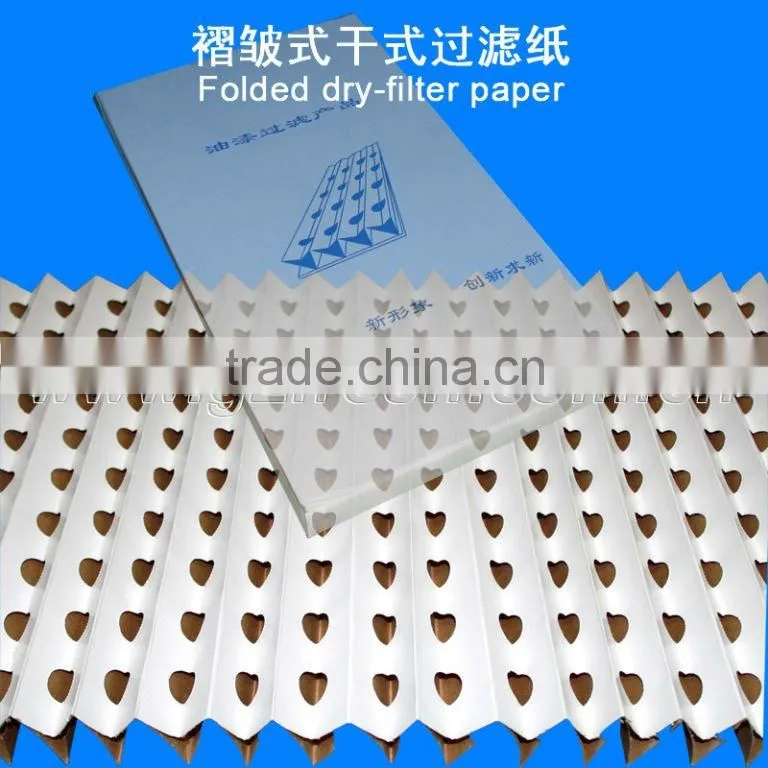

lowest price fold paper filter,spary booth filter,paint paper filter for spary booth
New environmental protection product. It makes the spray-paint rid of water, no pollution.
Principle: base on the inertial separation principle.
Force the load flow change the direction many times so that the particles which heavier than the air will be absorbed, and the air will keeping moving forward. When air get through the holes freely, the particles will be absorbed on the folded area till it is saturated.
·Folded paperboard will increase with a rise in saturation, efficiency can reach 98%(when solid content in gas is high)
·The design is good for the distribution of the speed.
·Long-span than other paper filter,up to six times longer
·Particulars holding can reach 18Kg/m2
Non-flammability class can reach DIN53438F1/K1
·Application: filter the particulars of the solid and liquid in the air, and reach the uniform flow effect.
·Low resistance and high efficiency
Standard dimension: 6mm*1m*10m
2 layers of heavy ‘kraft’ paper, punched pleated and glued together, with a polyester layer added for higher filtration efficiency.
Application
avoid tar,coal ,and dust from high-temperature dryer
Filter material and features;
Media is special sythetic fiber
It is durable in high temperature environment
Fiber glass won’t be broken or shed
Temp.Resistance:180°C
Served in roll or piece
Specification
avoid tar,coal ,and dust from high-temperature dryer
Filter material and features;
Media is special sythetic fiberIt
Type |
Dimension |
Rated air velocity(m/s) |
Initial pressure drop (pa) |
Rated air flow (m3/h) |
Filter efficiency(%) |
Dust holding capacity(g/m2) |
Final pressure(Pa) |
EN779 |
Weight(g/m2 |
package |
||
Length(m) |
Height(m) |
Thickness(mm) |
||||||||||
FRS-HT-40 |
20 |
0.8/1.6 |
10 |
1.0 |
25 |
3600 |
88 |
550 |
100 |
G4/EU4 |
250 |
PE bag |
FRS-HT-40W |
20 |
0.8/1.6 |
20 |
1.0 |
45 |
3600 |
90 |
580 |
180 |
G4/EU4 |
280 |
PE bag |
Special size available request.
