Specifications
pocket filter1.Large dust holding capacity
2. 5 Pcs MOQ
3.factory price

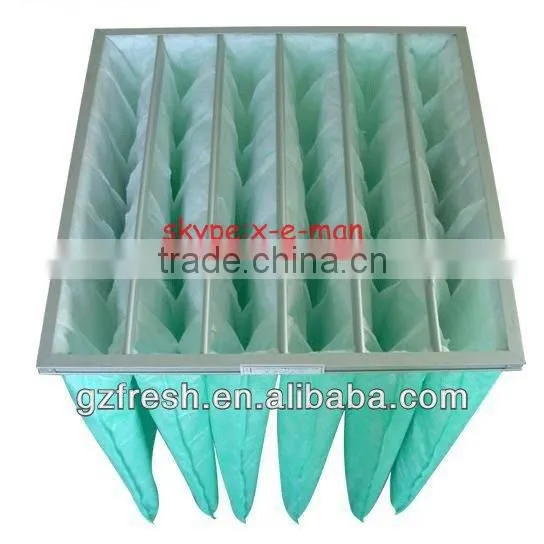

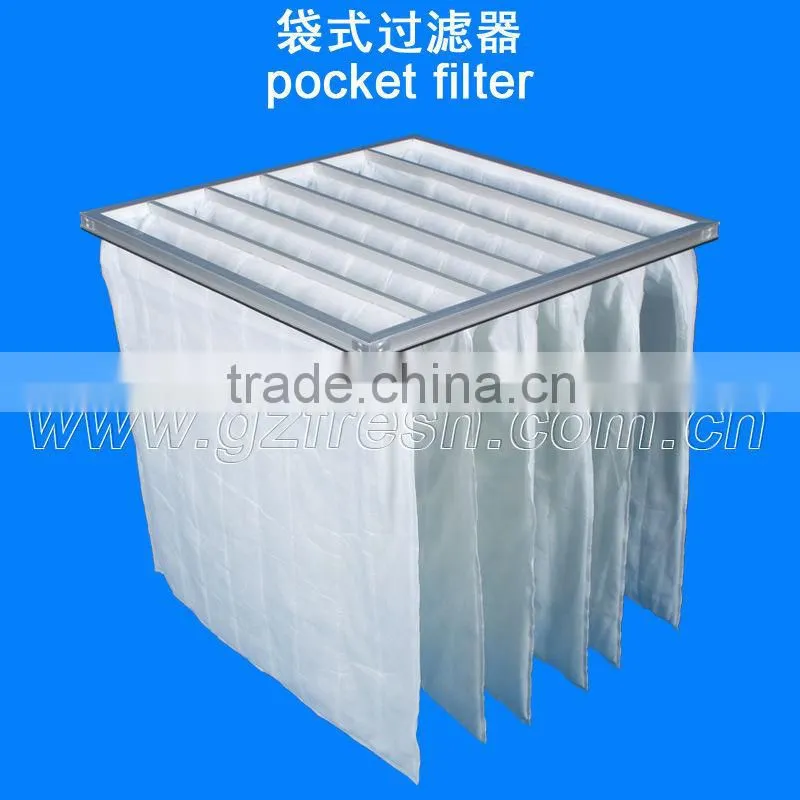

Factory price!!! fiberglass pocket filter/bag filter/ pocket filter for clean room
Please Note: Dear,we can provide the free sample,if you are interested in our products.
1.Description for fiberglass bag filter
Made by polymer and compound fabrics. The fist crude fiber catch bigger dust in the air, the thin guides the wind through the bag filter in a mush uniformly way and makes a lower resistance, longer application life, good function and good looking bag filter.
We have two kinds of pocket filter media, double layer and single layer
2.Performance for fiberglass bag filter
Application: The air pre-filtration system for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other filtration systems which are in high need of clean air.
Type: pocket filter
Frame: aluminum alloy or stainless steel
Media: Synthetic fiber
EN779 class: F5,F6,F7,F8,F9
Temp. Resistance:100 degree Celsius
Humidity: 100%
Speciality: Galvanized iron or aluminum alloy frame
Between each pocket there is a metal stick to make frame firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.
Ultrasonic sealing make the filter more strong and not easy to break.
Adopted fine synthetic fiber instead of some fiberglass material.
Material is made of antistatic fiber, large dust holding capacity and long working life.
Pocket mesh efficiency has five different types for choice: 35%,45%,65%,85%and 95%
3.Specification for fiberglass bag filter
Type |
Dimensions(mm) |
Rated air flow(m3/h)&Pa |
Filtering area |
EN779 |
Color |
|||||
Width |
Height |
Depth |
Bags |
|||||||
35% |
592 |
592 |
600 |
6 |
2550/45 |
3400/55 |
4250/75 |
4.4 |
F5 |
White |
290 |
592 |
600 |
3 |
1250/45 |
1700/55 |
2100/75 |
2.2 |
F5 |
||
592 |
592 |
600 |
8 |
2550/40 |
3400/50 |
4250/70 |
5.6 |
F5 |
||
290 |
592 |
600 |
4 |
1250/50 |
1700/50 |
2100/75 |
2.8 |
F5 |
||
Special sizes available upon request.
5.Why Choose Us???
Our factory
Our Certificate
To be made pocket filter
Welcome to contact me,best price&best service for you.
