Specifications
High Quality of Self Support Twisted Drop Wire:1.Factory Competitive price.
2.Timely delivery.
3.ISO9001, CE, ROHS

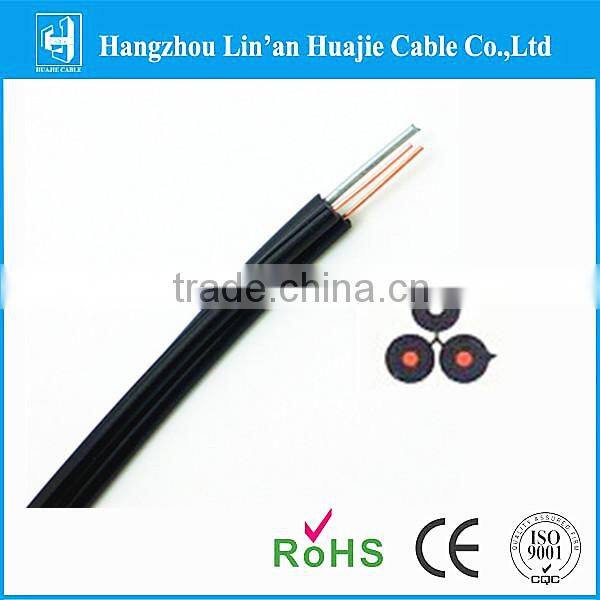

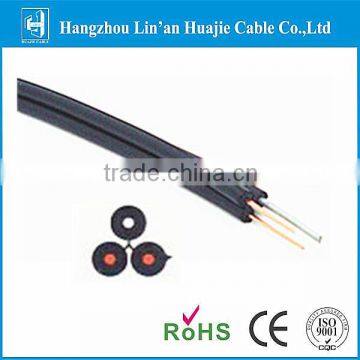

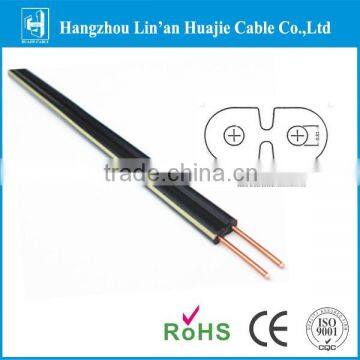

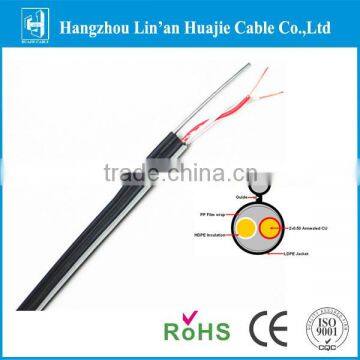

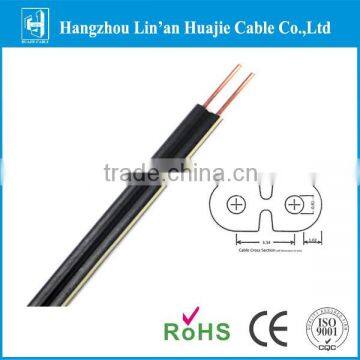

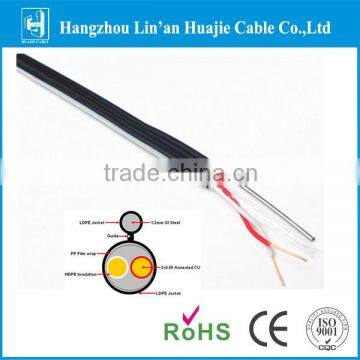

High Quality of Self Support Twisted Drop Wire:
High performance telephone wire Drop wires have good quality and competitive price.
Inner Conductor: Bare Copper or CCS,CCA
Insulation: PE or PVC
Cores Colour: as per Customer's request
Jacket : PVC or PE
Jacket Colour: Black or gray or According to the Customer requirments.
Description:
| Type | Solid Copper/CCS |
| Diameter of conductor (mm) | 0.65± 0.01 |
| Tensile strength (N/mm2) minimum | >200 |
| INSULATION | |
| Type | High Density Polyethylene (HDPE) |
| Insulation Thickness (mm) | 0.35 ± 0.02 |
| Colors of Insulated Conductors | White & Red |
| Tensile strength (N/mm2) minimum | >12.5 |
| MESSENGER | |
| Type | Galvanized Steel (Solid) |
| Diameter | 1.2 ± 0.02 |
| Breaking Load (kg.f) minimum | 95 - 105 |
| Tensile strength (N/mm2) minimum | 800 - 900 |
| SHEATH | |
| Type | LDPE / PVC |
| Thickness of Sheathing (mm) minimum | 0.6 ± 0.05 |
| Color | Black |
| Tensile strength (N/mm2) minimum | >12.5 |
| Elongation (%) minimum | >400 |
Factory Show :
Cetification :
Product list :
|

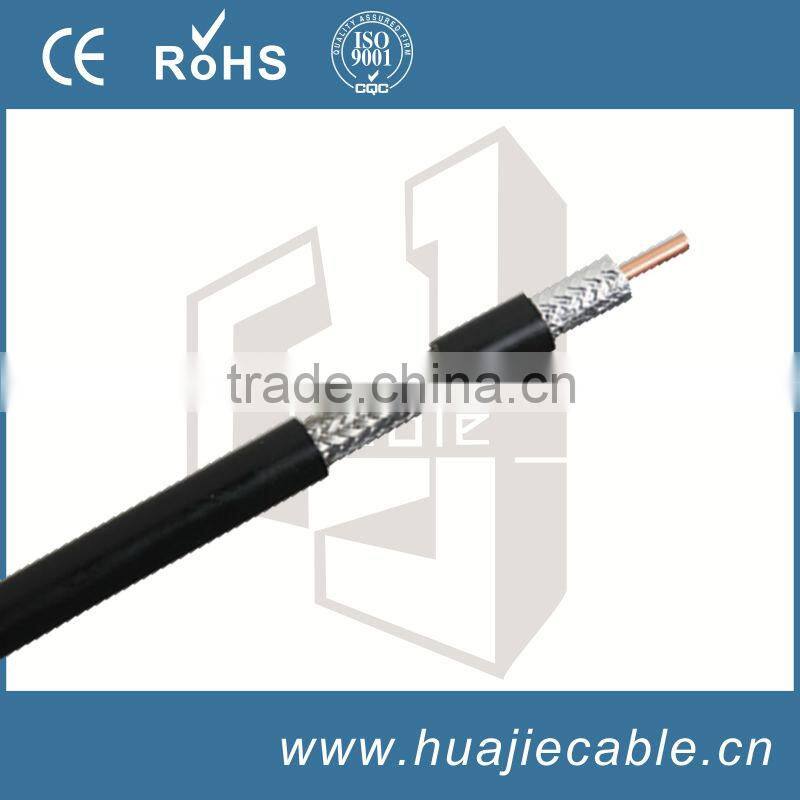

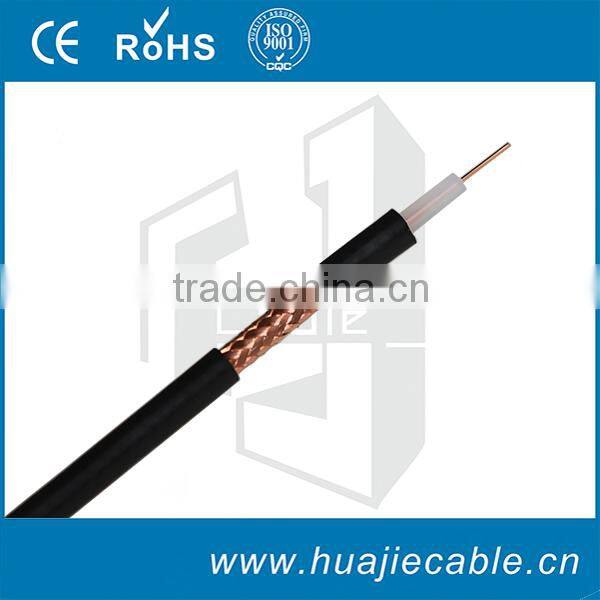

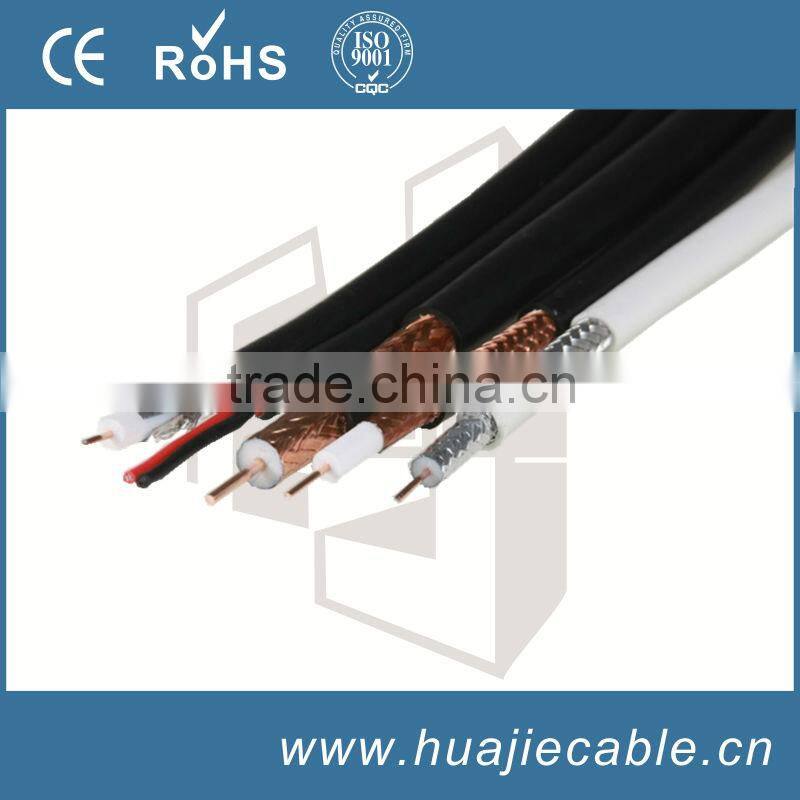

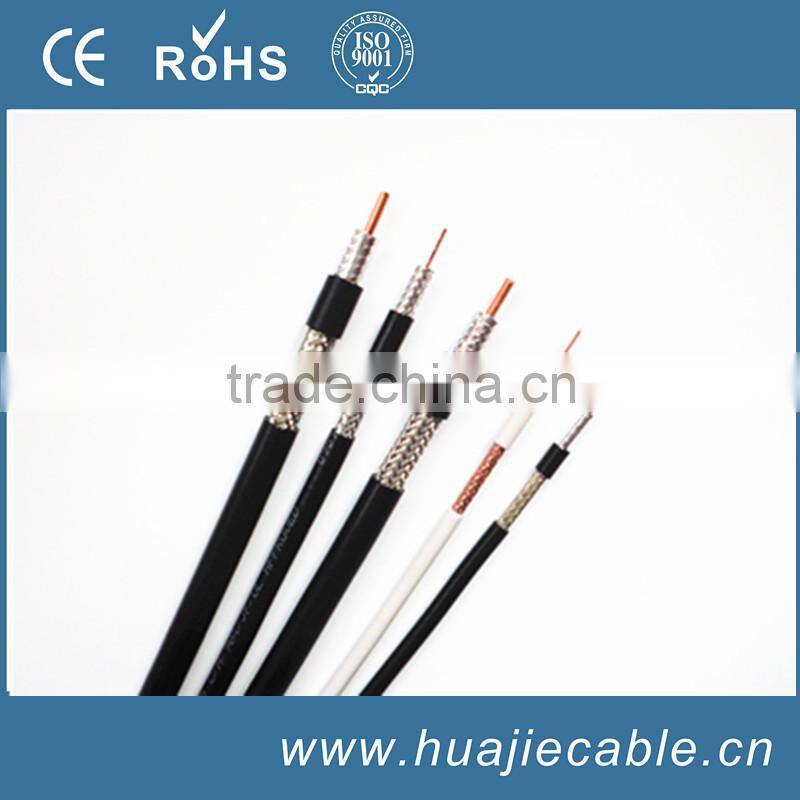

RG58
|
RG59
|

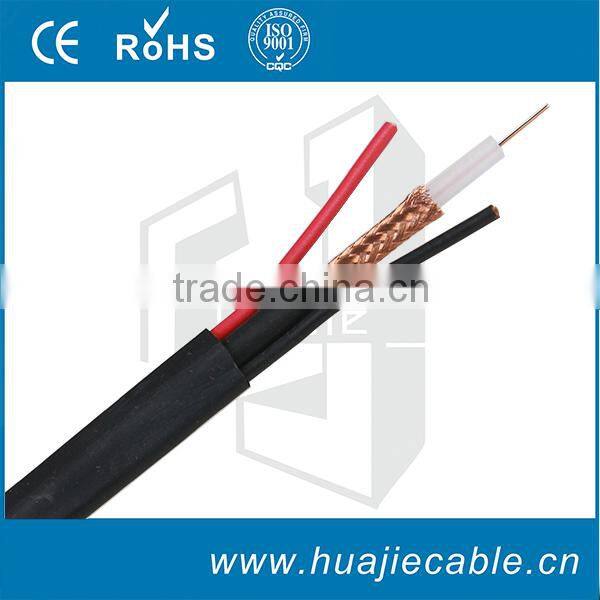

RG59+POWER |
|
RG6
|
RG11
|

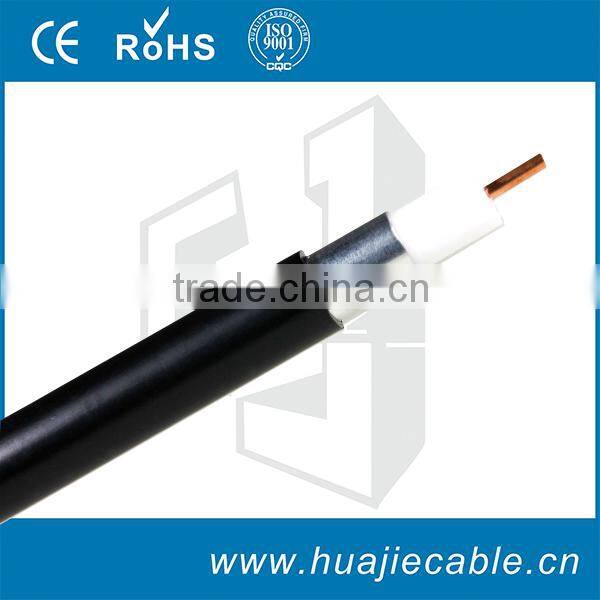

QR500/QR540
|
|
LMRCABLE
|

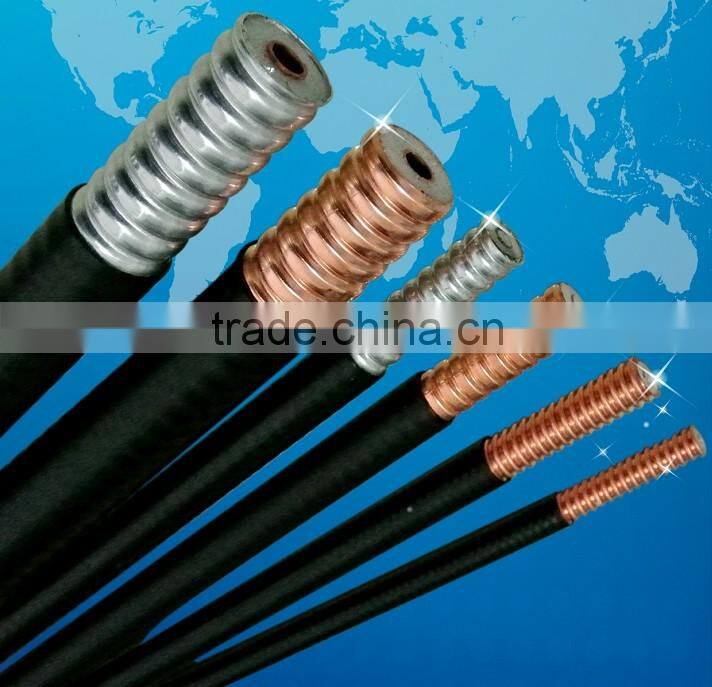

FEEDERCABLE
|

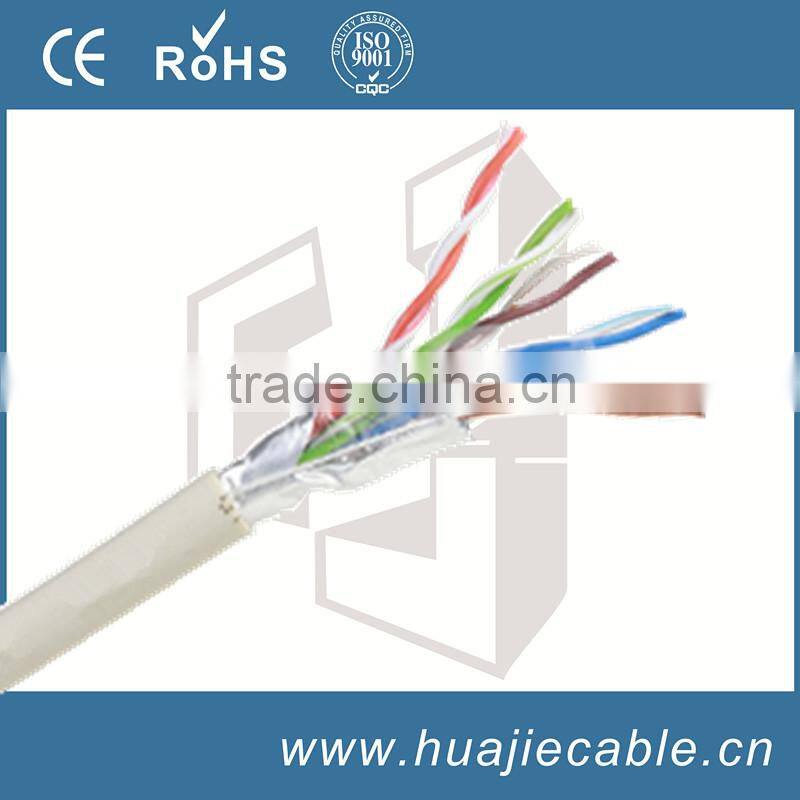

UTPCABLE
|
Drop Wire |

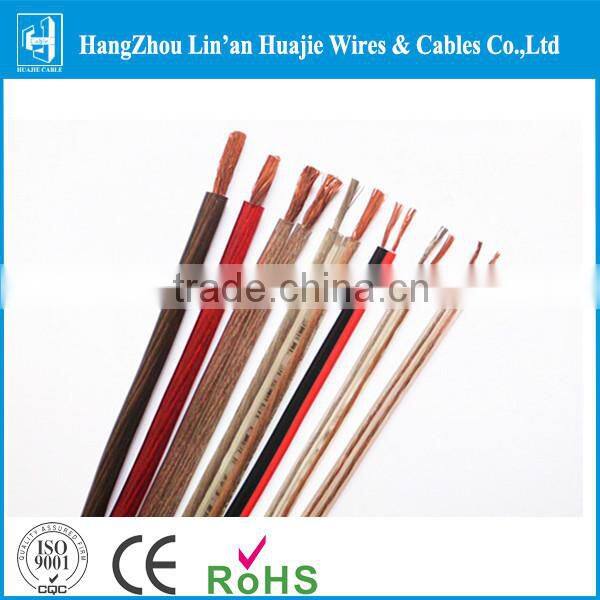

Speaker Cable |

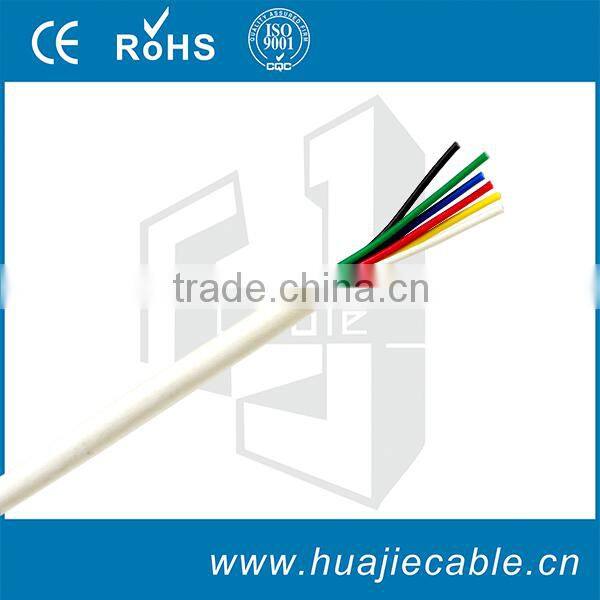

Alarm Cable |
|
|
|
Why us ?
1. We are the professional coaxial cable manufacturer, so we have rich production experience on the cables;
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on CE, ROHS, 3C, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
