Specifications
telephone cables drop wires :1.Factory Competitive price.
2.Timely delivery.
3.ISO9001, CE, ROHS
telephone cables drop wires :
High performance telephone wire have good quality and competitive price.
Telephone wire
Inner Conductor: Bare Copper or CCS,CCA
Insulation: PVC or PE
Cores Colour: as per Customer's request
Jacket : PVC
Jacket Colour: White or gray or According to the Customer requirments.
Description:
1P, 2*1/0.50 Copper or CCS, OD: 2.6MM
2P, 4*1/0.50 Copper or CCS, OD: 3.2MM
3P, 6*1/0.50 Copper or CCS, OD: 3.6MM
4P, 8*1/0.50 Copper or CCS, OD: 4.1MM
5P, 10*1/0.50 Copper or CCS, OD: 4.7MM
6P, 12*1/0.50 Copper or CCS, OD: 4.9MM
7P, 14*1/0.50 Copper or CCS, OD: 5.2MM
8P, 16*1/0.50 Copper or CCS, OD: 5.4MM
Factory Show :
Cetification :
Packing :
Product list :
RG59 |
Specification |
|
|
Inner Conductor |
0.643/0.813mm BC/CCS |
Dielectric |
3.66mm Foam PE |
|
Shield |
Al Foil/Bonded Foil |
|
Braiding |
40%-95%Braiding |
|
Jacket |
6.0mm PVC |
|
RG59+Power |
Specification |
|
|
Inner Conductor |
0.64/0.81mm BC/CCS |
Dielectric |
3.66mmSolid PE/ Foam PE |
|
Shield |
Al Foil/Bonded Foil |
|
Braiding |
40%-95%Braiding |
|
Jacket |
6.0mm PVC |
|
power |
2core*0.75mm2 CCA/CU |
|

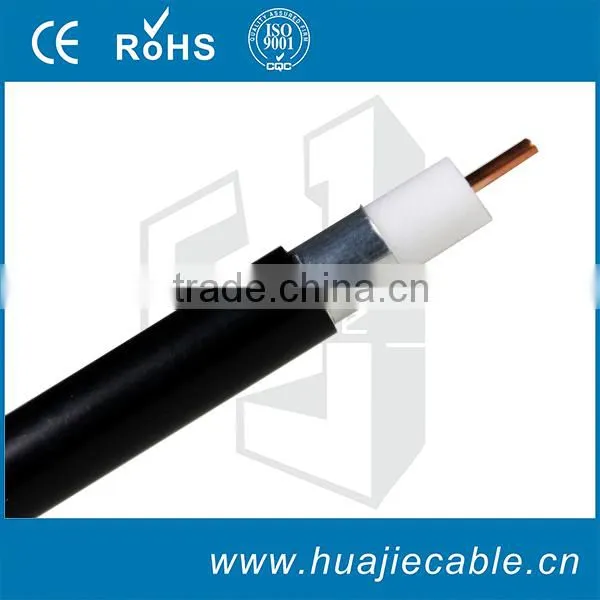

RG6 |
Specification |
|
|
Inner Conductor |
1.02mm Cu/CCS |
Dielectric |
4.57mm Foam PE |
|
Shield |
Bonded Foil |
|
Braiding |
40%-95%Braiding |
|
Jacket |
6.91mm PVC |
|
RG11 |
Specification |
|
|
Inner Conductor |
1.63mm Cu/CCS |
Dielectric |
7.11mm Foam PE |
|
Shield |
Bonded Foil |
|
Braiding |
40%-95%Braiding |
|
Jacket |
10.02mm PVC |
|
QR500 |
Specification |
|
|
Inner Conductor |
2.77mm BC/CCA |
Dielectric |
11.43mm Foam PE |
|
Shield |
0.25-0.6mm Al Tube(thickness) |
|
Jacket |
14.22mm PE |
|
QR540 |
Specification |
|
|
Inner Conductor |
3.15mm BC/CCA |
Dielectric |
13.3mm Foam PE |
|
Shield |
0.25-0.6mm Al Tube(thickness) |
|
Jacket |
15.49mm PE |
|

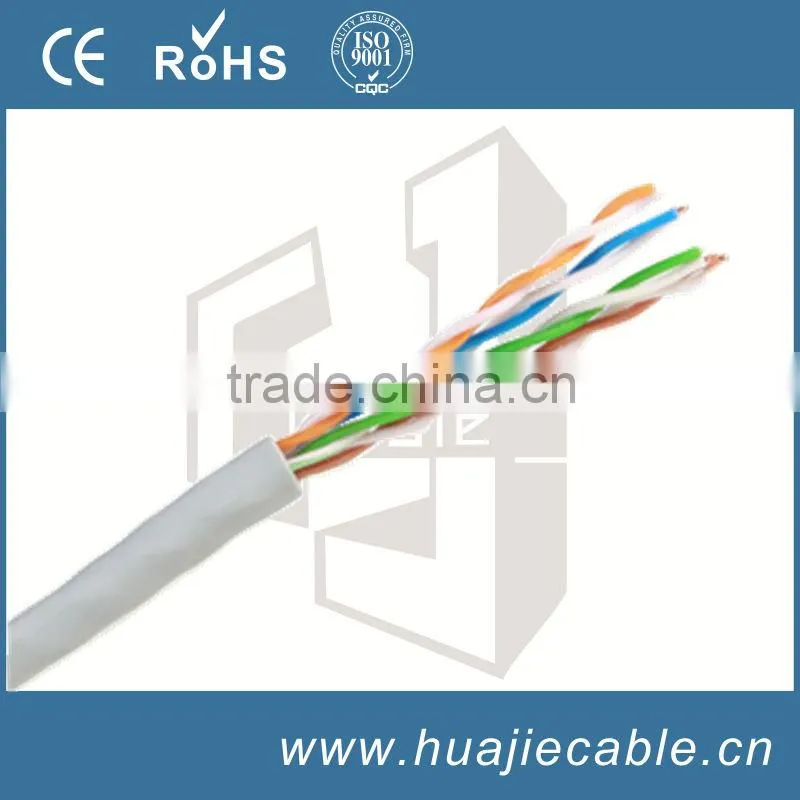

UTP CAt5e |
Specification |
|
|
Inner Conductor |
4Pair *0.51mm BC/CCA |
Dielectric |
0.92mm Foam PE |
|
Jacket |
5.0mm PVC White/Gray |
|

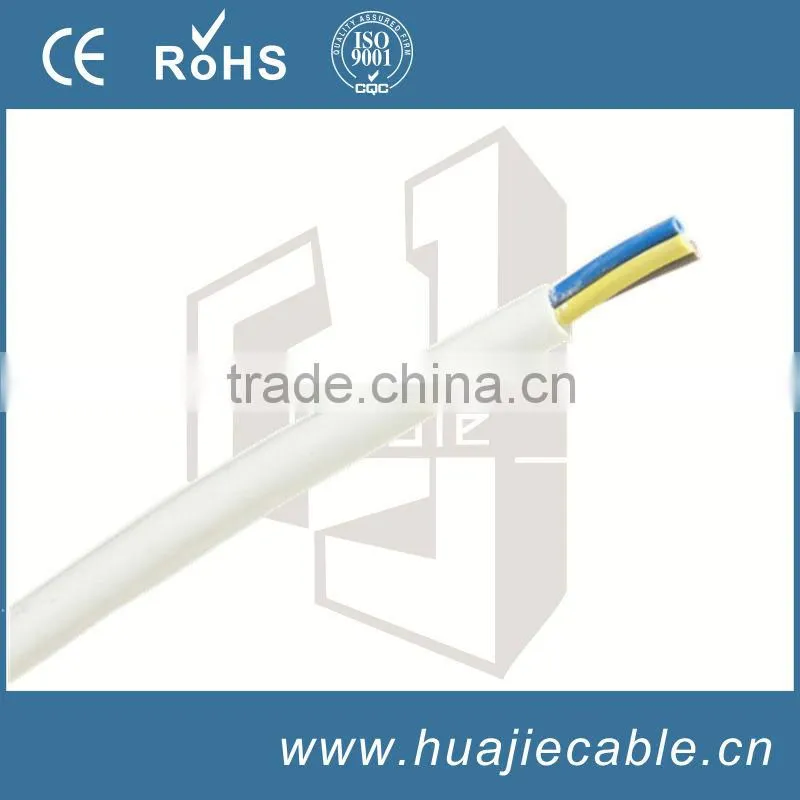

Power Cable |
Specification |
|
|
Inner Conductor |
0.75,1.0,1.5,2.5,4.0mm2 BC/CCA |
Dielectric |
PVC |
|
Jacket |
PVC White |
|

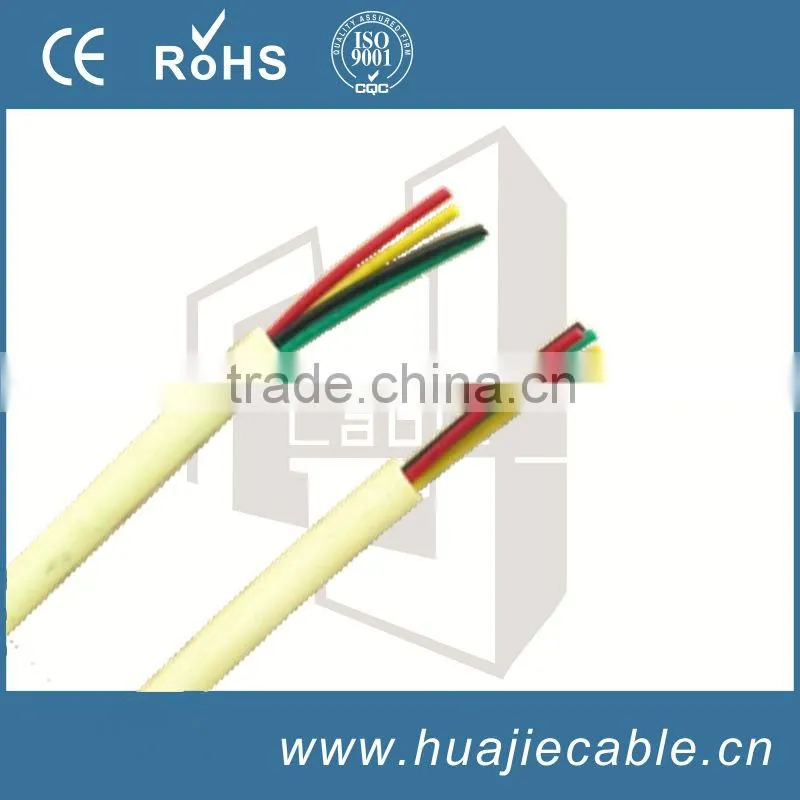

Telephone Cable |
Specification |
|
|
Inner Conductor |
4Core*0.5mm BC/CCS |
Dielectric |
4Core*1.0mm Insulation |
|
Jacket |
3.8mm PVC |
|

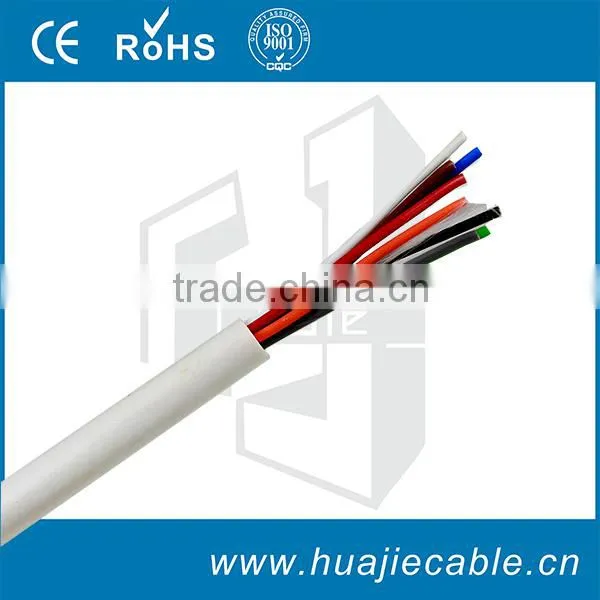

Alarm Cable |
Specification |
|
|
Inner Conductor |
4Core*7*0.2mm BC/TCCA |
Dielectric |
4Core*1.0mm Insulation |
|
Jacket |
3.8mm PVC White |
|
Why us ?
1. We are the professional coaxial cable manufacturer, so we have rich production experience on the cables;
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on CE, ROHS, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
