Specifications
4c telephone cable:1.Factory Competitive price.
2.Timely delivery.
3.ISO9001, CE, ROHS

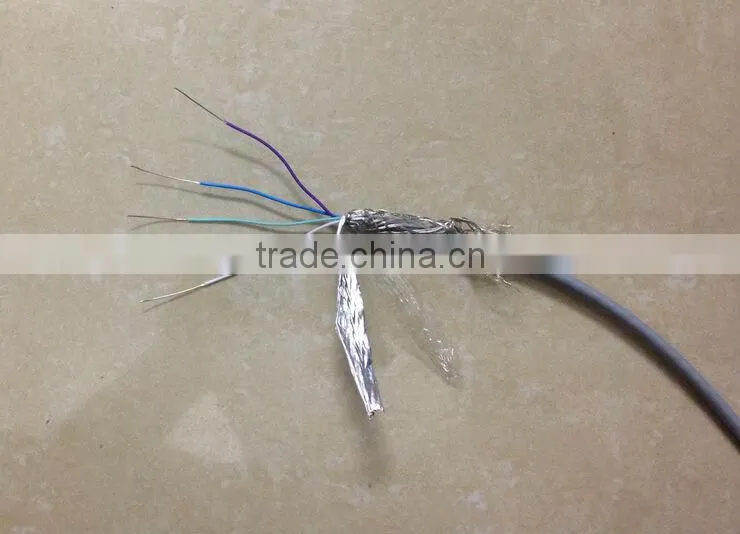

Huajie TEL48102/4MC telephone cable
TEL48102/4MC telephone cable of 4x7x0.15mm is designed for indoor use (analog, digital, ISDN).
Thanks to two metal protection layers , it is suitable for working in the environment of strong electromagnetic noise
Detail Component
-Core of 7x0.15mm tinned copper compliant with IEC 28
-Inner Polyethylene insulator coat compliant with ASTM D1248 typeIII; class A; categogy 4
- Aluminum cladding and additional copper grid layer for electromagnetic noise resistance
- Nylon water-resistance layer
- Outer Thermoplastic polyurethanes (TPU) jacket
- Number of pairs: 2 (or from 2 to 25 pairs on the same TEL48102 cable series)
- RoHS compliant
Specification
Item |
Value |
Impedance |
120 Ohms |
Cross capacity between pairs (800Hz) |
Max 52 nF/km |
Attenuation (1 MHz) |
3.0 dB / 100m; |
Crosstalk (1 MHz) |
3.0 dB / 100m; |
Compression resistance |
≥ 5 kN/100mm |
Tensile Force, on installation (N/10cm) |
1000 |
Tensile Force, on operation (N/10cm) |
200 |
Operating Temperature |
-5 0C to 70 0C |
Humidity |
0 to 90% |
Factory Show :
Why us ?
1. We are the professional coaxial cable manufacturer, so we have rich production experience on the cables;
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on CE, ROHS, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
Hangzhou Linan Huajie Wires & Cables Co., Ltd.
Qingke Village, Jincheng Street, Lin'an, Hangzhou, Zhejiang, China (Mainland)
Tel: +86 571 61069866 Fax: +86 571 61070877
