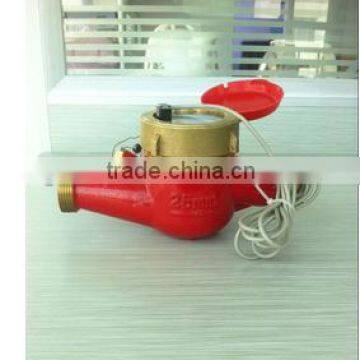

multi jet dry type flow meter
US$ 20 - 80
/ Piece
1000 Pieces(Min. Order)
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | gaoxiang | |
| Model Number | LXL80-400-32 |
Product Description
Specifications
water meter mechanismmulti jet water mechanism
size from 15mm to 50mm
ISO 4064 class B/C(R80/R160)
Feature
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Single-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Universal use.Easy for interchange & maintenance
Description
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit,passing through the pipeline.
Working condition
Cold water temperature: <=50°C
Hot water temperature: <=90°C
Water pressure:<=1Mpa
Type | Size (mm) | Class | Qn Max. Flow | Qp Nominal Flow | Qn Transitional Flow | Qmin Min. Flow | Min. Reading | Max. Reading | |
m 3 /h | m 3 | ||||||||
LXSC-13D3 | 13 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99,999 | |
B | 120 | 30 | |||||||
LXSC-20D3 | 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99,999 | |
B | 200 | 50 | |||||||
LXSC-25D3 | 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99,999 | |
B | 280 | 70 | |||||||
Type | Size (mm) | Length | Width | Height | Connecting Thread D | Weight (kg) |
mm | D | kg | ||||
LXSC-13D3 | 13 | 80/110 | 77 | 85 | G 3/4B | 0.6/0.7kg |
LXSC-20D3 | 20 | 130 | 77 | 85 | G 1B | 0.9 kg |
LXSC-25D3 | 25 | 160 | 77 | 92 | G1 1/4B | 1.47kg3D |
