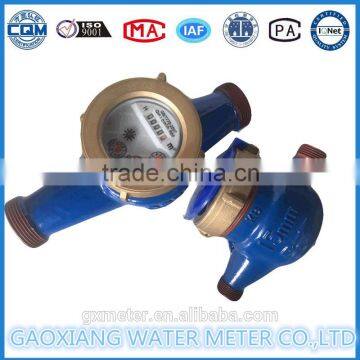

multi jet water meter brass body dry dial water meter

FOB Price

US$ 5 - 30 / Piece

100 Pieces(Min. Order)

Port qingdao
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	GAOXIANG
Model Number	LXS-20

Product Description

Application:
Measuring the volume of cold or hot potable water passing through the pipeline

Quality:
•Dry type,magnet drive,clean dial to guarantee it legible reading,resistance to magnetic interference.
•Available with non-return valve, inlet strainer and pulse output on request.
•Technical data conform to International Standard ISO4064 Class B.

Working condition:
temperature:≤40℃
Pressure:≤1Mpa

Maximum Permissible Error:
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.

Main Technical Data

Tpye	Meter Size	class	Maxflow	Nominal Flow	Transition Flow	Min Flow	Min Reading	Max Reading
mm		class	m3/h		L/h		m3
LXSC-15E	15	B	3	1.5	120	30	0.0001	99999
LXSC-20E	20	B	5	2.5	200	50	0.0001	99999
LXSC-25E	25	B	7	3.5	280	70	0.0001	99999
LXSC-32E	32	B	12	6.0	480	120	0.0001	99999
LXSC-40E	40	B	20	10	800	200	0.0001	99999
LXSC-50E	50	B	30	15	1200	300	0.0001	99999

Dimensions and weight

Tpye	Meter Size	Length	Wide	Heigh	Connecting Thread	weight
mm					D	kg
LXSC-15E	15	165	99	104	G 3/4B	1.2
LXSC-20E	20	190/195	99	104	G 1B	1.7
LXSC-25E	25	225/260	104	115	G1 1/4B	2.4/2.6
LXSC-32E	32	230/260	104	115	G1 1/2B	2.5/2.6
LXSC-40E	40	245/300	124	153	G 2B	4.8/5.5
LXSC-50E	50	280/300	124	153	G2 1/2B	5.5
LXSC-50E	50	280/300	124	153	Flange connect GB4216.4-84 D=165 D1=125	10

Code	Description	Material	QTY
1	Lid	HDPE	1
2	Hinge Pin	Brass	1
3	Cap	Brass	1
4	Sliding Gasket	PP	1
5	Glass	Tempered Glass	1
6	Register	Assembly	1
7	Magnetic Shield Ring	Iron	1
8	magnetic shield ring	Iron	1
9	Register Chamber	ABS	1
10	o-ring	silicon rubber	1
11	vane wheel	ABS	1
12	Vane whell chamber	ABS	1
13	bottom strainer	PP	1
14	Adjusting screw	ABS	1
15	adjusting gasket	PP	1
16	adjusting Plug	Brass	1
17	coupling nut	Brass	2
18	coupling tail piece	Brass	2
19	coupling gasket	rubber	2
20	inlet strainer	PP	1
