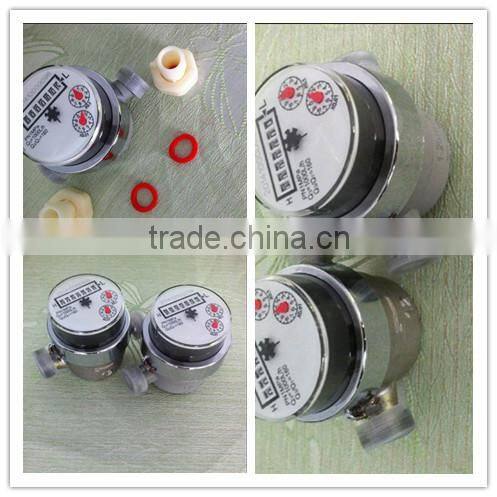

Flow Water Meter Made in China
Specifications
water meter mechanismmulti jet water mechanism
size from 15mm to 50mm
ISO 4064 class B/C(R80/R160)
Feature
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Single-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Universal use.Easy for interchange & maintenance
Description
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit,passing through the pipeline.
Working condition
Cold water temperature: <=50°C
Hot water temperature: <=90°C
Water pressure:<=1Mpa
|
Type |
Size (mm) |
Class |
Qn Max. Flow |
Qp Nominal Flow |
Qn Transitional Flow |
Qmin Min. Flow |
Min. Reading |
Max. Reading |
|
|
m 3 /h |
m 3 |
||||||||
|
LXSC-13D3 |
13 |
A |
3 |
1.5 |
150 |
60 |
0.0001 |
99,999 |
|
|
B |
120 |
30 |
|||||||
|
LXSC-20D3 |
20 |
A |
5 |
2.5 |
250 |
100 |
0.0001 |
99,999 |
|
|
B |
200 |
50 |
|||||||
|
LXSC-25D3 |
25 |
A |
7 |
3.5 |
350 |
140 |
0.0001 |
99,999 |
|
|
B |
280 |
70 |
|||||||
|
Type |
Size (mm) |
Length |
Width |
Height |
Connecting Thread D |
Weight (kg) |
|
mm |
D |
kg |
||||
|
LXSC-13D3 |
13 |
80/110 |
77 |
85 |
G 3/4B |
0.6/0.7kg |
|
LXSC-20D3 |
20 |
130 |
77 |
85 |
G 1B |
0.9 kg |
|
LXSC-25D3 |
25 |
160 |
77 |
92 |
G1 1/4B |
1.47kg3D |

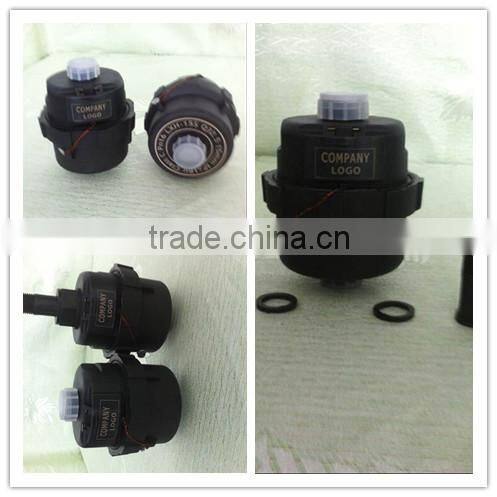

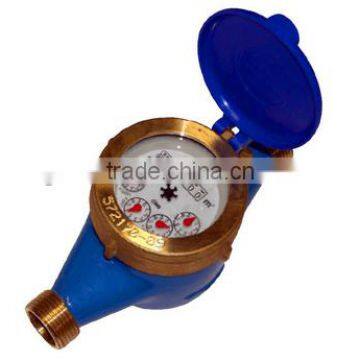

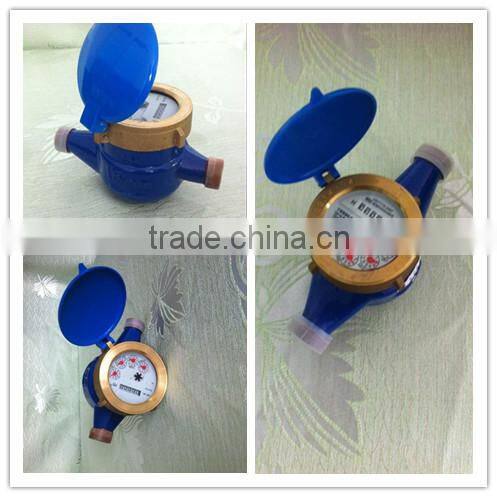

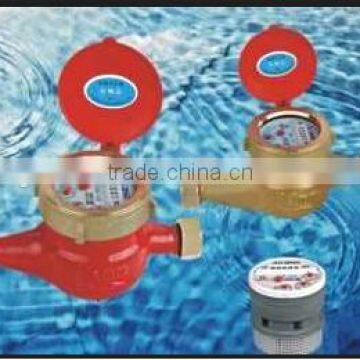

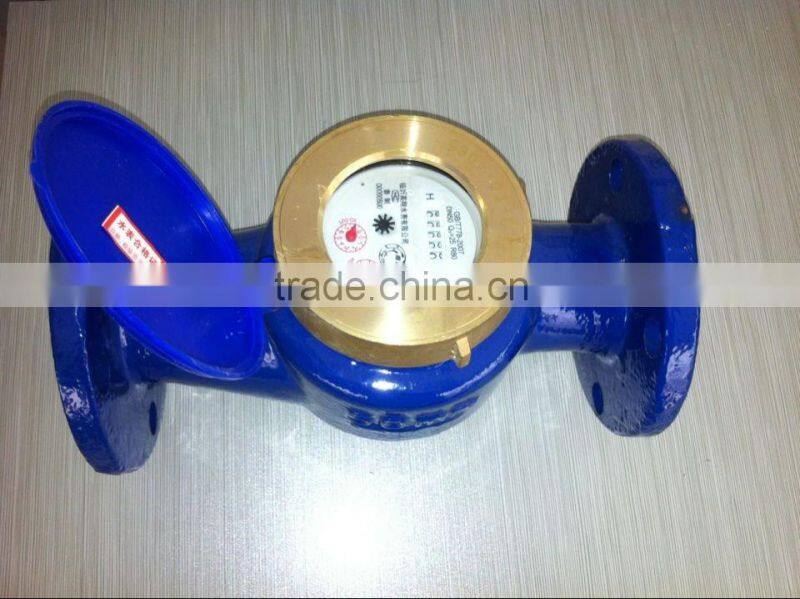

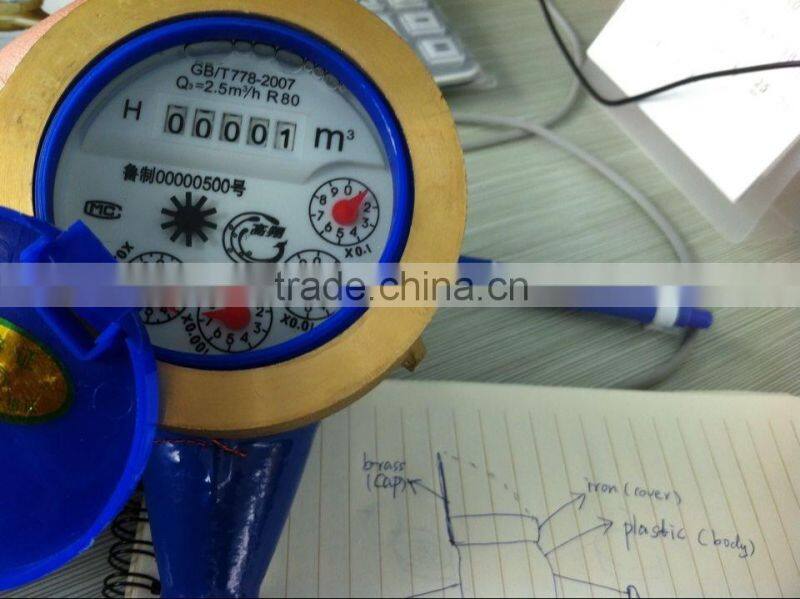

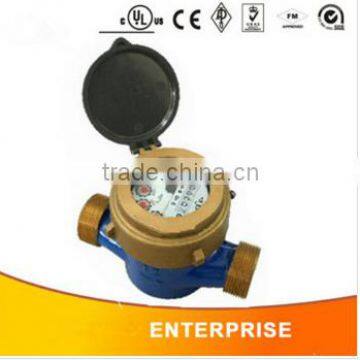

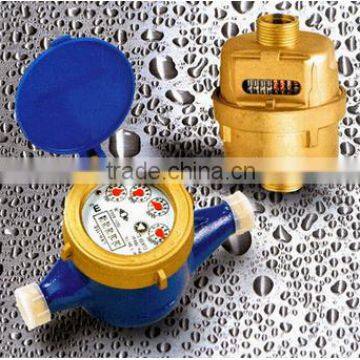

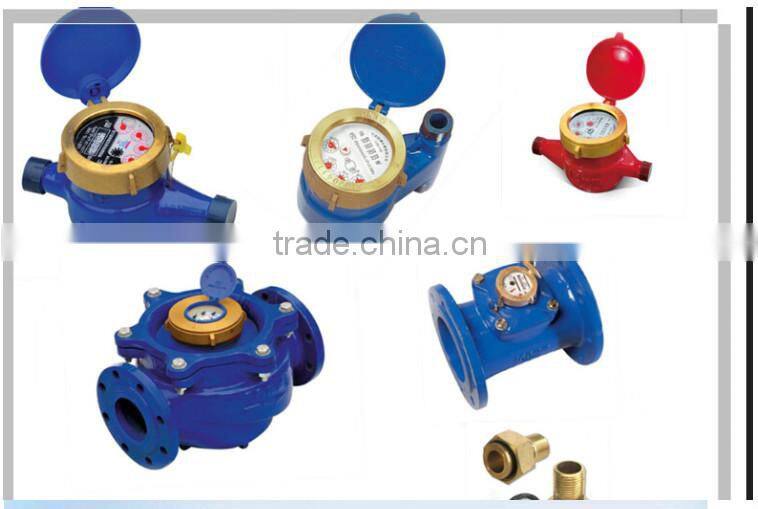

Our Product Image
