LoRa/LoRaWAN Water Meter | Long Distance Transmission | Low Power Consumption | Remote Meter Reading for Municipal and Rural Water Supply
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Highwell Electronic
Place of Origin:
China
Transmission Distance:
2km in open areas
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RS485/M-Bus Wired Water Meter | Easy Installation | High Stability | Direct Data Transmission | Apartment Buildings and Industrial PlantsNegotiableMOQ: 5 Pieces -
DN50-DN300 Large Diameter Water Meter | Class B Accuracy | Cast Iron Body | for Municipal Main Pipelines & Industrial Water SupplyNegotiableMOQ: 5 Pieces
-
NB-IoT Smart Water Meter | Prepaid Water Meter | Remote Monitoring and Leak Detection | Municipal and Home IoT Water MeterNegotiableMOQ: 10 Pieces
-
Cat1 IoT 4G Water Meter Intelligent Prepaid Valve Control Remote Wireless Meter ReadingNegotiableMOQ: 10 Pieces
-
DN50-DN300 Large Diameter Ultrasonic Heat Meter | M-Bus/LoRaWAN Options | High Flow Capacity | for District Heating NetworksNegotiableMOQ: 5 Pieces
Brand Name
Highwell Electronic
Place of Origin
China
Transmission Distance
2km in open areas
Measurement Method
Reed switch/Magnetic resistance/Hall/Non
Features
1.Support reed switch, magnetic resistance, Hall, non-magnetic and other measurement methods;
2.Intelligent sub-address wake-up mechanism, effectively reduce power consumption and avoid interference;
3.Level 1-9 repeater can be set to realize networking in ultra-long-distance and complex environments;
4.The spreading factor and transmit power can be modified to increase the transmission distance and balance power consumption;
5.Wide range of channels can be set to avoid wireless interference;
6.Support meter-side prepayment, built-in 5-level tiered water price, alarm water volume and overdraft water volume can be set;
7.Control the valve by automatic or remotely and detect the anomaly of valve;
8.Periodic switch valve rust prevention, switch cycle can be set;
9.Abnormal alarms such as battery undervoltage, sensor failure, magnetic interference, etc.;
10.Support OTA, continuously optimize the functions.
Technical Parameter
| Nominal diameter | 15 | 20 | 25 | 32 | 40 |
| Range ratio | R80 | R80 | R80 | R80 | R80 |
| Minimum flow rate Q1 (L/h) | 31 | 50 | 79 | 125 | 200 |
| Boundary flow rate Q2 (L/h) | 50 | 80 | 126 | 200 | 320 |
| Normal flow rate Q3 (L/h) | 2500 | 4000 | 6300 | 10000 | 16000 |
| Overload flow rate Q4 (L/h) | 3125 | 5000 | 7875 | 12500 | 20000 |
| Power supply method | DC3.6V (disposable lithium battery) |
| Accuracy Class | Class 2 |
| Maximum allowable pressure | 1.6MPa |
| Temperature Class | T30/T50/T90 (optional) |
| Environmental Class | Class B |
| Flow field sensitivity Class | U10/D5 |
| Electromagnetic compatibility Class | Class E1 |
| Communication interface | LoRa/LoRaWAN/Infrared |
| Protection Class | IP68 |

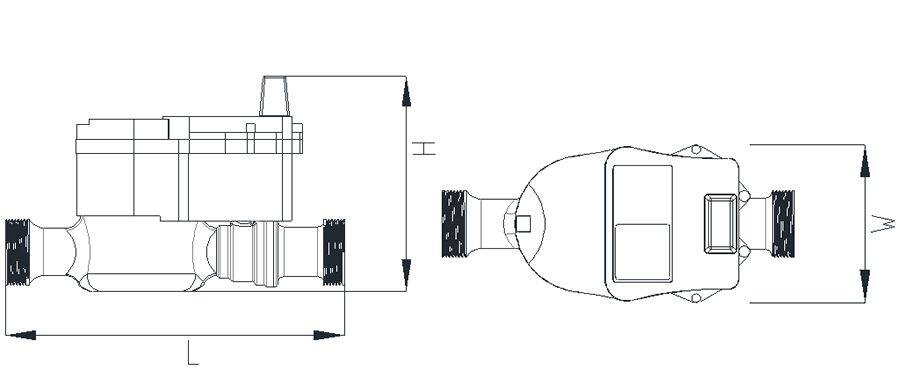

Outline Dimension
| Nominal Diameter | Length L (mm) | Width W (mm) | Height H (mm) | Thread Diameter D (mm) |
| DN15 | 165 | 96 | 115 | G3/4B |
| DN20 | 195 | 96 | 115 | G1B |
| DN25 | 225 | 96 | 115 | G1 1/4B |
