Jerry Tile Pressing Equipment
- 5 Set / Sets per Month
- FOSHAN GUANGDONG CHINA
- T/T L/C D/P D/A
- Hand press block making machine QTJ4-50
- Pioneer high capacity AAC Block Production Line
- China pe200x300 smallest jaw crusher
- XIEXING XQY2000 Hydraulic pressure molding machine for sale
- High Capacity Clay Brick Making Machines With 20stripe/M 18.8kw Power CE / ISO Certificate
- High Speed Clay Brick Cutting Making Machine 12000kg With 36000pcs/Hr Capacity
Product Details
Condition: | New | Type: | Other, wet forming | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Vacuum Extruder | Automatic: | Yes |
Capacity: | 6 ~ 60 Tons/Hour | Place of Origin: | Guangdong, China | Brand Name: | TELE MACHINE |
Model Number: | TL-AUTOYWJ-2W | Voltage: | 380w | Power: | 30 / ( 75 ~ 110 ) kw |
Dimension(L*W*H): | 5,750 x 2,530 x 4,020 (mm) | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Jerry Tile Pressing Equipment

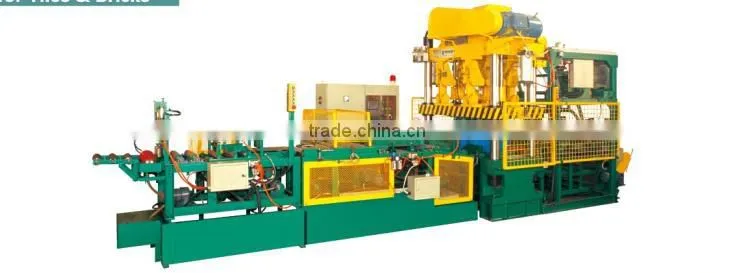

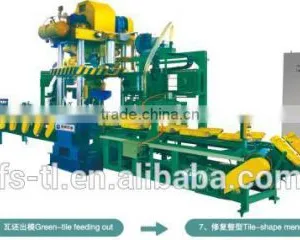

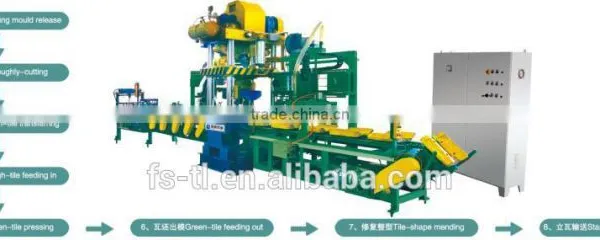

Major Technical Parameters of Auto Roofing-Tile Double-Moulds Press Line Type TL-AUTOYWJ-2W | |||||
| |||||
(Whole Line) Dimension L x W x H (mm) |
(Main Press) Dimension L x W x H (mm) |
Max. Pressing Force (kn) |
Working Table L x W (mm) |
Motor Power (kw) | |
7,740 x 2,220 x 2,730 | 1885 x 2,220 x 2,730 | 2400 | 1640 x 865 | 17.75 | |
Working Pieces Per Minute. (pcs/min) |
Working Frequency. (1/min) |
Pressurize Stroke / Max. Stroke (mm) |
Adjusting-Height for Mould (mm) |
Net Weight (kg) | |
20~24 | 10~12 | 8 / 250 | 10 | ≈ 12000 | |
| |||||
Features of This Type | |||||
1. Super adapt to a variety of roofing tiles of multi-shape, multi-volume, flexible, high quality production and doubled capacity of type IW. 2. Optimized on the basis of type IW and assembled eight inked-function steps in one, the double-acting line achieves through the after-extrusion process to the before-drying process of whole process automatic production without man-made errors. 3. The unique patented technology of reciprocating up & down crank arm formation mechanism, much easy to mount & adjust the molds, and accurately control the molding pressure with obvious advantages in mold use & maintenance, and smooth running of stably & reliably. |
Foshan Tech-Leader Machinery Equipment Co., Ltd. with the brand name of TELE MACHINE is located in the beautiful & famous China ceramic city -- Foshan, Guangdong province. Since its establishment, TELE MACHINE has been committed to the research & development & manufacturing of the process machines for new varieties tiles& bricks of clay or ceramic building materials. Haven nearly 20 years of industry experiences and won 70 patents in the field of intellectual property rights of technology, we are the State High-Tech Enterprises, Guangdong Civil-Run Science and Technology Enterprises, Foshan Intellectual Property Right Pilot
Enterprises and one of the first batch Guangdong Low-Carbon Pilot Enterprises in Foshan. Focus on supplying tiles & bricks process machines
We focus on offering machine lines of good solution
for roof tile / split tile / hollow bricks / clay brick etc.
We want to do better with you.
TELE MACHINE can make the products involving clay or ceramic tiles & bricks, especially focus on the special and new one, including roofing tiles, ceramic plate, terracotta panel, split tiles, clay bricks, hollow bricks, split rock, special-shaped ceramic, artificial stone plate, cubic ceramic, paving brick etc. And its recent development of unburned technology of energy saving & conservation and environmental protection green new material equipment, such as green hollow extrusion plank production equipment etc.
Overview of TELE Machine's products and service
TELE MACHINE can make the products involving clay or ceramic tiles &bricks, especially focus on the special and new one, including roofing tiles, ceramic plate, terracotta panel, split tiles, clay bricks, hollow bricks, split rock, special-shaped ceramic, artificial stone plate, cubic ceramic, paving brick etc. And its recent development of unburned technology of energy saving & conservation and environmental protection green new material equipment, such as green hollow extrusion plank production equipment etc.
