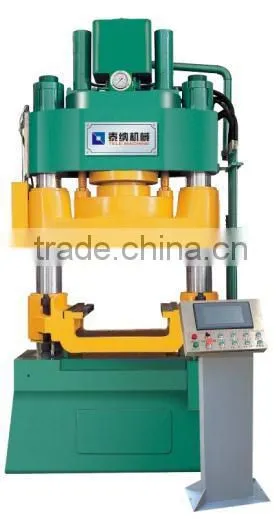

DRY POWDER FORMING MACHINE WITH PRESSING

Major Technical Parameters of Hydraulic Tile Press Type TL-YZJ-260

Dimension L x W x H (mm)

Main Cylinder Max. Pressing Force (k n)

Working Table L x W (mm)

Motor Power (kw)

1,600 x 750 x 3,055

2600

700 x 900

22

Working Frequency. (1/min)

Lower Cylinder Ejecting Force (k n)

Lower Cylinder Ejecting Stroke (mm)

Net Weight (kg)

8~10

110

120

≈  9000

Features of This Type

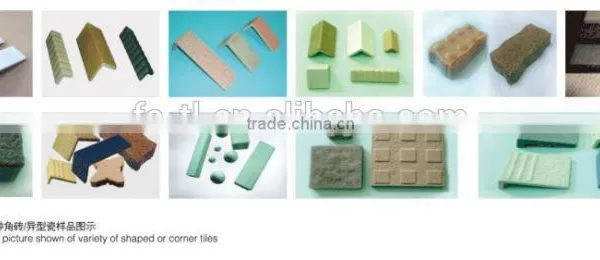

1. Mainly for producing special-shape ceramic tiles or ultra-thick tiles, like corner tiles, split rocks etc. by adopting dry pressed-forming process, to get more trendy and characteristic constructional materials.

2. Patterned technology guarantees good performances and easy dealing with varied technical parameters of different kind special ceramics, like angle, thickness, pressing-force, feeding-conditions during work.

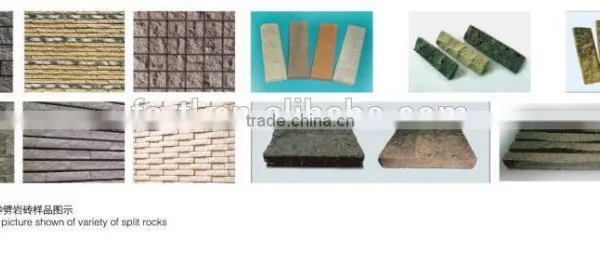

3. Matched with the corner tiles further processing equipment & TL-PZJ-PY splitting machine to realize corner tiles whole process & split rocksproduction.
