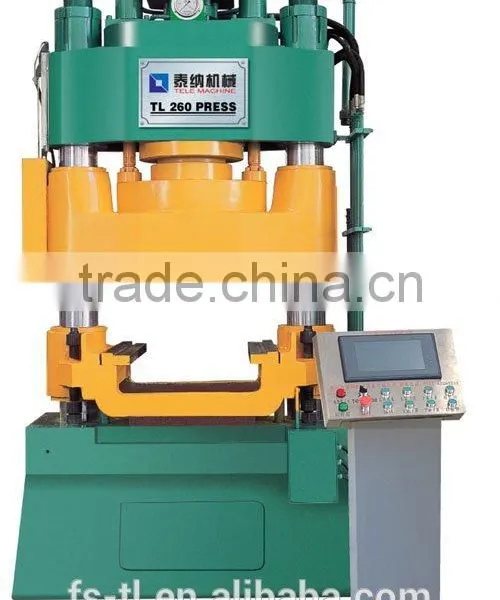

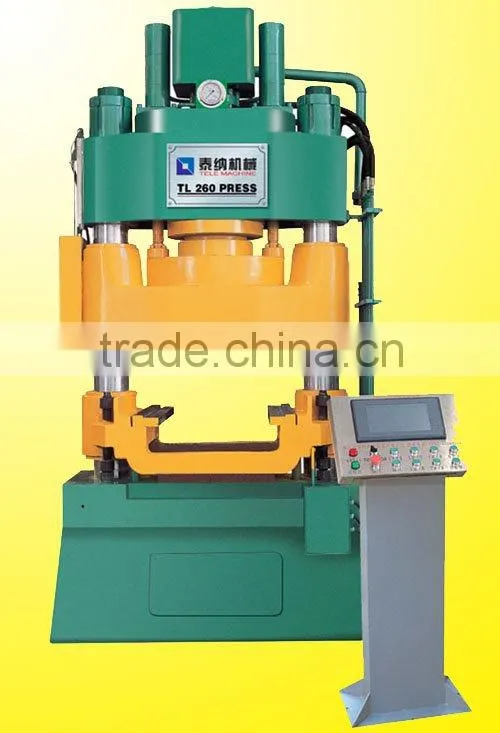

260T Fly Ash Hydraulic Pressing Unit

Name: 260T Fly Ash Hydraulic Pressing Unit
Brand: Tele Machine
Availability: InStock

FOB Price

USD $85,000 - $86,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Tele Machine
Model Number	Fly Ash TL-YZJ-260		After-sales Service Provided	Engineers available to service machinery overseas

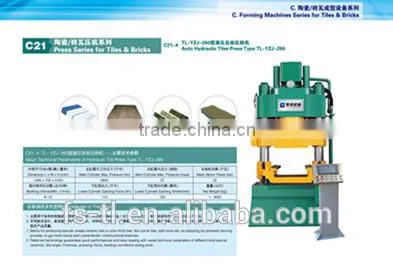

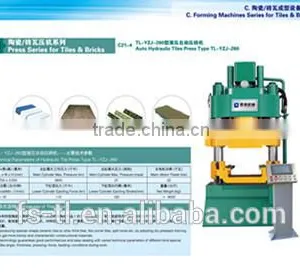

Major Technical Parameters of Hydraulic Tile Press Type TL-YZJ-260

Dimension L x W x H (mm)	Main Cylinder Max. Pressing Force (k n)	Working Table L x W (mm)	Motor Power (kw)
1,600 x 750 x 3,055	2600	700 x 900	22
Working Frequency. (1/min)	Lower Cylinder Ejecting Force (k n)	Lower Cylinder Ejecting Stroke (mm)	Net Weight (kg)
8~10	110	120	≈ 9000

Features of This Type

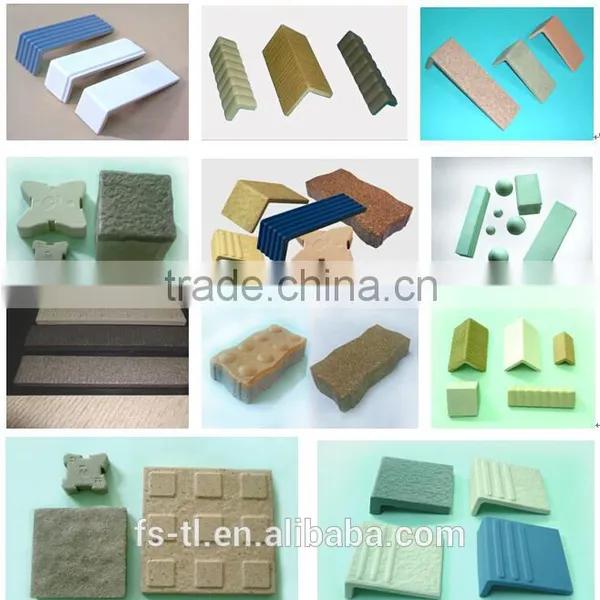

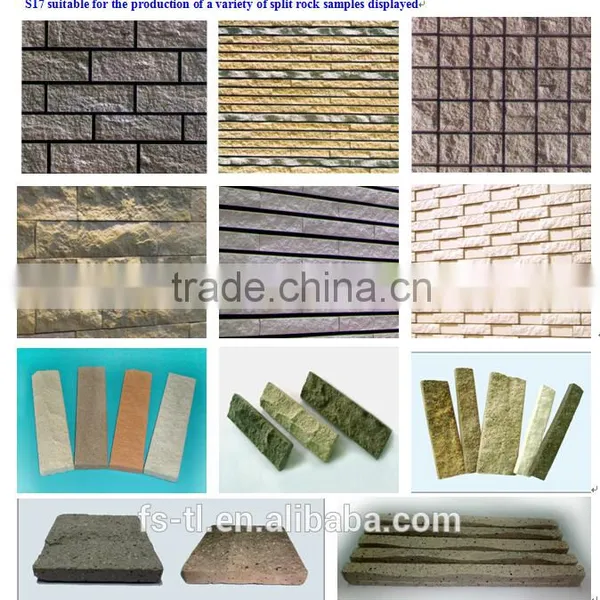

1. Mainly for producing special-shape ceramic tiles or ultra-thick tiles, like corner tiles, split rocks etc. by adopting dry pressed-forming process, to get more trendy and characteristic constructional materials. 2. Patterned technology guarantees good performances and easy dealing with varied technical parameters of different kind special ceramics, like angle, thickness, pressing-force, feeding-conditions during work. 3. Matched with the corner tiles further processing equipment & TL-PZJ-PY splitting machine to realize corner tiles whole process & split rocksproduction.
