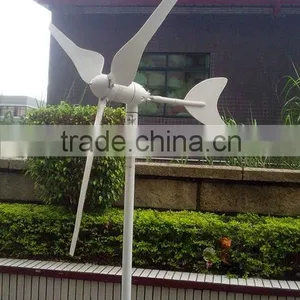

100W 50w 12v Wind Power Generator With CE RoHS
US$ 120 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Green Elec
Model Number:
Z-100
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small 100W Wind Turbine Wind Generator WindmillUS$ 150 - 200MOQ: 1 Set -
Wholesales 100w Portable and Small Wind Turbine Generator Windmill 2pcs/lot 12v 24v DC CE RoHS,ISO9001 FreeshippingUS$ 100 - 10,000MOQ: 3 Sets
-
Wholesales 100w Portable and Small Wind Turbine Generator Windmill 12v 24v ACUS$ 130 - 200MOQ: 1 Set
-
Wholesales 100w Portable and Smart Windmill Wind GeneratorUS$ 130 - 200MOQ: 1 Set
-
Smart 2.8kg 100w Windmill Better Suit for Camping 10w LED LightingUS$ 140 - 170MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Green Elec
Model Number
Z-100
Type
Wind Power Generator
Specifications
100W 50w 12v wind power generator with CE RoHS1.High efficiency
2.Low noise
3.Weight light
4.Anti-wind ability

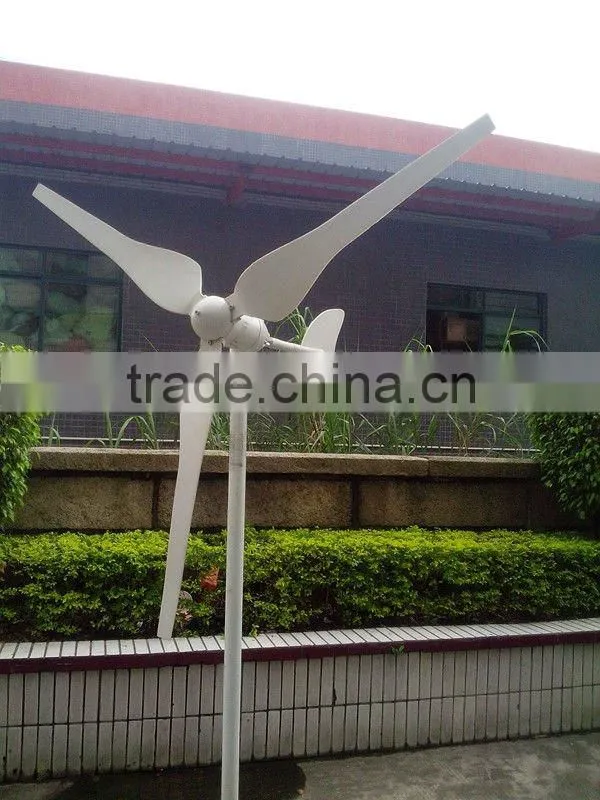

100W 50w 12v wind power generator with CE RoHS
Product Characteristics:
1.Portable, using ultra-light composite materials and engineering
plastics, the weight of 2500g,
2.installation or disassembly in 3
minutes and a small space occupied
3.The machine head can be arbitrary rotated with anti-winding
devices
4.Large capacity, to be Wind-Solar Hybrid power supply system
with solar cells,
5.Providing 0.6-1.5 degrees power in 24 hours meet the need of portable computers,Instrument, mobile phones and lighting
Small mini 100w 50w wind generator turbine windmill Product Specification:
|
wind
generator |
Model | Z-50W | Z-100W |
| Name | Hyacinth | Hyacinth | |
| Rated power | 50W | 100W | |
| Rated DC voltage | DC 12V/24V | DC 12V/24V | |
| Rated current | 4.4A/2.2A | 8.8A/4.4A | |
| Rated speed | 1050r/m | 860r/m | |
| Max power | 65W | 115W | |
| Number of blade | 3 pcs | 3 pcs | |
| Starting wind speed | 3m/s | 3m/s | |
| Cut-in wind speed | 3.5m/s | 3.5m/s | |
| Cut-out wind speed | 15m/s | 15m/s | |
| Security wind speed | 45m/s | 45m/s | |
| Rated wind speed | 12m/s | 12m/s | |
| Engine | Three-phase permanent magnel generator | Three-phase permanent magnel generator | |
| Rotor diameter | 830mm | 1050mm | |
| Blade material | Carbon fiber reinforced plastics | Carbon fiber reinforced plastics | |
| Output line anti-winding device | Overall three-phase commutator | Overall three-phase commutator | |
| Over-speed wind protection | Tip stall protection + turned protection + Electromagnetic brake | Tip stall protection + turned protection + Electromagnetic brake | |
| Life span | 10 years | 10 years | |
| Equipment surface protection | Galvanization plastic coating | Galvanization plastic coating | |
| Working temperature | -40°C-70°C | -40°C-70°C | |
| N.W. | 2.6kg | 2.8kg | |
| Packing material | Carton box and foam material | Carton box and foam material | |
| packing dimension | 645*280*240mm | 645*280*240mm | |
| G.W. | 3.2kg | 3.5kg | |
| Tower part | Tower height | 3M(30mm zinced iron tube) | 3M(30mm zinced iron tube) |
| G.W | 17kg | 17kg | |
| Controlling circuit equipment | Controller*Inverter | 100W | 100W |
| Packing material | Carton box and foam material | Carton box and foam material | |
| G.W. | 2.5kg | 2.5kg |

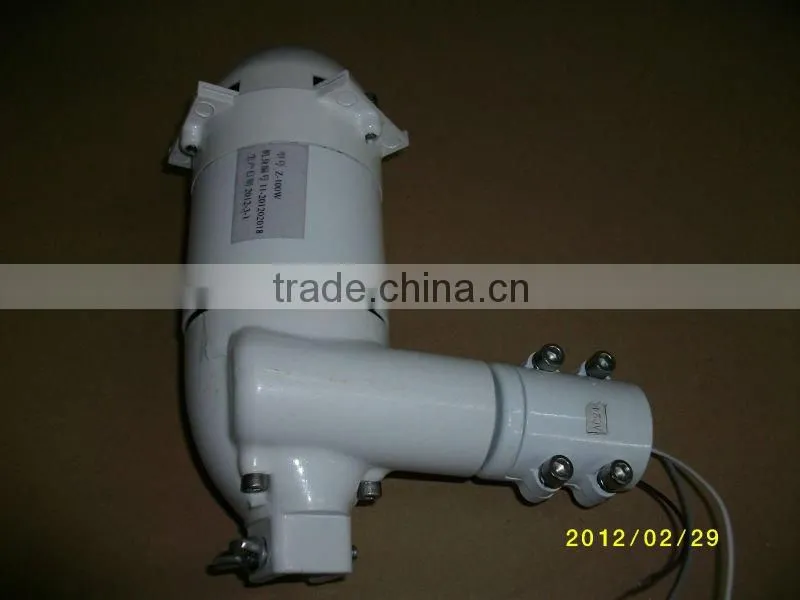

Small mini 100w 50w wind generator turbine windmill

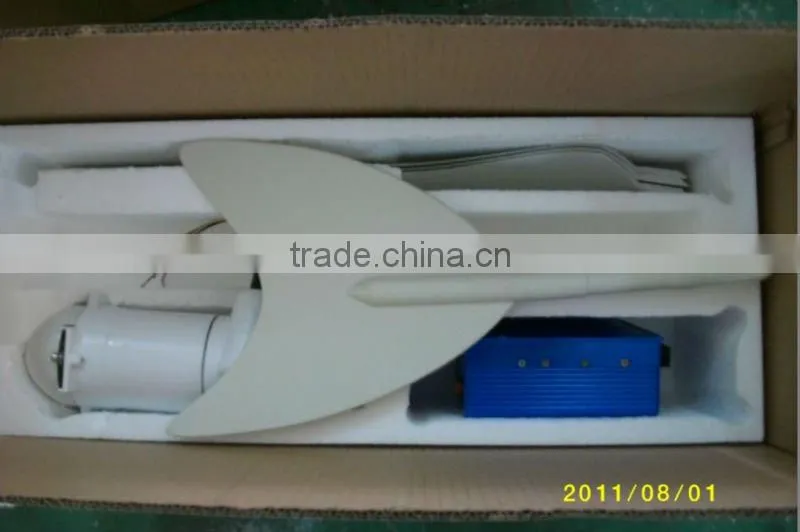

Small mini 100w 50w wind generator turbine windmill

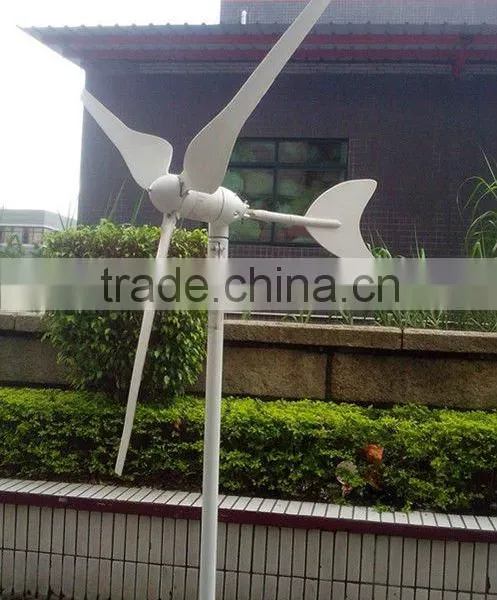

Small mini 100w 50w wind generator turbine windmill
Product certification
