Help CenterSmall 100W Wind Turbine Wind Generator Windmill
Related Products
-
Wholesales 100w Portable and Small Wind Turbine Generator Windmill 2pcs/lot 12v 24v DC CE RoHS,ISO9001 FreeshippingUS$ 100 - 10,000MOQ: 3 Sets -
Wholesales 100w Portable and Small Wind Turbine Generator Windmill 12v 24v ACUS$ 130 - 200MOQ: 1 Set
-
Wholesales 100w Portable and Smart Windmill Wind GeneratorUS$ 130 - 200MOQ: 1 Set
-
Smart 2.8kg 100w Windmill Better Suit for Camping 10w LED LightingUS$ 140 - 170MOQ: 10 Pieces
-
Smart 2.8kg 100w Windmill and 50w Portable Solar Panel Suit for Camping SingUS$ 140 - 180MOQ: 15 Pieces
Specifications
1.Lihgt weight2.Easy install
3.CE RoHS
4.Sample: within 3 days

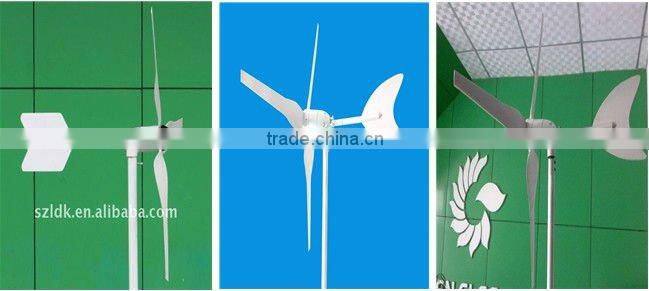

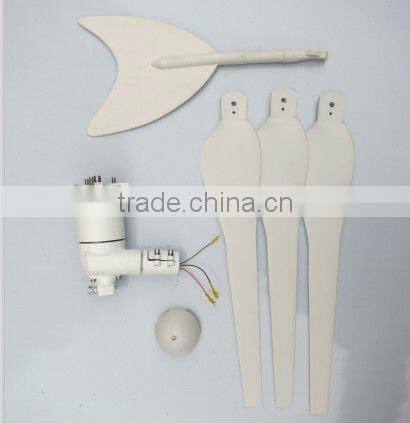

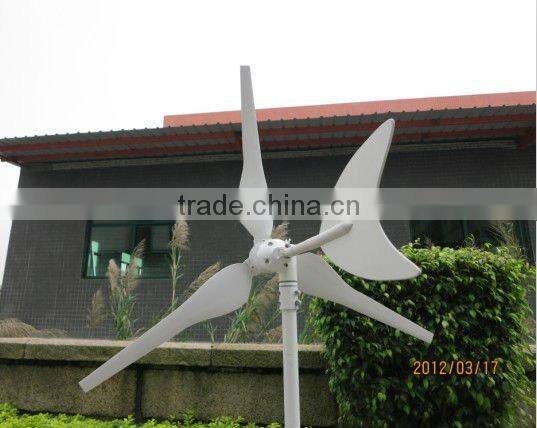

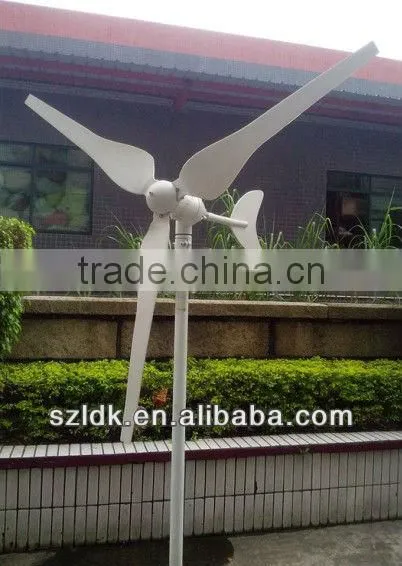

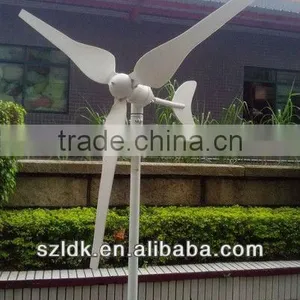

Small 100W 50W Wind Turbine/ Wind Generator
Product Characteristics:
1.Portable, using ultra-light composite materials and engineering
plastics, the weight of 2500g,
2.installation or disassembly in 3
minutes and a small space occupied
3.The machine head can be arbitrary rotated with anti-winding
devices

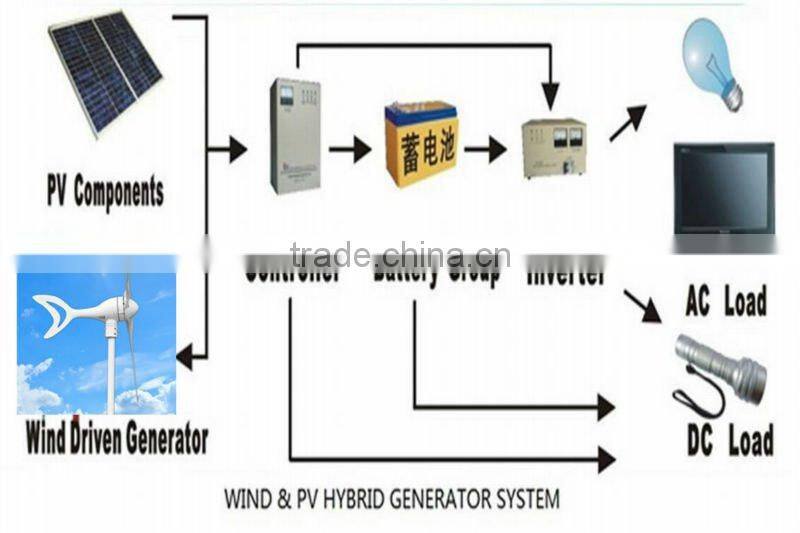

4.Large capacity, to be Wind-Solar Hybrid power supply system
with solar cells,
5.Providing 0.6-1.5 degrees power in 24 hours meet the need of portable computers,Instrument, mobile phones and lighting
Product parameters
Model |
Z-50W |
100W |
Starting wind speed |
3m/s |
3m/s |
Cut in wind speed |
3.5m/s |
3.5m/s |
Rated wind speed |
12m/s |
12m/s |
Rated DC voltage |
12V |
12V |
Rated AC output voltage |
220V/50Hz(110v/60Hz) |
220V/50Hz(110v/60Hz) |
Over-speed protection |
Electromagnetic torque control |
Electromagnetic torque control |

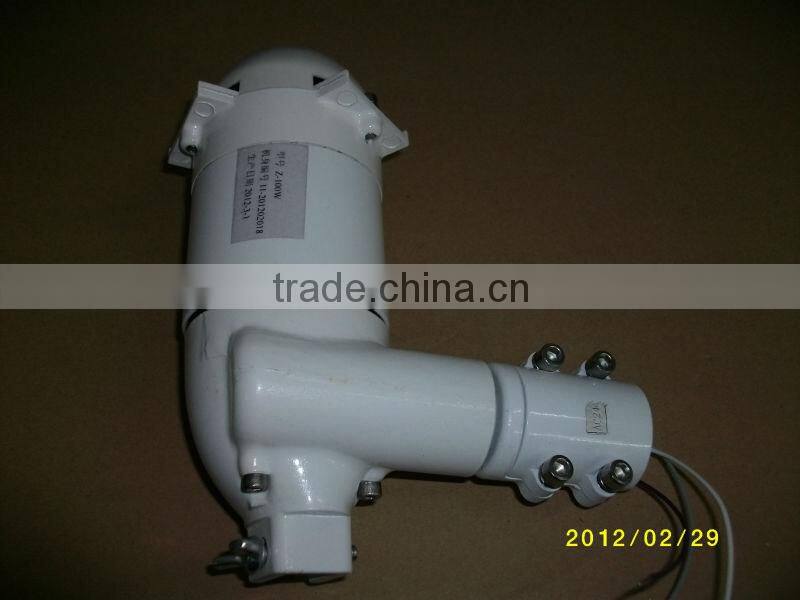

Engin |
Permanent magnetism synchronization generator |
Permanent magnetism synchronization generator |
Rated rotating speed |
1050 |
750 |
Wind energy utilization rate |
0.41 |
0.41 |
colour |
various |
various |
N.W. |
2.3kg |
2.8kg |
Blade material |
Extra-strong and tenacious engineering plastics |
Extra-strong and tenacious engineering plastics |
Rotor diameter |
800mm |
920mm |
Rotor length |
614mm |
650mm |
Rated power |
50W |
100W |
Packing material |
Carton box and foam material |
Carton box and foam material |
Packing dimension |
615*260*210mm |
615*260*210mm |
G.W. |
4kg |
5kg |
