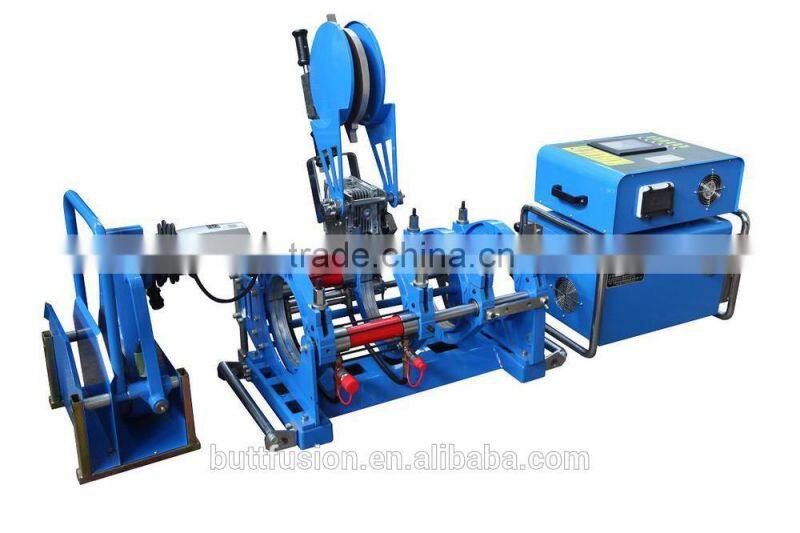

CNC Welding Machine QZD250

QZD355 CNC welding machine, Automatic butt fusion machine, fully automatic butt welding machine, fully automatic butt fusion welding machine, fully automatic HDPE pipe welding machine


Application:
Fully automatic butt fusion welding machine is suitable for automatically butt fusion welding of plastic pipes and fittings made of PE, PP, and PVDF in construction site or workshop.

Features:
For basic frame: Hydrualic open and close clamps, hydraulic controlled pipe roller to feed and fix pipes.
For trimmer: Spiral and piece together design, electric control.
For heater: High precision temperature control system; Teflon coated.
The printer can save 1000 piece records, print directly when finish welding.
Low startup pressure, high-reliable sealed construction.
Changeable welding position, easily for welding various pipe fittings.

Advantages:
Computer control is according to national standard GB/T20674'1
At the predetermined parameters range, all phases of butt welding process are controlled auomatically.
Error analysis system will recognize the error with predetermined parameters.
Computer can save 1000 pieces of welding records and input the records to computer.
with mini printer, can review welding records welding process at site.

Technical specifications:
1. Welding range: from 160mm to 355mm in diameter
2. Heater maximum temperature: 270° C
3. Trimmer power: 1100W 220V 50Hz
4. Heater power: 3000W 220V 50Hz
5. Hydraulic unit power: 750W (0-63bar) 220V 50Hz
6. Temp. Deviation in surface: 170-270° C ±3° C

The whole machine consists of machine body, hydraulic unit, facer, heater, support for heater & facer and microcomputer control system.

Optional parts:
Flanage adaptor
