Automatic plastic pipes workshop fitting welding machine to make elbow, tee,cross fittings SHG800/450
SHG800 PE pipe fitting fabrication machine, plastic pipe fitting fusion machine,fitting fusion machine, workshop fitting welding machine; Angle fitting welding machine, table butt fusion machine, fitting fabrication machine
Application:
Automatic plastic pipes workshop fitting welding machine SHG800/450 with printing function is suitable for fabricating elbow, tee, cross and wye shape (45°and 60°) Fittings of PE, PP, PVDF in workshop.
Features:
1. Removable PTFE coated heater.
2. Electric facer with safety limit switch.
3. Low starting pressure ensures reliable welding quality of small pipes.
4. Separate two-channel timer can show both of soaking and cooling time.
5. High-accurate and shockproof pressure meter indicates clearer readinds.
6. Pivoting facer and heater bring Convenience to placing and removing.
7. Complies with 98/37 and 73/23 EEC standards.
8. New function: Automatic machine can print out all the technical parameters as soon as the welding finished
Technical specifications:
1. Welding range: 450mm,560mm,630mm,710mm,800mm
2. Application: 0~90°elbow, tee, cross 45°,60°Wyes(optional parts should be used)
3. Maximum effective pulling force: 14723 N
4. facer power: 4000W 380V 50Hz
5. heater power: 39000 W 380V 50Hz
6. Hydraulic unit power: 4 000W(0~120bar) 380V 50Hz
7. Temp. deviation in surface: 170~250°C ±7°C
Optional parts:
♦ Special clamps for welding flange stub
♦ Special clamps for short spigot fitting
♦ Special clamps for welding Y shape(45° and 60°) fittings
Operation plate/Control box

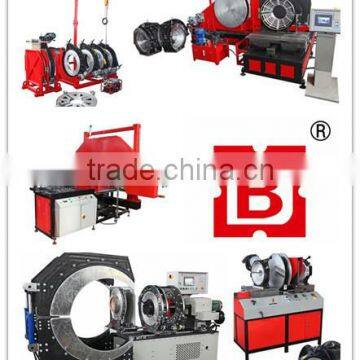

These are our finished product:

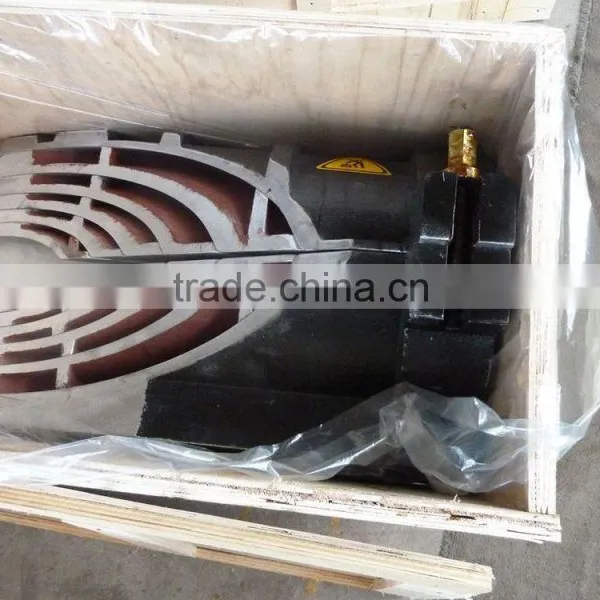

After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
Our exhibition in Shanghai and Gaungzhou
We have good after-sale service and we have a group of experienced engineers, available to help you solve any difficult problems!
Wuxi Shengda, your best and wise choise.
Our quality certificate:
