SHG 1200 Multi-angle Pipe Butt Fusion Welding Machin to Make Pipe Fittings Elbow, Tee,cross

Product:

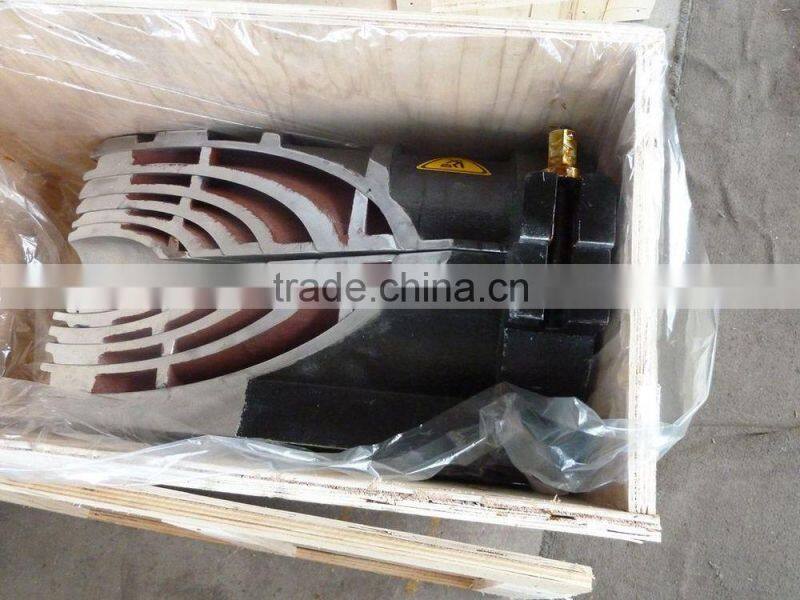

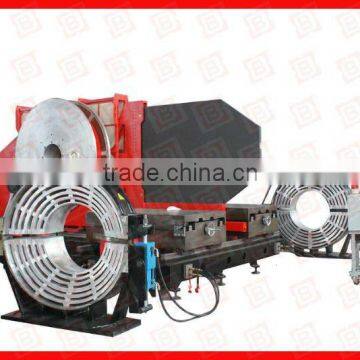

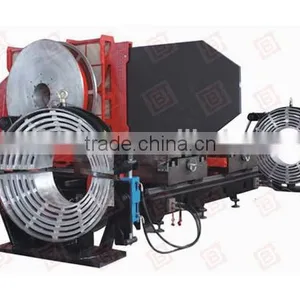

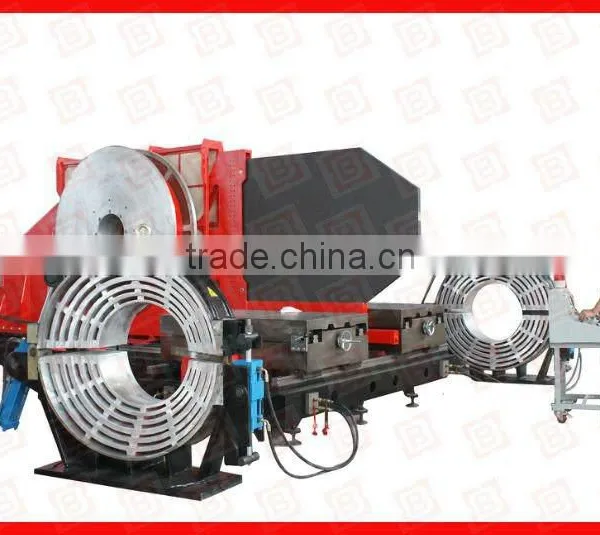

Wuxi Shengda SHG1200 HDPE fittings fabrication automatic welding machine for making elbow tee cross hdpe pipe fittings

SHG 1200 Workshop fitting fusion machine, workshop fitting  welding  machine,angle fitting welding machine,table butt fusion machine,fitting fabrication machine.

Application:

Angle fitting fusion machine is suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.

> Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45° and 60 °) fittings in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
> Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
> Removable PTFE coated heating plate with separate temperature controlling system
> Electric planing tool with safety limit switch enable to start it only when it is locked in the operation position
> Low starting pressure and high reliable seal structure
> Separate two-channel timer records times in soaking and cooling phases.
> Digital pressure meter enables to control pressure accurately
> Linear guide ways are equipped with eating plate, planing tool and dragging plate

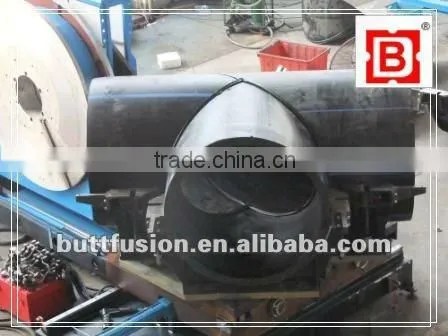

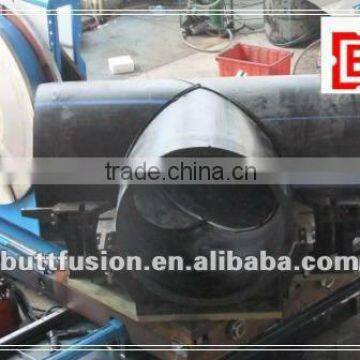

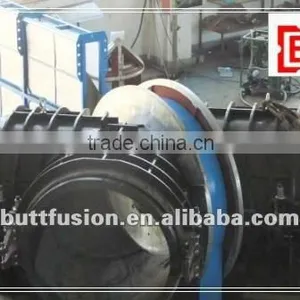

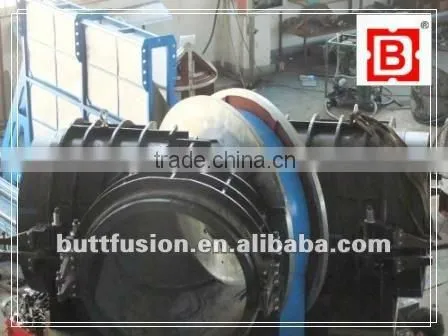

Yshape clamp:

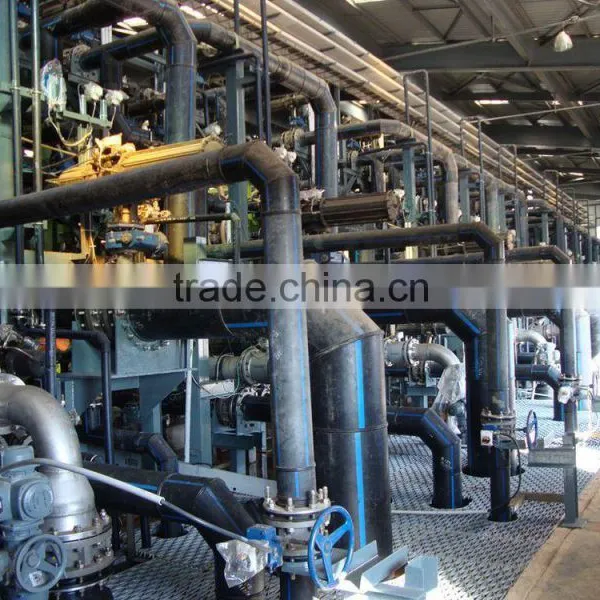

Can be made pipe style:

Features:

1. Removable PTFE coated  heater.

2. Electric  facer  with safety limit switch.

3. Low starting pressure ensures reliable welding quality of small pipes..

4. Separate two-channel timer can show both of soaking and cooling times.

5. High-accurate and shockproof pressure meter indicates clearer readinds.

6. Pivoting  facer  and  heater  bring Convenience to placing and removings.

7. Complies with 98/37 and 73/23 EEC standard.

Technical specifications:

1.  Welding range: 630—1200mm in diameter

2.  Application: 0~90°elbow, tee, cross 45°,60°Wyes(optional parts should be used).

3.  Maximum effective pulling force:   36537N

4.  facer  power:        4000W      380V   50Hz

5.  heater  power:      62000W     380V  50Hz

6.  Hydraulic unit power: 7500W(0~120bar)   380V  50Hz

7.  Temp. deviation in surface:  170~250°C   ±10°C

Optional parts:

* Special clamps for welding flange stub

* Special clamps for Y shape (45 and 60 degree)
