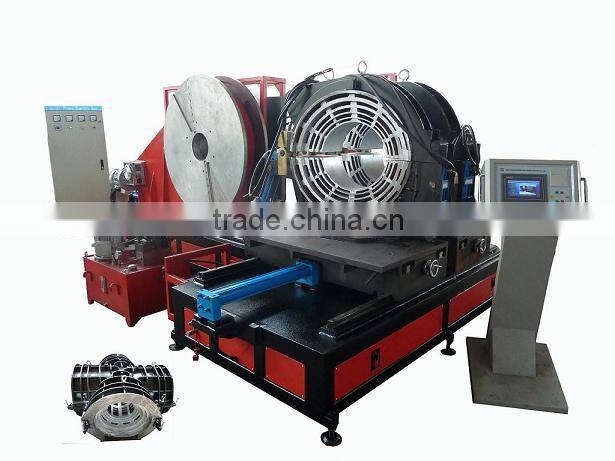

Automatic plastic pipes workshop fitting welding machine to make elbow, tee,cross fittings SHG630/315
SHG630 PE pipe fitting fabrication machine, plastic pipe fitting fusion machine,fitting fusion machine, workshop fitting welding machine; Angle fitting welding machine, table butt fusion machine, fitting fabrication machine
Application:
Automatic plastic pipes workshop fitting welding machine SHG630/315 with printing function is suitable for fabricating elbow, tee, cross and wye shape (45°and 60°) Fittings of PE, PP, PVDF in workshop.
Features:
1. Removable PTFE coated heater.
2. Electric facer with safety limit switch.
3. Low starting pressure ensures reliable welding quality of small pipes.
4. Separate two-channel timer can show both of soaking and cooling time.
5. High-accurate and shockproof pressure meter indicates clearer readinds.
6. Pivoting facer and heater bring Convenience to placing and removing.
7. Complies with 98/37 and 73/23 EEC standards.
8. New function: Automatic machine can print out all the technical parameters as soon as the welding finished
Technical specifications:
1. Welding range: 315 — 630mm in diameter 315mm,355mm,400mm,450mm,560mm,630mm
2. Application: 0~90°elbow, tee, cross 45°,60°Wyes(optional parts should be used)
3. Maximum effective pulling force: 14723 N
4. facer power: 30 00W 380V 50Hz
5. heater power: 16420 W 380V 50Hz
6. Hydraulic unit power: 4 000W(0~100bar) 380V 50Hz
7. Temp. deviation in surface: 170~250°C ±7°C

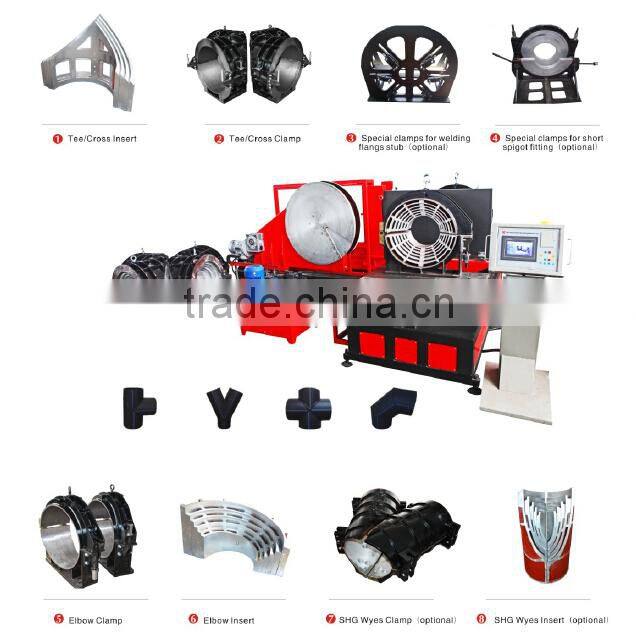

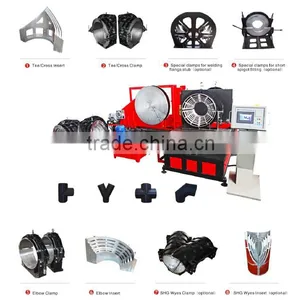

Optional parts:
♦ Special clamps for welding flange stub
♦ Special clamps for short spigot fitting
♦ Special clamps for welding Y shape(45° and 60°) fittings

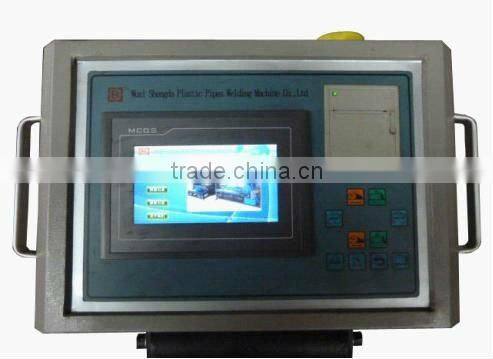

Operation plate/Control box

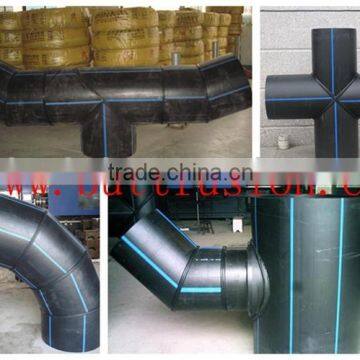

These are our finished product:
After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
Our exhibition in Shanghai and Gaungzhou
We have good after-sale service and we have a group of experienced engineers, available to help you solve any difficult problems!
Wuxi Shengda, your best and wise choise.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. And companies from the site moved to focus on economic development zone of jiangsu province - wuxi hudai industrial zone - joint road (north) 9 D building, with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
Our quality certificate:
