Help CenterSHG630 Automatic Workshop Fitting Welding Machine Suit for Welding Tee Elbow Cross and Y Shape Hdpe Pipe Fittings
Related Products
-
SHG1200 Automatic Hdpe Fittings MachineNegotiableMOQ: 1 Set -
SHG450 PE Pipe Fitting Butt Fusion Welding Machine 200~450mmNegotiableMOQ: 1 Set
-
SHG1000 PE Pipe Workshop Fitting Welding Machine to Weld Elbow Tee and Cross FittingNegotiableMOQ: 1 Set
-
SHG12"/3" PE Fitting Welding Machine for Inch PipeNegotiableMOQ: 1 Set
-
SHG1200/630 Automatic Big Welding Machine to Make Elbow, Tee,cross FittingsNegotiableMOQ: 1 Set
Specifications
1 Automatic workshop fitting welding machine2 Fabricating Elbow, Tee, Cross fittings of PE, PP, and PVDF
3 CE Certificate

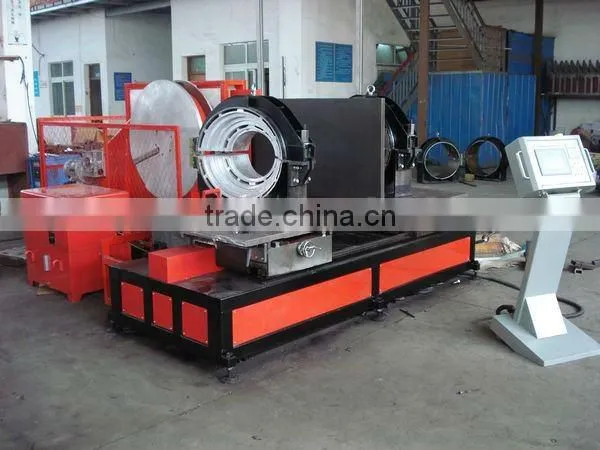

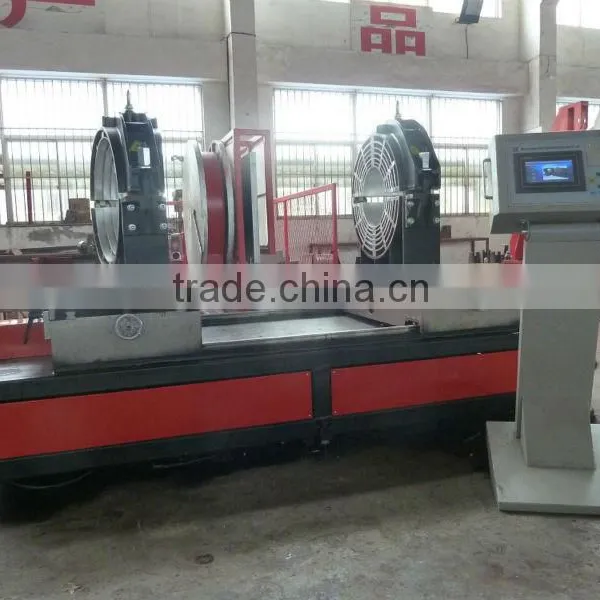

SHG630 Automatic workshop fitting welding machine ,suit for welding tee elbow cross and Y shape hdpe pipe fittings, SHG630 Workshop fitting fusion machine, workshop fitting welding machine,angle fitting welding machine,table butt fusion machine
Application and features :
♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting

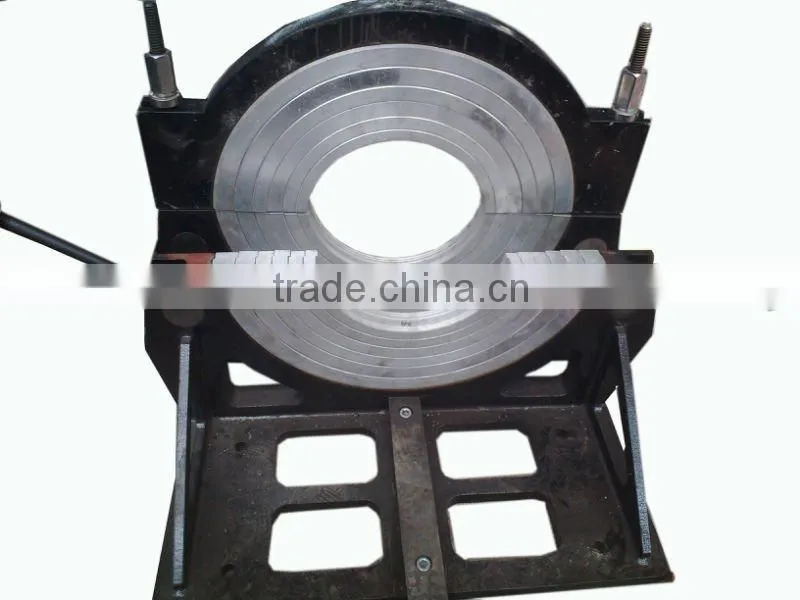

♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure
♦ Separate two-channel timer records times in soaking and cooling phase
.
Model |
SHG630 |
|
Pipe sizes (mm) |
315,355,400,450,500,560,630 |
|
Application |
0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used) |
|
Heating plate Max. Temp. |
270°C |
|
Temp. deviation in surface(170~250°C) |
<±7°C |
|
Pressure adjustable ranges |
0~16MPa |
|
Working voltage |
380V,50Hz |
|
Heating plate power |
22KW |
|
Hydraulic unit power |
2.2KW |
|
Planing tool power |
4.0 KW |
|
Total power |
28.2KW |
|
Weight |
4830KG(Don`t include optional parts ) |
|
Packing |
Cases |
9 Plywood Cases |
Volume |
22.7 CBM |
|
Optional parts:

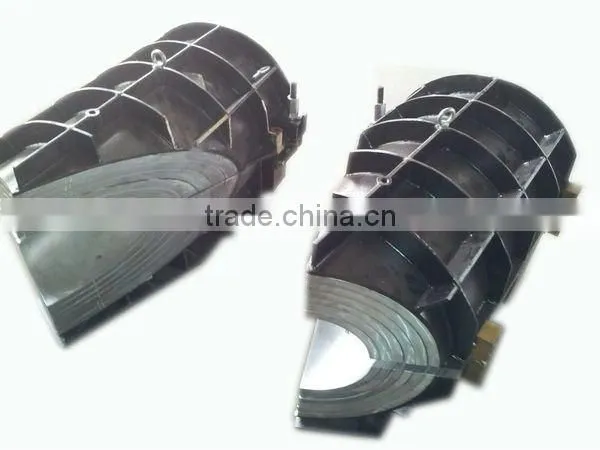

Special clamps for welding flange stub
Special clamps for short spigot fitting

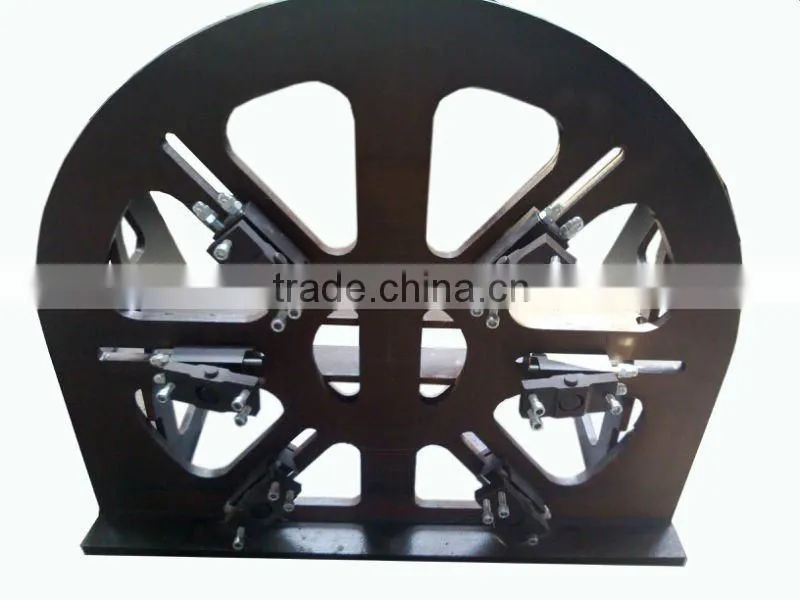

Special clamps for welding Y shape (45° and 60 °) fittings
