Product:

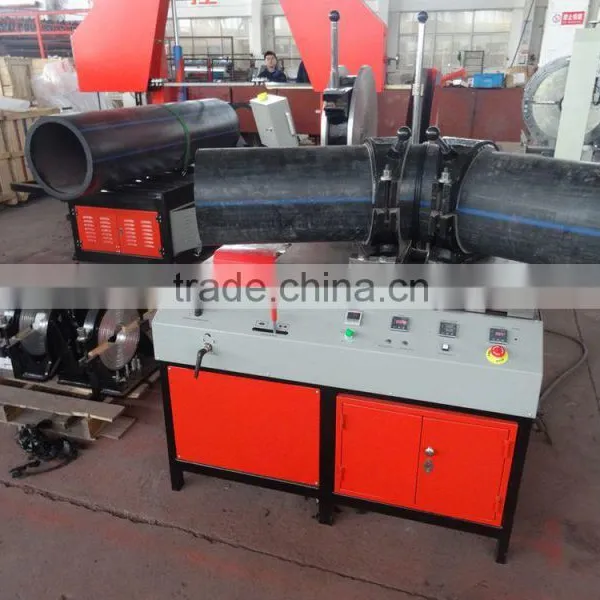

SHG315 Workshop plastic Fitting Fusion Welding Machine for making elbow tee cross hdpe pipe fittings
Type:
workshop fitting fusion machine, workshop fitting welding machine,angle fitting welding machine,table butt fusion machine,fitting fabrication machine
Application and features :
♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure
♦ Separate two-channel timer records times in soaking and cooling phases.
Technical parameters:
* Welding ranges 90mm to 315mm
Segment bends ranges: 90,110,125,140,160,180,200,225,250,280&315mm
90 degrees equal tee and cross ranges: 90,110,125,140,160,180,200,225,250,280&315mm
* Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
* Removable PTFE coated heating plate
* Electric facing tool with safety limit switch
* Low starting pressure and high reliable seal structure
* Separate two-channel timer records times in soaking and cooling phases
* High accurate and digital pressure meter is installed on machine
* SHG315 pivoting trimmer and heater bring convenience to placing and removing.
* Products comply with 98/37/EC and 73/23/EEC standards
* Optional special clamps for welding flange stub
* Optional special clamps for short spigot fitting
* Optional Special clamps for welding Y shape (45 and 60 degrees) fittings
* Working voltage: three phases
~380V±10%, 50Hz (Total power: 7.4kw, including heater: 5.15kw, trimmer: 1.5kw, hydraulic unit motor: 0.75kw)
~415V±10%, 50Hz (Total power: 8.38kw, including heater: 6.13kw, trimmer: 1.5kw, hydraulic unit motor: 0.75kw)

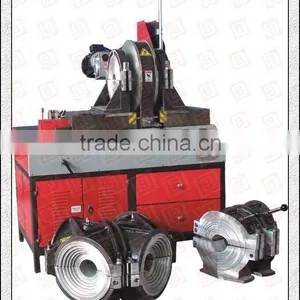

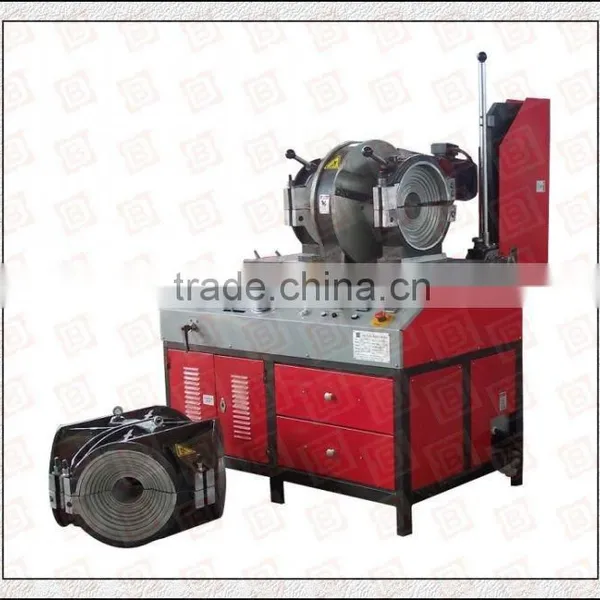

* Whole standard machine consists of main frame (including heater, trimmer and hydraulic system), elbow clamps, tee/cross clamps
Packing list:
Item |
Packing size (mm) |
N.W (kg) |
G.W (kg) |
Remark |
1 |
1350×1140×1660 |
550 |
665 |
Basic frame (include attachments and spare parts) |
2 |
810×430×580 |
90 |
100 |
Cross/Tee inserts(1) |
3 |
810×430×580 |
90 |
100 |
Cross/Tee inserts(2) |
4 |
600×380×540 |
65 |
90 |
Elbow inserts |
Total |
3.1 CBM |
795 |
955 |
|
Who we are ?
WORKFLOW

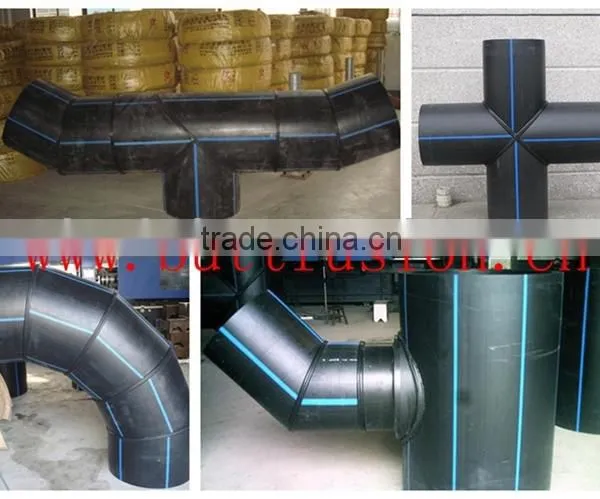

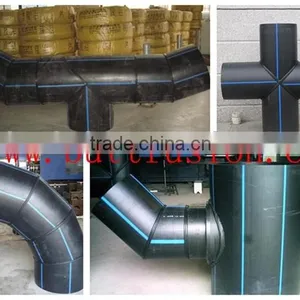

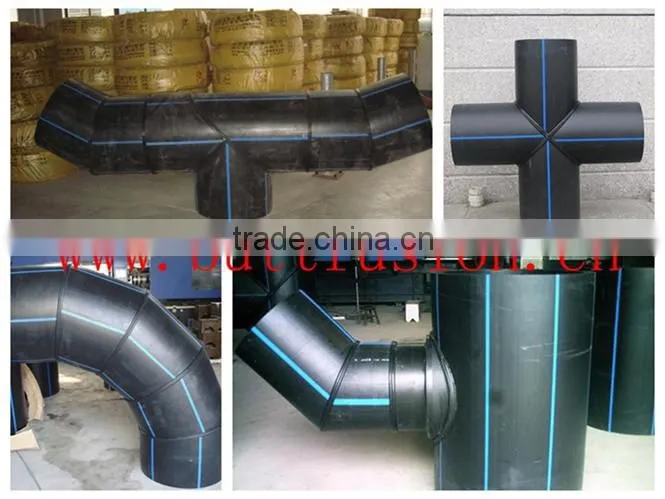

These are our finished product:
After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
*High quality with reasonable price.
*Twelve months warranty and good after-sales service.
*The customs all over the world accept our product.
*Engineers available to service machinery overseas
*We are international company joined German RITHENBERGER tools group and have further development of domestic and international market.
*Number 1 brand in China welding machine field.
