Plastic pipe butt fusion welding machine SHD500/200
- 20 Set / Sets per Month
- Shanghai
- T/T
- Denoh Gas And Oil Pipeline Welding Machine Factory Price Best Pipe Welding Machine
- Automated Pipe Welding Systems Price Advantage Full Automatic Inner Welding Machine
- Pe Pipe Welding Machine Factory Price Inner Ring Seam Welding Machine
- Internal Welding Machine Pipeline Welder Tools Chinese Supplier
- Full Automatic Inner Welding Machine Pipe Welding Equipment Moving Stablely
- Pipeline Welder Tools New High Speed Full Automatic Inner Welding Machine
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | BADA |
Model Number: | SHD500 | Tube Diameter: | 200~500mm | Usage: | PE pipe welding |
Voltage: | 380V(other voltage available) | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

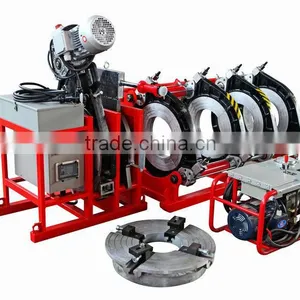

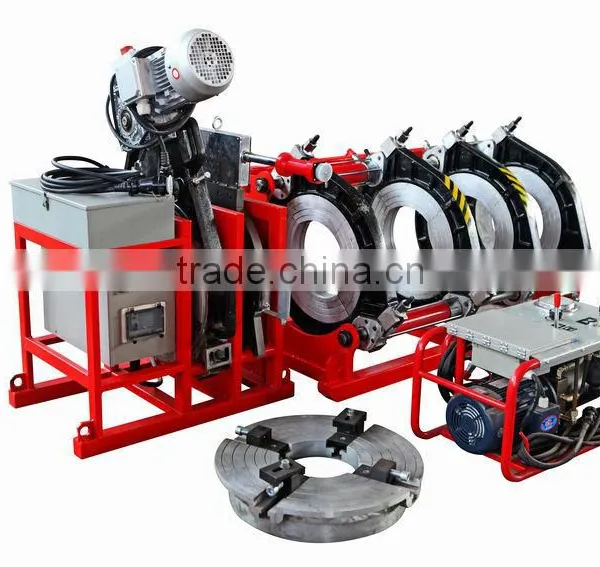

SHD500 polyethylene pipe butt fusion welding machine, plastic pipe butt welding equipment
Application and features:
Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Removable PTFE coated heating plate with high accurate temperature control system;
Electric planing tool with safety limit switch.
Be made of lightweight and high strength material; Specially designed with a clamp opening angle of 45°.
Low starting pressure ensures reliable welding quality of small pipes.
High accurate and shockproof pressure meter indicates clearer readings.
Changeable welding position enables to weld various fittings more easily.
Separate two-channel timer records time in soaking and cooling phases.
The main parameters:
Model | SHD500 |
Pipe size(mm) | 200,225,250,280,315,355,400,450,500 |
Heating plate Max. Temp | 270°C |
Temp. deviation in surface(170~250°C) | <±7°C |
Pressure adjustable ranges | 0-6.3Mpa |
Working voltage | 380V,50Hz |
Heating plate power | 9.35KW |
Planing tool Power | 1.5KW |
Hydraulic unit power | 1.5KW |
Total power | 12.35KW |

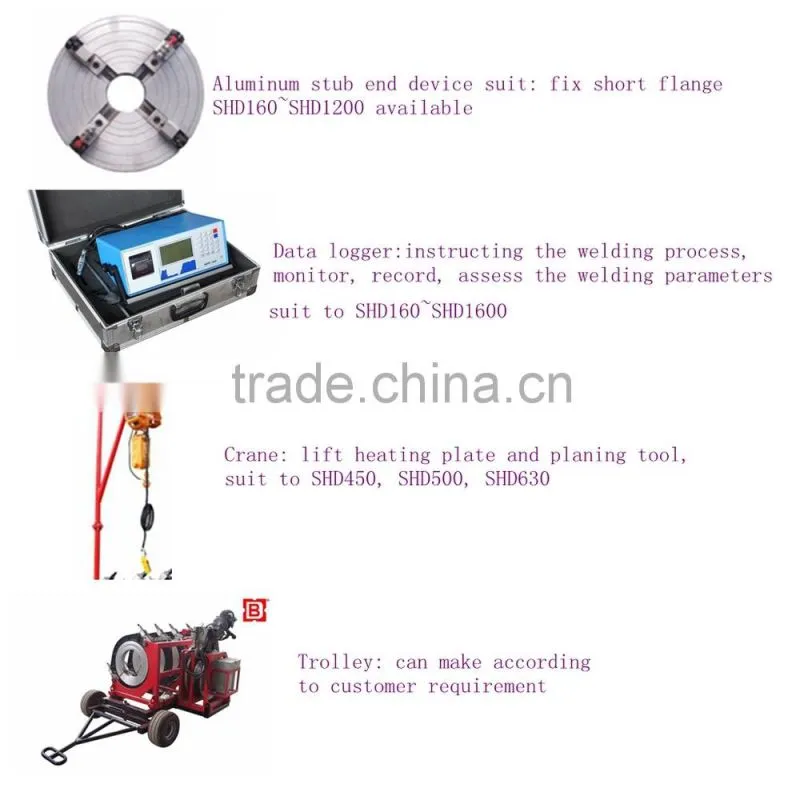

Optional parts:
Company profile
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools requiredunder the ISO9001 system and approved to CE standards by SGS.
