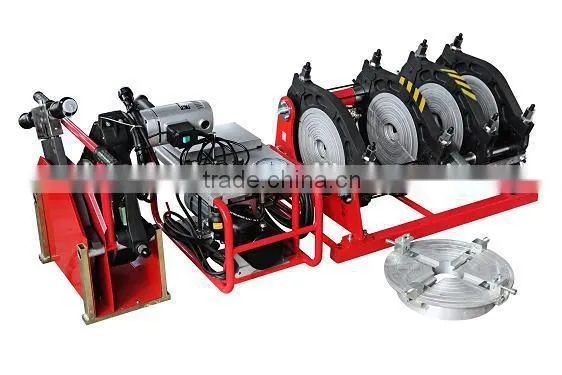

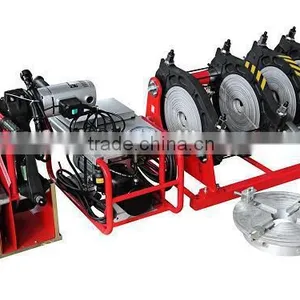

SHD315 PE pipe butt fusion machine suit for Pipes from 90 to 315mm
Application and Features
1. Suit for butt welding of plastic pipes and/or fittings made of PE, PP and PVDF in worksite or workshop
2. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts
3. Removable PTFE coated heating plate with high accurate temperature control system
4. Electrical planing tool
5. Be made of lightweight and high strength material; simple structure, small and delicate
6. Low starting pressure ensures reliable welding quality of small pipes
7. Changeable welding position enables to weld various fittings more easily
8. Separate two-channel timer records time in soaking and cooling phases
9. High-accurate and shockproof pressure meter indicates clearer readings
Optional parts:
1. Stub end device for short flange
2. Data logger
3 Trolley
Technical parameters
| Model | SHD315/90 HDPE pipe hydraulic field butt fusion machine |
| Pipe size (mm) | 90,110,125,140,160,180,200,225,250,280,315 |
| Heating plate max. Temp. | 270 centigrade degrees |
| Temp. deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~6.3 MPa |
| Working voltage | 220V 50Hz |
| Heating plate power | 3.5 KW |
| Planing tool power | 1.1 KW |
| Hydraulic unit power | 0.75 KW |
| Total power | 5.35 KW |
| Weight | 216 KGS |
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of buttfusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
Good quality and excellent after sale service
Contact us:
1. Contact name is Ms. Nancy Wang (Marketing and sales manager)
2. Skype is happy-nancy-wang
3. Telephone is +86-510-85522321
4. Mobile is +86-15052428866
Our workshop:
