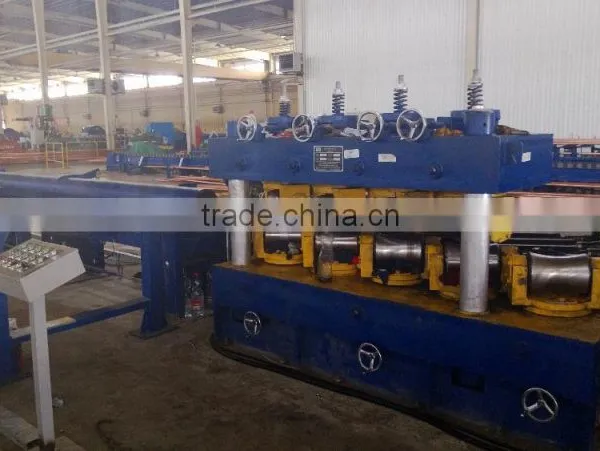

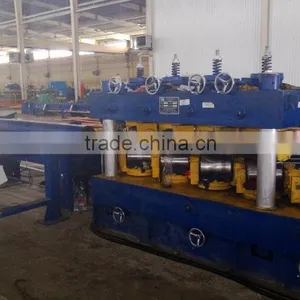

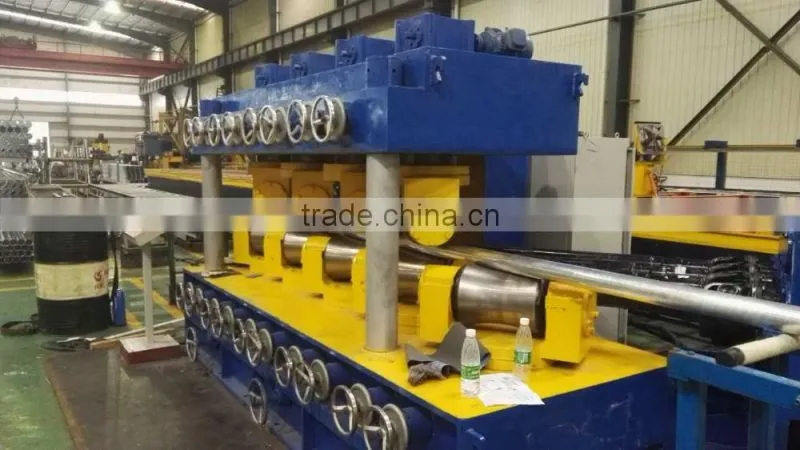

Multi-roll straightening machine for metal bar rod and pipe
- 200 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- GT-TZ14B Straightening Machine
- Low/Middle/High Carbon Steel Straightening Machine Steel Wire Drawing Machine for Drawing Wire
- Low/Middle/High Carbon Steel Straightening Machine Steel Wire Drawing Machine for Drawing Wire
- Coil Feed Laser Blanking Line
- Decoiler Straightener
- Precision Pressfeed Stamping Line
Product Details
Condition: | New | Type: | Other, Straightener & Cutter | Use: | Bar |
Place of Origin: | Shandong, China | Brand Name: | Haige | Model Number: | LG |
Voltage: | 380V/440V | Power(W): | 16Kw | Dimension(L*W*H): | 2800x750x1160mm |
Weight: | 1200kg | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
No. | Model | Straightening range | speed | Curvature before straightening | Curvature after straightening | Motor power | ||
Min. diameter | Max. diameter | Tensile strength | ||||||
mm | mm | Mpa | M/min | M/mm | M/mm | KW | ||
1 | LGJ12 | 4 | 12 | ≤650 | ≤40 |
≤15 |
≤1 | 0.75*2 |
2 | LGJ16 | 5 | 16 | 1.1*2 | ||||
3 | LGJ20 | 6 | 20 | 1.5*2 | ||||
4 | LGJ30 | 8 | 30 | 5.5*2 | ||||
5 | LGJ40 | 10 | 40 | 11*2 | ||||
6 | LGJ60 | 15 | 60 | 15*2 | ||||
7 | LGJ80 | 20 | 80 | 22*2 | ||||
8 | LGJ100 | 40 | 100 | 30*2 | ||||
9 | LGJ120 | 40 | 120 | ≤490 | ≤30 | 45*2 | ||
10 | LGJ160 | 60 | 160 | 55*2 | ||||
11 | LGJ180 | 80 | 180 | 75*2 | ||||
12 | LGJ220 | 80 | 220 | 90*2 | ||||
13 | LGJ325 | 120 | 325 | 110*2 | ||||
14 | LGJ425 | 160 | 425 | 132*2 | ||||
15 | LGJ680 | 220 | 680 | 160*2 |
Yantai Haige Machine Tools Co., Ltd is a professional company in
manufacturing of *Round metal bar peeling machine
*Round metal bar straightening machine
*Skiving roller burnishing machine
*Piston rod polishing machine
Certificate
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
