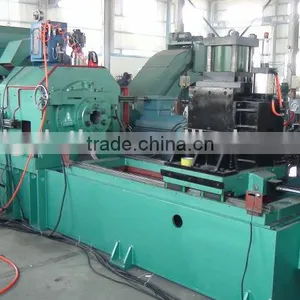

Peeling Machine

Name: Peeling Machine
Brand: haige
SKU: 104609149
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Yantai Haige Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 130:770

Place of Origin Shandong, China

Brand Name haige

Model Number WXC130S

Voltage 380V/440V

Power(W) 110KW

Dimension(L*W*H) 15.3m X 3.5m X 3m

Weight 29T

Certification ISO9001

After-sales Service Provided Overseas service center available

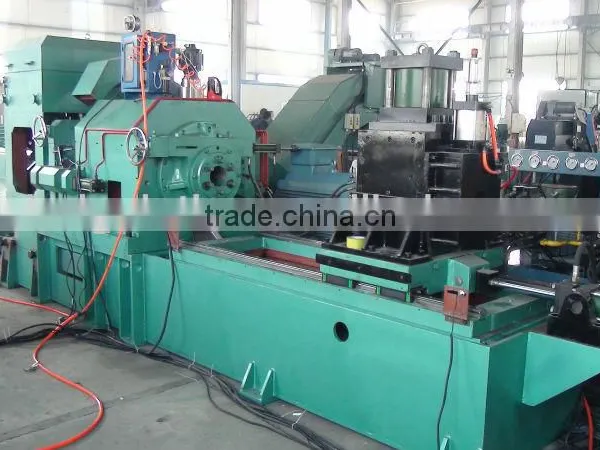

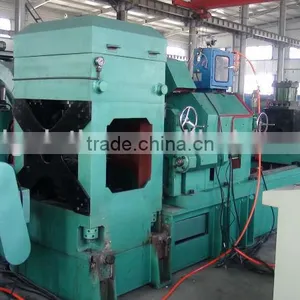

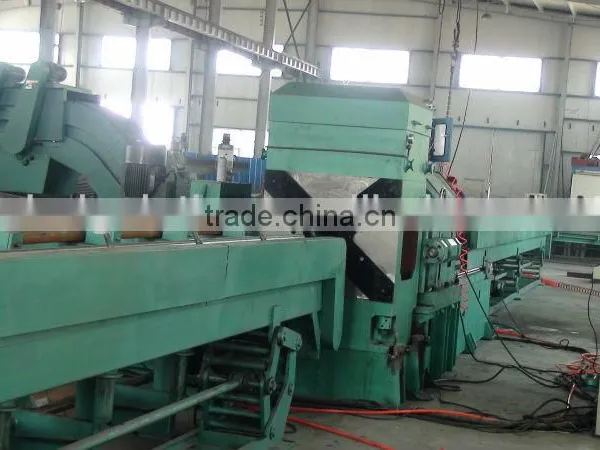

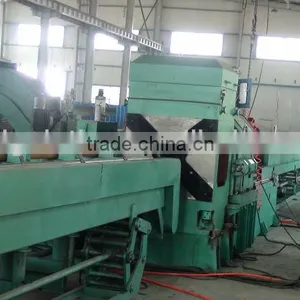

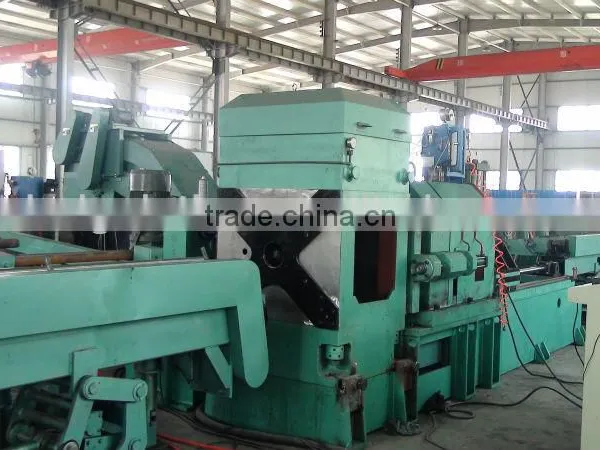

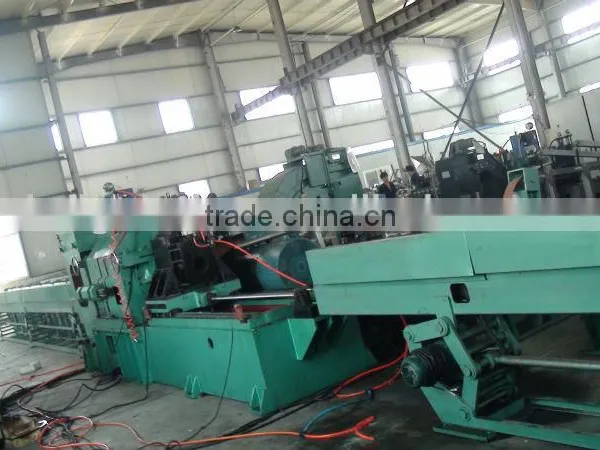

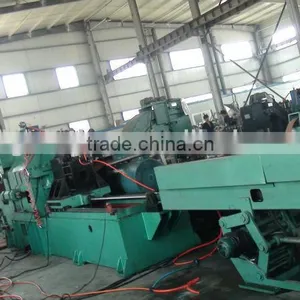

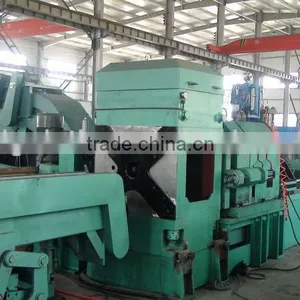

CENTERLESS LATHE (PEELING MACHINE)
CENTERLESS LATHE (PEELING MACHINE)
MODEL		WXC130S
RAW MATERIALS	Turning Range(mm)	Φ40~Φ135
	Raw Material Length(mm)	≥2600
	Tensile Strenth(Mpa)	≤1100
	Surface Hardness	≤HB320
	Curvature(mm/m)	≤1.50
	Diameter Tolerance	≤+IT15/2 or more or less 1% of diameter tolerance
	Roundness	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25~50um
FINISHED GOODS	Diameter Range	Φ35~Φ135
	Unilateral Turning Depth (mm)	1~2
	Diameter Tolerance	≤IT9
	Surface Roughness(Ra)	≤12.5μm
	Curvature(mm/m)	≤1.5
	Roundness	50% of the diameter tolerance (Φ20~Φ30≤0.042; Φ30~Φ50≤0.050; Φ50~Φ80≤0.060)
Turning Speed(m/min)	0.8˜1.55 (reduce feed speed for continuous materials)
Cutter Speed	240~670 (6 pole) 360~1000 (4 pole)
Main Motor Power(KW)	110
Feed Motor Power(KW)	11(Pinch of raw materials)
Main Motor Dimentions(m)	5.3 X 3.5 X 3
Auxiliary Equipment Dimention(m)	6
Main Motor Weight (including auxiliary weight) (t)	20.5 (29)
Total Installed Capacity(KW)	130
