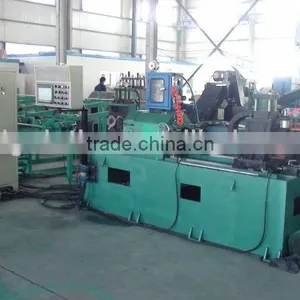

cheap turning machining parts
- 10 Set / Sets per Month
- qingdao port
- T/T
Product Details
Condition: | New | Type: | Turning Center | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 130:770 | Place of Origin: | Shandong, China |
Brand Name: | haige | Model Number: | WXC40S | Voltage: | 380V/440V |
Power(W): | 56KW | Dimension(L*W*H): | 12.5mX2.2mX1.5m | Weight: | 6T |
Certification: | ISO9001 | After-sales Service Provided: | Overseas service center available |
Product Description

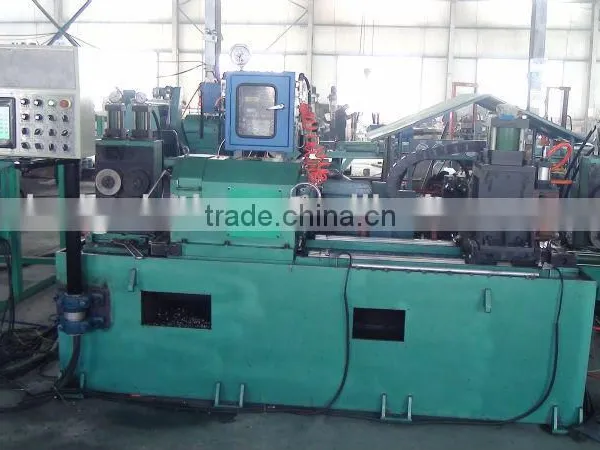

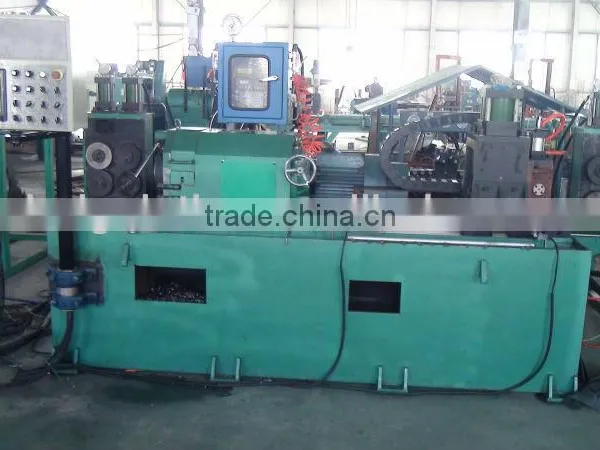

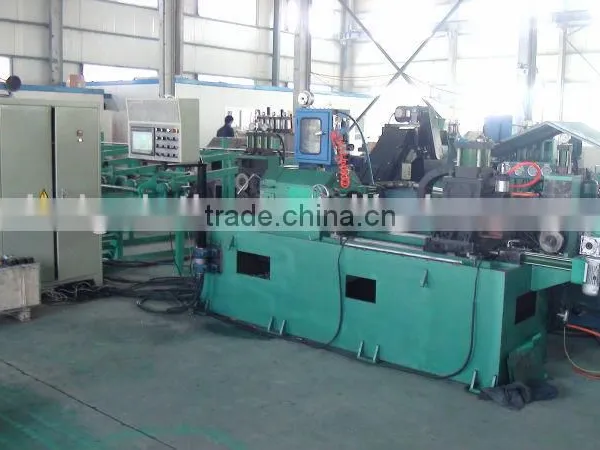

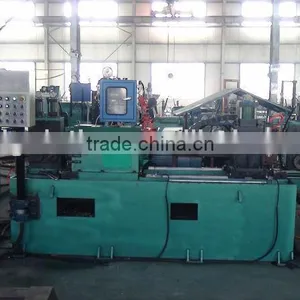

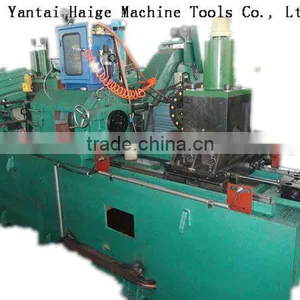

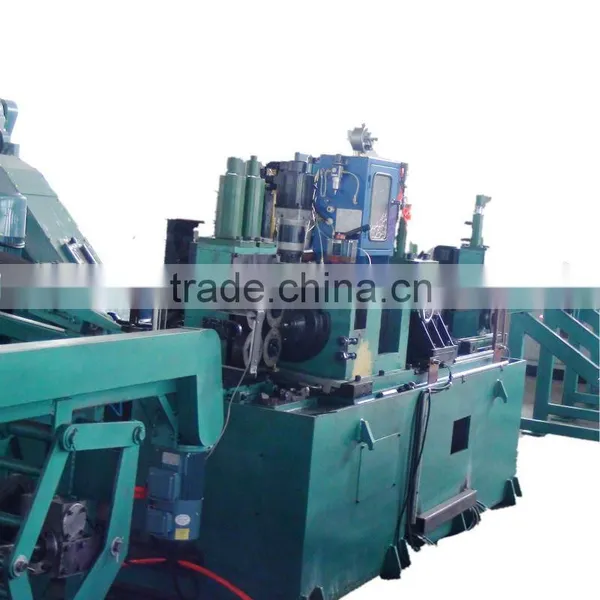

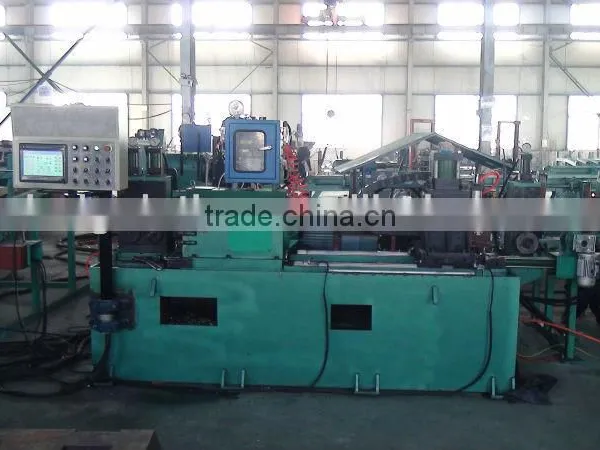

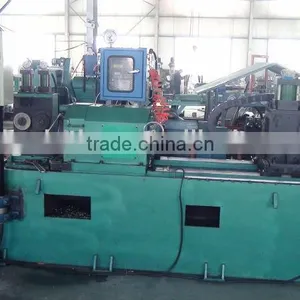

cheap turning machining parts
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
The company is equipped with specialized technical research and development department, and its ability of research and development, configuration of software and hardware and scale of personnel rank first in the industry. From design concept, technological level, production scale, quality in use to after-sale service, the company attains domestic leading level. It owns professional factories for machining and assembling, and full set of advanced equipment of precision machining, so it can produce high-precision core components by itself. Further more, the company possesses abundant ability of research and development, and perfect after-sale service system.
The company regards quality of products as the life. It has passed ISO9001 international quality system certification, and strictly enforces the ISO9001 international quality management system. Dependent on strong software and hardware facilities and strict quality control, the company has passed the acceptance of State Administration for Entry-Exit Inspection and Quarantine Bureau, and furthermore, centerless lathe and straightening machine have won the Export License of Product Quality.
Diameters of products manufactured by the machine vary from Φ5mm to Φ350mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
Specification | WXC40S | |
RAW | Diameter Range(mm) | Φ6˜Φ42 |
Raw Material Length(mm) | ≥1400 | |
Tensile Strength (M pa) | ≤1100 | |
Surface Hardness | ≤HB320 | |
Curvature(mm/m) | ≤1.5 | |
Diameter Tolerance | according to GB 702-88 second group | |
Roundness | ≤50% of the diameter tolerance | |
Surface Roughness(Ra) | ≤25˜50um | |
FINISHED | Diameter Range | Φ5.5˜Φ40 |
Unilateral Cutting Depth(mm) | 0.2-1 | |
Diameter Tolerance | ≤IT9(standard tolerance grade) | |
Surface Roughness(Ra) | ≤6.3μm | |
Roundness | ≤0.03 | |
Feeding Cutting Speed(m/min) | 1.0~10.0(for continuous chips and high strength and hardness should reduce the speed | |
Cutter Head Rotational Speed(rpm) | 450˜1250 | |
Main Machine Motor Power(KW) | 45 (4 Poles) | |
Auxiliary Machine Motor Power(KW) | 4(feeding part)+0.55((discharging part) 4 Poles | |
Main Machine Outline Dimensions (Length*Width*Height) m | 2.5mX2.2mX1.5m (for your reference) | |
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m | 12.5mX2.2mX1.5m (for your reference) | |
Main Machine Weight | 3.5(6.0) | |
Total Capacity (KW) | 56 | |
Compressed Air Source(user prepare by themselves) | 0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
Applications
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel, others;
2. Nonferrous metals:
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge
(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).
Process
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
Sky Lyu | ||
haigewmlv |
| |
18663865109 | ||
+86-18663865109 | ||
2597918075 | ||
186638865109 | ||
If you have any other questions, just feel free to contact me at any time.
Also welcome to visit our factory for further negotiation!
