Cheap Scaling Machine for Steel Bar
- Qingdao seaport
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Haige | Model Number | WXC80C | |
| Voltage | 380/440V | Rated Power | 45KW | |
| Dimension(L*W*H) | 15.0m X 5.0m X 2.4m | Weight | 11.5t | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

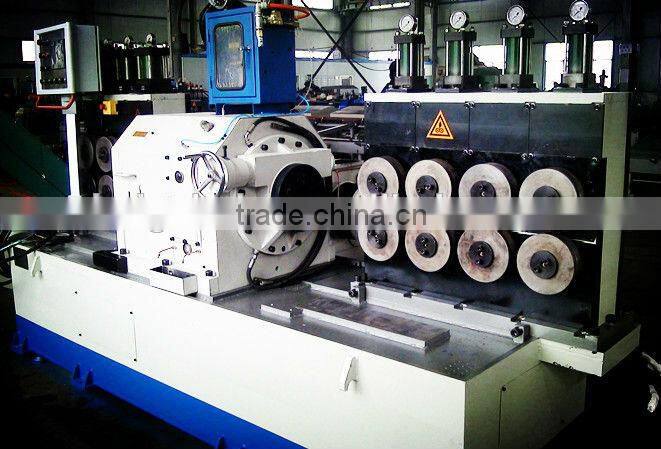

Cheap scaling machine for steel bar

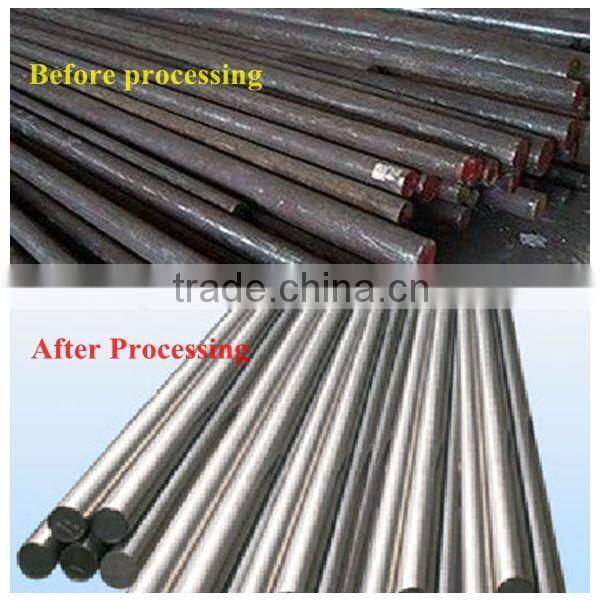

Series WXC centerless lathe is the highefficiency lathe which is specialized in rough and precise processing of the metal bars surface. It removes the decarburized layer, cracks and other defects from the surface of the bars with high precision.
In the working process, the metal bar doesn’t rotate and just walks forward. The cutter tools are driven to rotate by the cutter head to rotate fastly to peel the surface of the bars.
Advantages compared with the general lathe
1. The over-long metal bars or the wire rods can also be processed.
2. The precessing speed: 1~12m/min which is several times faster than the general lathe.
3. High precision. The diameter tolerance ≤IT9 while the surface roughness ≤6.3μm after peeling. The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Techinical Parameters
Applications
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel, others;
2. Nonferrous metals:
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge
(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).
Warranty period: 1 year
Free long-term techincal support
Excellent 24h fast response service

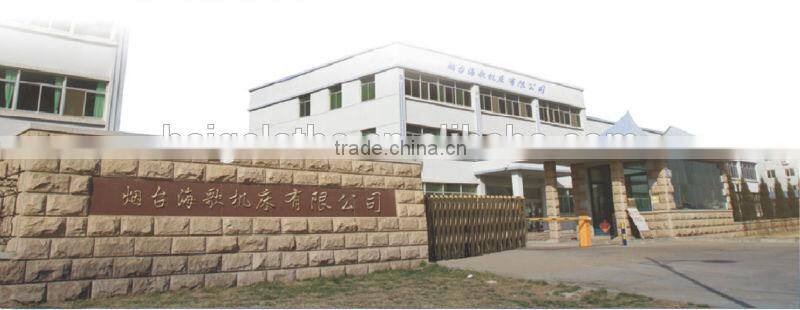

Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) is a professional company engaged in producing round steel finishing equipments, such as series WXC centerless lathe(commonly known as peeling machine), Series JY two-roll straigtening machine, abrasive belt grinder, series HGX lead screw thead milling machine and auxiliary machines, etc. Haige has own professional R&D team, providing customers with perfect techinal guidance and support. It owns professional machining center and controls the quality of the products strictly.Diameters of products manufactured by the machine vary from Φ5mm to Φ350mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels.
Our Certificates
| Sky Lyu | |
haigewmlv | | |
+8618663865109 | ||
+8618663865109 | ||
2597918075 | ||
+86186638865109 | ||
If you have any other questions, just feel free to contact me at any time.
Also welcome to visit our factory for further negotiation!
Contact Us
- Yantai Haige Machine Tools Co., Ltd.
- Contact nameJingping Ren Chat Now
- Phone86-535-6726618
- Address1#,Jing 7 Rd, High-Tech Zone, Yantai, Shandong
