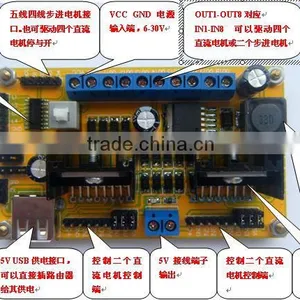

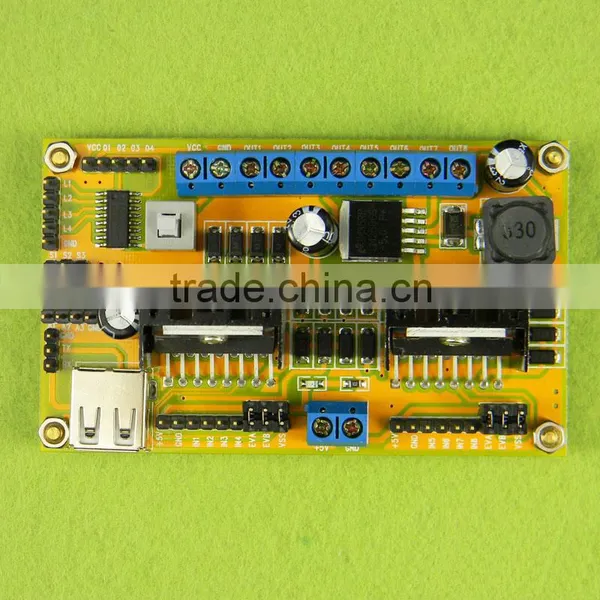

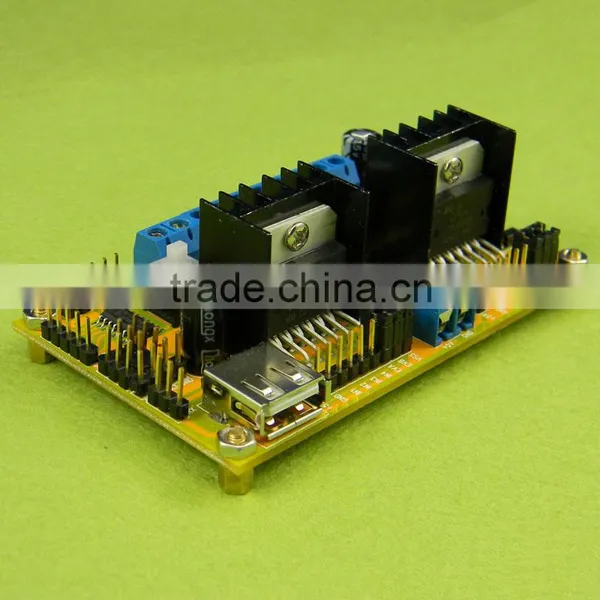

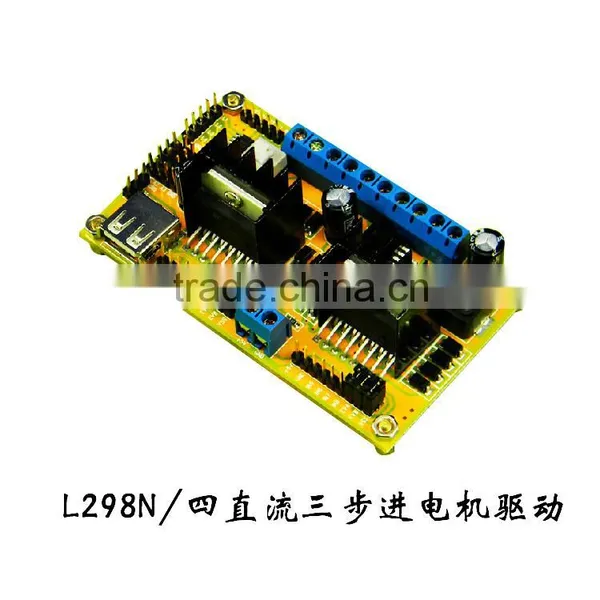

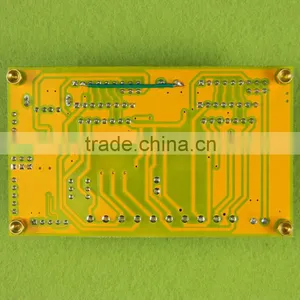

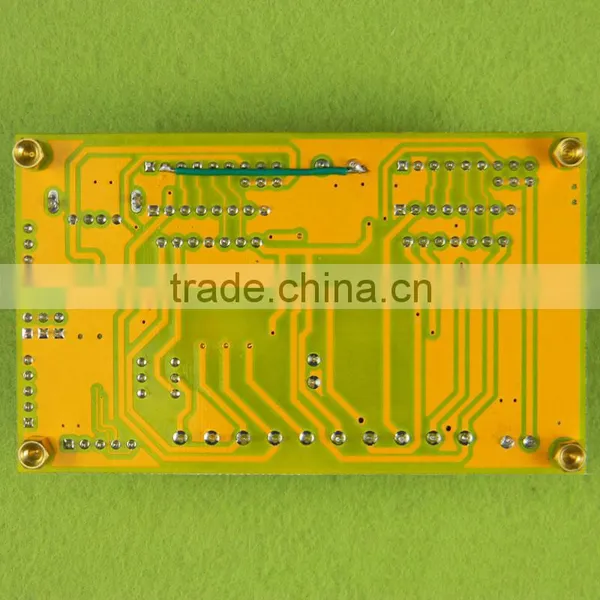

Help CenterL298N/ Four DC Three Stepper Motor Drive / Drive Power Supply Integrated /WIFI Car Driver Board
Related Products
-
USB OLED 3 Tester Four Bit Voltage Current Meter Power Capacity Mobile Power Supply DetectionUS$ 1 - 100MOQ: 1 Piece -
White USB Voltage and Current Meter Power Capacity Mobile Power Test Detector 0.91 Inch OLED DisplayUS$ 1 - 100MOQ: 1 Piece
-
MEGA2560 R3 Ard Development Board 2012 New Version, ATMEGA16U2-MUUS$ 1 - 100MOQ: 1 Piece
-
Boost Module 12v19v Boost 12V Liter 24v5a12v Car Boost Module 150W High PowerUS$ 1 - 100MOQ: 1 Piece
-
5 in 1 Ultrasonic Module / Temperature Compensated /51 System Board + Ultrasonic Distance Measurement ModuleUS$ 1 - 100MOQ: 1 Piece
Data download link:/s/1qWHjkqK
2Product parameters:
OneDriver chip:L298NdoubleHBridge DC motor drive chip
TwoDrive part terminal power supply rangeVs: +5V~ +30V; If the board is required to take power, the scope of the power supplyVs:+6V~+30V
3.Driving part peak currentIo: 2A
FourLogical part of the operating current range: 0~36mA
SiControl signal input voltage rangeIN2 IN3 IN4 IN1):
Low level: -0.3V = Vin = 1.5V
High level:2.3V = Vin = Vss
7.Enable signal input voltage rangeENB ENA):
Low level: -0.3 = Vin = 1.5V(control signal is not valid)
High level:2.3V = Vin = Vss(control signal effective)
EightMaimum power consumption:20W(temperatureT=75CWhen)
NineStorage temperature: -25C~ +130C

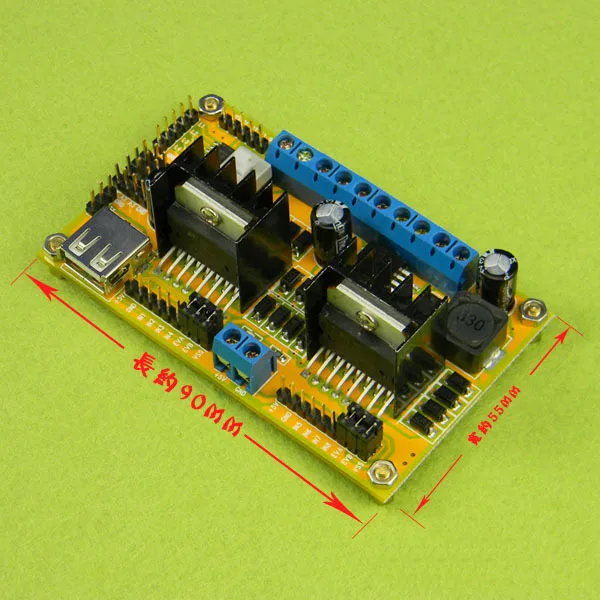

TenDrive plate size55mm*45mm*33mm (With a fied cylinder and fin height)

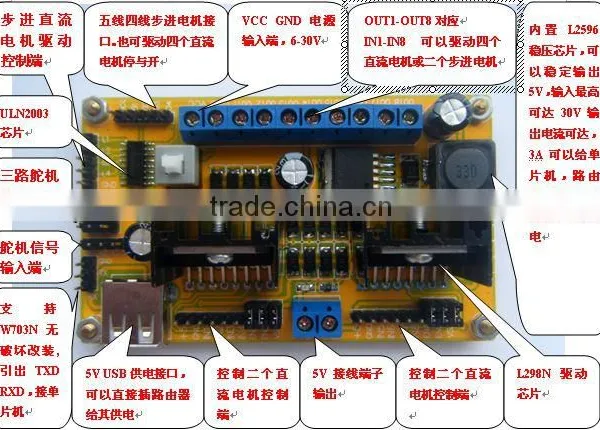

TwelveOther etensions: the control direction indicator light, the logic part of the board to take electrical interface.
DC motor, stepper motor drive module.
Support 2 DC motor drive control, 4 phase stepper motor control.
L298N is a special driver IC, which belongs to the H Bridge integrated circuit. The difference between L293D and is that the output current is increased and the power is enhanced. Its output current is 2A, the maimum current is 4A, the maimum operating voltage is 50V, which can drive inductive load, such as high power DC motor, stepping motor, deceleration motor, servo motor, solenoid valve, etc., especially the input can be directly connected with the microcontroller, which is easily controlled by the microcontroller. When the DC motor is driven, the stepper motor can be directly controlled, and the motor can be turned and inverted, so that the function can only change the logic level of the input terminal.
This module has the characteristics of small size and convenient control. Using this module will enable you to control the motor, you can respond to the need for a large power stepper motor.
This module can control the two phases, three-phase, four phase of the motor.
