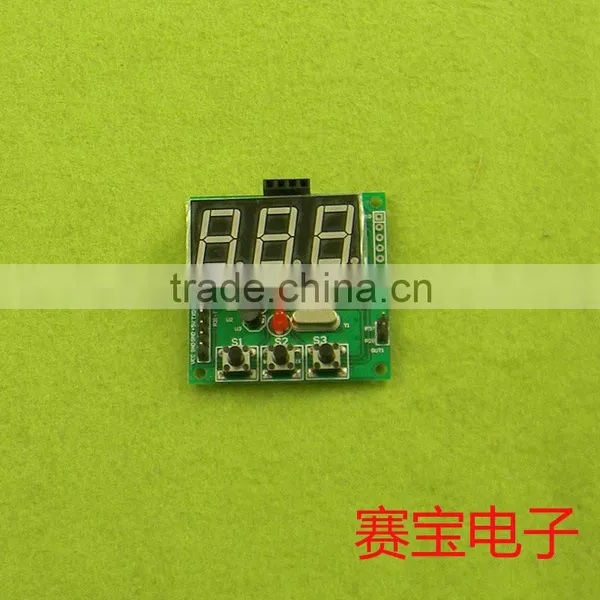

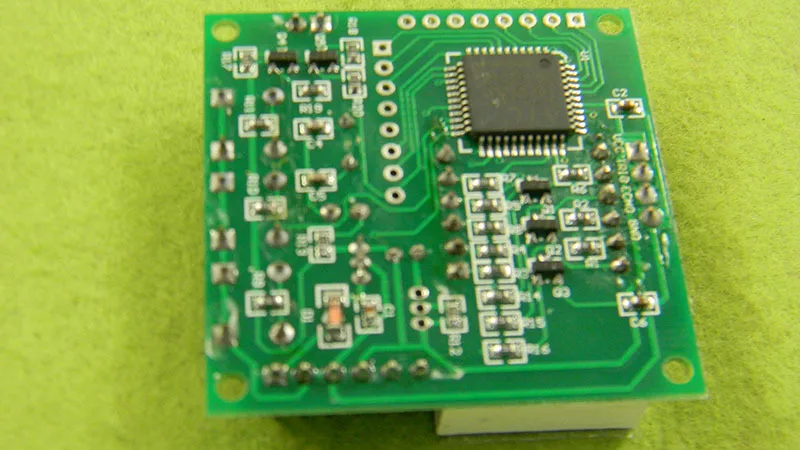

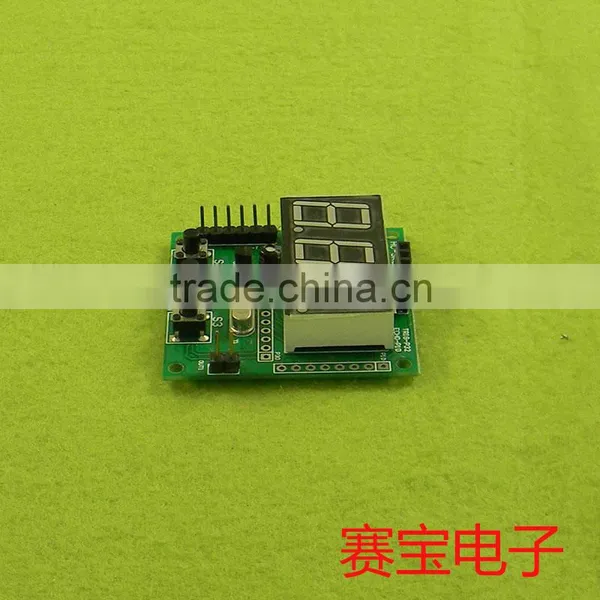

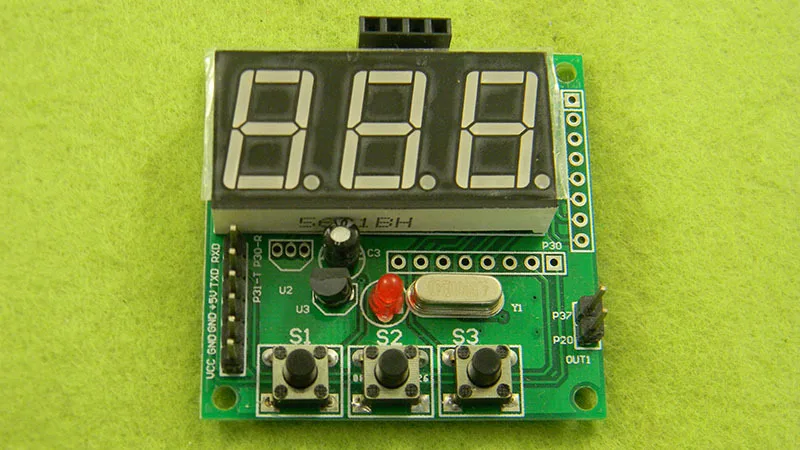

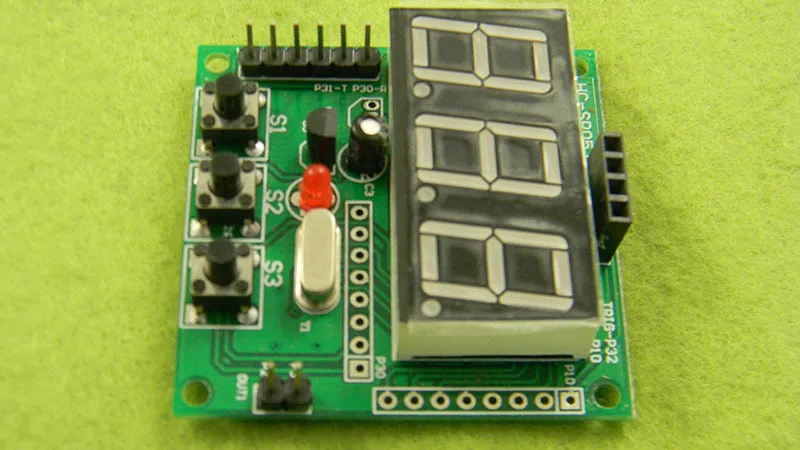

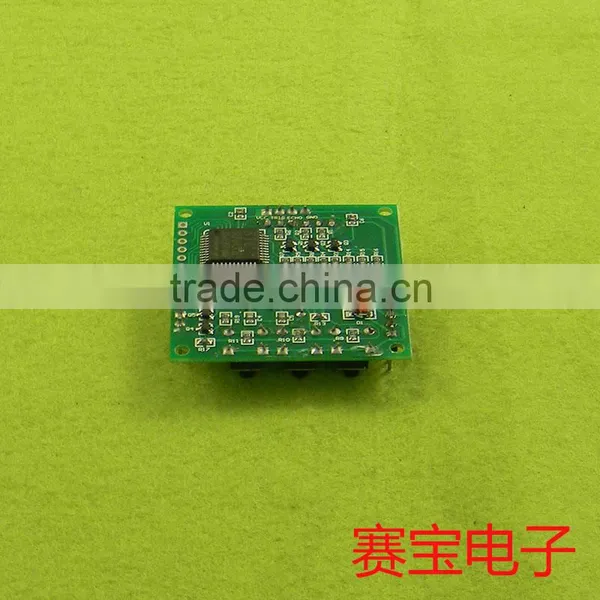

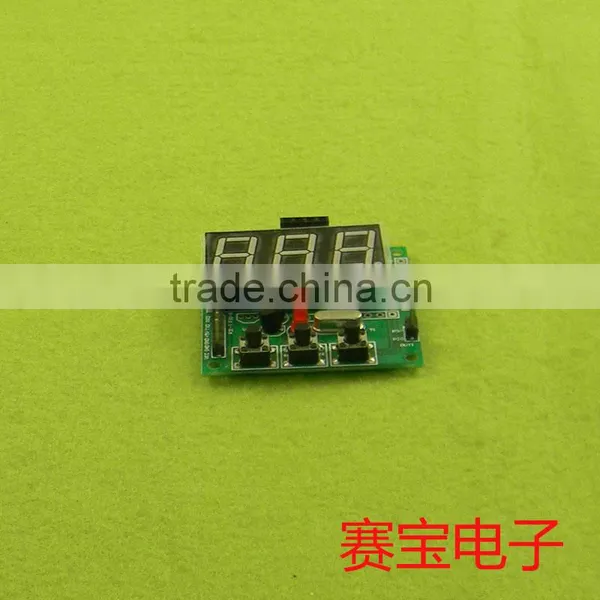

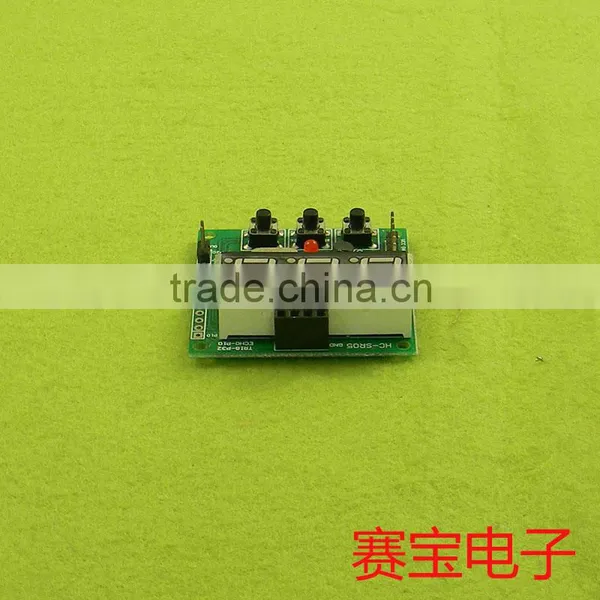

Help Center5 in 1 Ultrasonic Module / Temperature Compensated /51 System Board + Ultrasonic Distance Measurement Module
Related Products
-
VGA Compression Chip AD603AQ DIP-8 High Gain Precision Ceramic LineUS$ 1 - 100MOQ: 1 Piece -
5A DC-DC Solar Controller MPPT Decompression Module With Digital Display Constant CurrentUS$ 1 - 100MOQ: 1 Piece
-
Computer Cable Crimping Pliers FC Crimping Pliers for Pressing the FC Terminal LineUS$ 1 - 100MOQ: 1 Piece
-
2.8 Inch TFT LCD Screen With Touch Screen Module STM 51 MCU Support SD CarUS$ 1 - 100MOQ: 1 Piece
-
5A 19.99V Digital DC Voltage MeterUS$ 1 - 100MOQ: 1 Piece
Ultrasonic ranging display module, STC single-chip system board, completely modest 51 series.
Perfect combination: single chip system board + ultrasonic distance measuring module
Functional features:
1, display module is quite in a single-chip microcomputer system board, using stc10f04, Qian Rong 51 MCU and directly with serial circuit 232 can download the debugging, IO port output pin, function keys, three digital display function.
2, the direct use of our ultrasonic distance measurement module can be measured distance, you can alarm function by setting distance.
3, with DS18B20 temperature compensation circuit (no need to connect 1820}
4, can provide the range of the system can display the schematic diagram of the system.
5, wide voltage work DC:5-12V
6, you can use this system module to carry out a lot of demo program, download the convenience of debugging.
7, plate size: 44*44 mm
Functional features:
1, display module is quite in a single-chip microcomputer system board, using stc10f04, Qian Rong 51 MCU and directly with serial circuit 232 can download the debugging, IO port output pin, function keys, three digital display function.The output of the two switch output, but also has a special connection end DS18B20.
2, the direct use of our ultrasonic distance measurement module can be measured distance, you can alarm function by setting distance.
3, with DS18B20 temperature compensation circuit (no need to connect 1820}
4, can provide the range of the system can display the schematic diagram of the system.
5, wide voltage work DC:5-12V
6, you can use this system module to carry out a lot of demo program, download the convenience of debugging.
7, plate size: 44*44 mm
Electrical parameters:
Working voltage: 5V or 12V
Test range: 2-400CM
Output mode: two switch output, output control relay
Keys to adjust the distance: according to the buttons to adjust the distance, in the appropriate range of the output alarm
Press key usage method:
1, long press the S3 key for 3 seconds or so, showing the emergence of LLL.
2, then press the S3 key, the display appears a number (default 100CM), for the minimum measurement limit, the minimum measurement limit can be increased by S1, S2 reduced to change.
3, when setting the minimum measurement, then click the S3 button, showing the emergence of HHH, for the maimum measurement limit set; and then press the SET button, showing a number (default 255CM), for the maimum measurement limit value. Maimum measurement limit. By increasing the S1, the S2 decreases to change.
When setting the maimum value, then press the S3 key, save the set value, and has the power down storage function.
