Copper wire drawing machine with annealer
- 50 Set / Sets per Month
- shanghai
- T/T
- Fully automatic double-end single-head inserting machine
- Automatic single-head insert shell single-head dipping machine
- Fully automatic double end terminal inserting machine
- Center wire drawing machine with continuous annealing equipment
- Center wire drawing machine with continuous annealing equipment
- Copper wire drawing machine
Product Details
Place of Origin: | Shanghai, China | Brand Name: | HXE | Model Number: | HXE-17DT |
Usage: | Other, Drawing, Drawing,Copper wire drawing and annealing |
Product Description

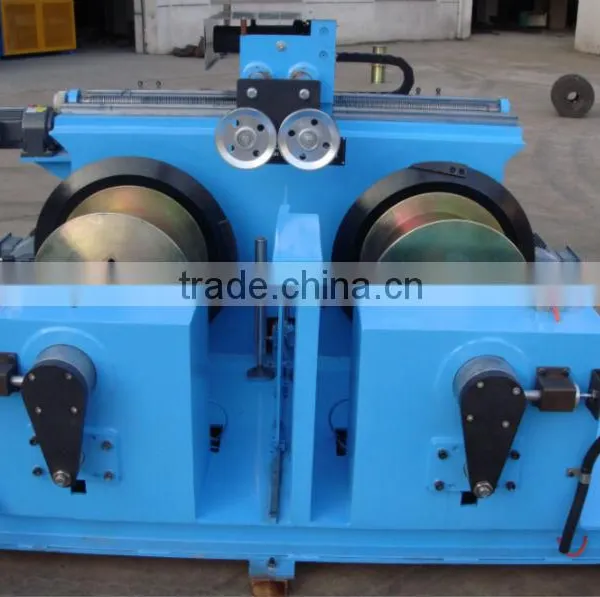

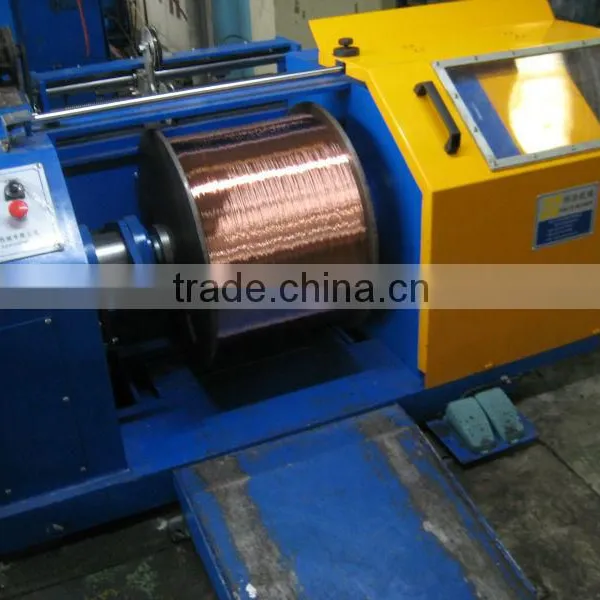

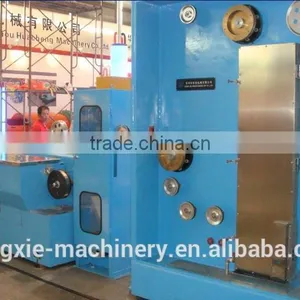

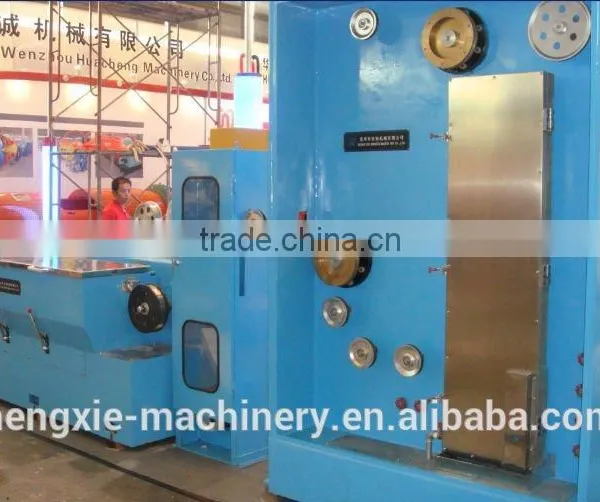

Copper wire drawing machine with annealer
Inverter control | Double inverter control |
Die NO. | 17 |
Input diameter | Φ2.5Φ3.2mm |
Output diameter | Φ0.4Φ1.2 mm |
Line speed | MAX1200m/min |
Machine elongation | 18% |
Slip ratio of fix speed capstan | 13% |
Frame | Ironed cast |
Drawing wheel | Carbonization tungsten |
Pulling motor | 37KW |
Take up motor | 11KW |
Capstan diamter | Φ260mm |
Fix speed capstan diameter | Φ260mm |
Annealing wheel diameter | Φ250mm |
Annealing voltage | DC0~60V |
Annealing current | DC1200A |
Annealing protecting | Steam or N2 |
Take up type | Shaft type |
Transmission type | By chains |
Detecting device | Weight balance by swimming arm |
Tension type | By air pressure |
Loading capacity | 200KG |
Lubrication type | spray |
Brake | Disc brake |
Power source | 380V50/60HZ |
Machine weight | 3000KG |
