17MDST Middle Copper Wire Rod Drawing Machine with Annealer -Factory Quality Choice
- 45 Set / Sets per Month
- Shanghai
- T/T
-
Fully automatic double-end single-head inserting machine
-
Automatic single-head insert shell single-head dipping machine
-
Fully automatic double end terminal inserting machine
-
Center wire drawing machine with continuous annealing equipment
-
Center wire drawing machine with continuous annealing equipment
-
Copper wire drawing machine
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | HXE | Model Number: | 17MDST |
| Usage: | Other, Drawing, wire drawing |
Product Description
medium wire drawing machine with annealer/cable making machine/cable equipment/
Specification
inlet size:2.5mm-3.0mm
Outlet size:0.4mm-1.2mm
Speed:1500m/min
Advantages:
1.high speed
2.high quality
3.high productivity
Main technical parameter
Usage | Bare copper wire drawing |
Inlet diameter | 2.5mm-3.0mm |
Outlet diameter | 0.4mm-1.2mm |
Max. speed | 1500m/min |
Power source | Three phase AC 3×380 (±10%) |
Annealing voltage | 0-50V(DC) |
Annealing current | 0-1200 A(DC) |
Annealing power | 60KVA |
Steam generator power | 9KW |
Capacity of steam | 12 kg/h |
Main motor | AC 3 Phase 55KW |
Take up motor | AC 3Phase 11kw |
Spool size | diameter500mm-630mm/Max |
Capstans | Ceramic coated |
Capstan lubrication | full immersion |
Brake | pneumatic brake |
Air pressure | 4-6kg/cm2 |
Machine dimension(L*W*H) | 13300mm*3500mm*3400mm |
Machine weight | 6500kg |
Certification

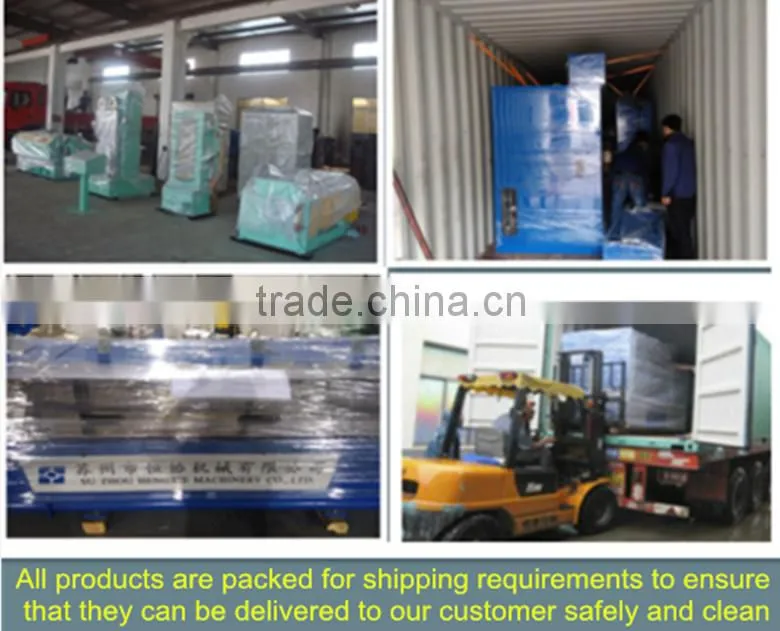

Package&Delivery
In Exhibition

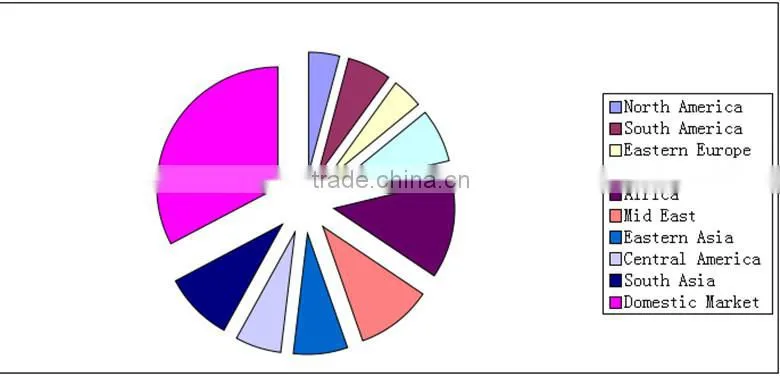

Market Share
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Contact Us
- Suzhou Hengxie Machinery Co., Ltd.
- Contact nameBryant Wu
- Phone0086-512-66709056
- AddressWanting Town Suzhou,Jiangsu
-
