Home > Manufacturing & Processing Machinery > Manufacturing Equipment for Electrical & Electronic Product > Cable Extrusion Machine > Drawing Usage Continuous Annealed Medium Wire Drawing Machine With Online Annealing -9DT

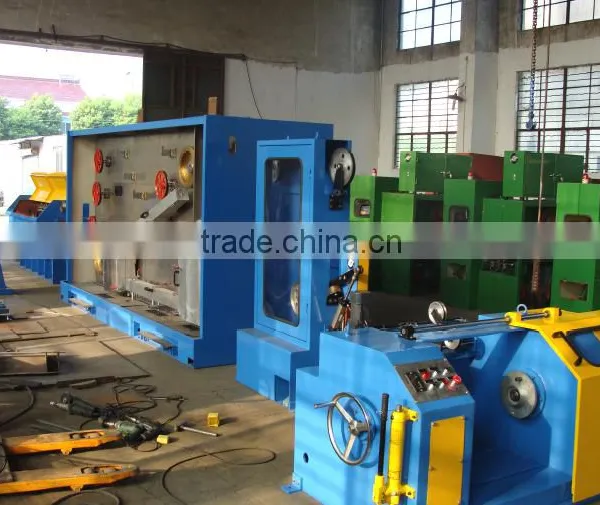

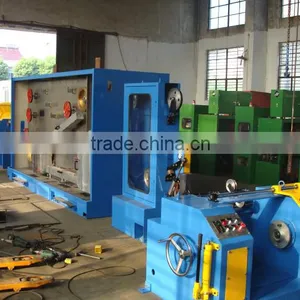

Drawing Usage Continuous Annealed Medium Wire Drawing Machine With Online Annealing -9DT

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HXE

Model Number:

9DT

Contact Supplier Request Quote Chat Now

Suzhou Hengxie Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HXE

Model Number 9DT

Usage Drawing

Specification

1. Inlet diameter: 3.0-3.5mm

2. Outlet diameter: 1.0-2.8mm

3.Speed: 1000mpm

Main technical parameter

Machine type	HXE-9DT	HXE-13DT
Control system	Traditional analog type/digital control with production record
Inlet diameter	3.0-3.5mm	3.0-3.5mm
Outlet diameter	1.0-2.8mm	0.8-2.8mm
Max line speed	1000	1000
Die numbers	9	13
Slip ratio of machine	19.6%+12.5%
Frame	Welded by steel plate
Capstan	Tungsten
Max capstan diameter	280mm
Fix speed capstan diameter	280mm
Spooler bobbin size	400-630mm
Bobbin loading &unloading type	Double end thimble
Max loading capacity	500KG/MAX
Annealing method	DC three section annealing
Main motor	AC45KW
Spool motor	AC11KWx2
Max annealing current	DC3000A
Max annealing voltage	DC60v
Annealing power	180KVA
Steam quantity	18kg/h
Cooling water capacity	650L/min
Compressed air capacity	0.4-0.6Mpa,50L/min
Power source	380V 50/60HZ
Dimension	13300x3500x3400
Weight	8500KG

Certification

Packaging&Delivery

Exhibition

Brand of accessories

Inverter : Invoance

Motor :Wannan

Precision resistance: WDD military enterprise

Bearing :NSK

Low voltage equipment: France Schneider

Warranty

6 month for electrical part

12 month for mechanical part

After-sell service

Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple problem
