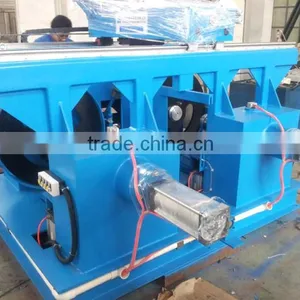

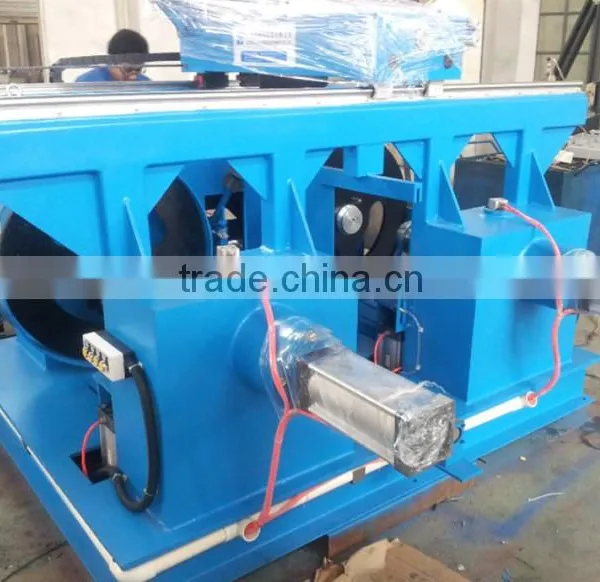

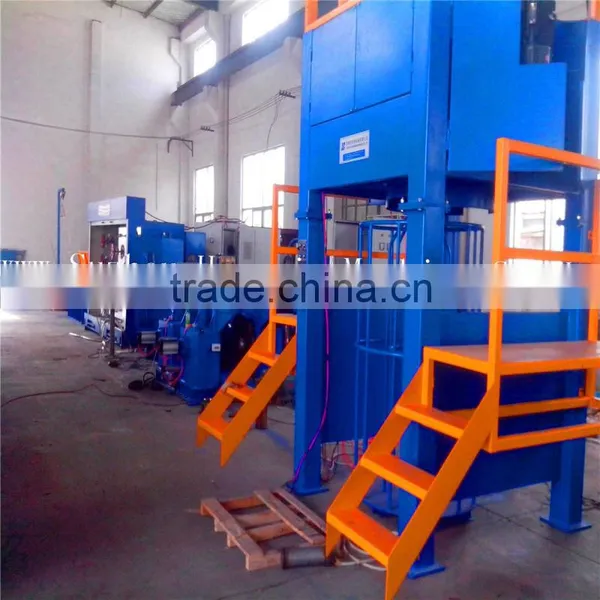

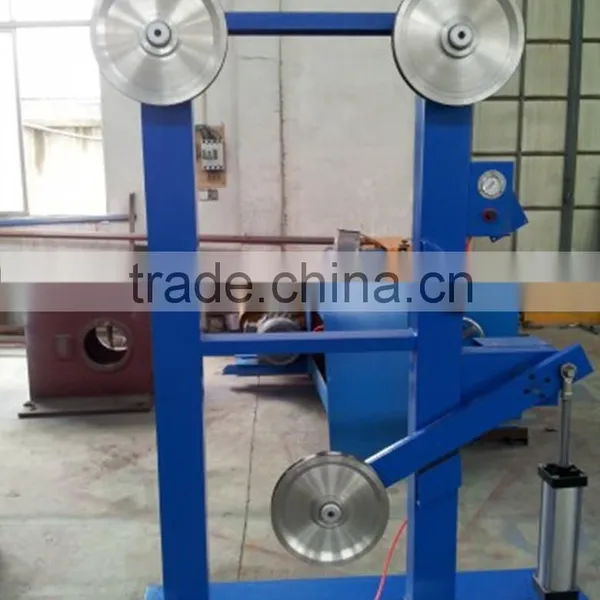

Help CenterHXE-9DTlarge Intermediate Copper Wire Drawing Machine With Annealing
Related Products
-
Intermediate Copper Electric Wire Drawing Annealing MachineUS$ 1 - 3MOQ: 1 Set -
17MDST Middle Copper Wire Rod Drawing Machine With Annealer -Factory Quality ChoiceUS$ 100 - 10,000MOQ: 1 Set
-
9 Draft Bare Copper Wire Cable Drawing Machine With Online Annealer -high ProductivityUS$ 1 - 2MOQ: 1 Set
-
Drawing Usage Continuous Annealed Medium Wire Drawing Machine With Online Annealing -9DTUS$ 1 - 2MOQ: 1 Set
-
Continuous Annealed Medium Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
About us
We have been in this industry more than 10 years, and cooperate with Dozens of listing company for very long time. Our products cover 20 provinces and municipalities in domestic market. With the years of development , we have gained rich experience in maintain hundreds types of machine.
Stable quality, cooperation and development. Your choice, Our mission

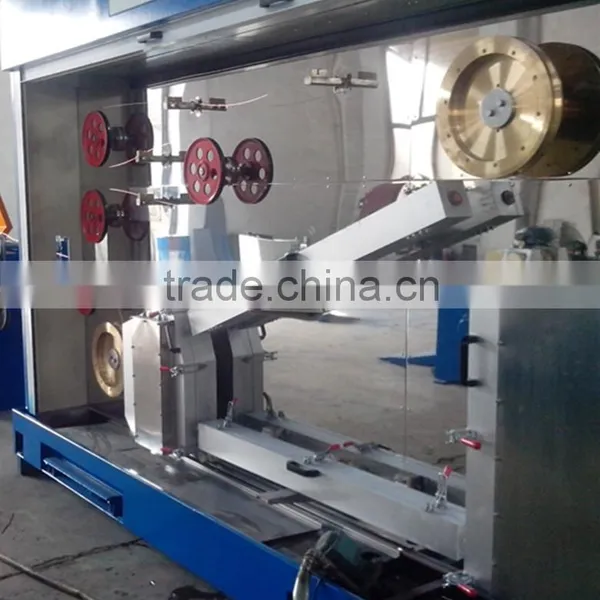

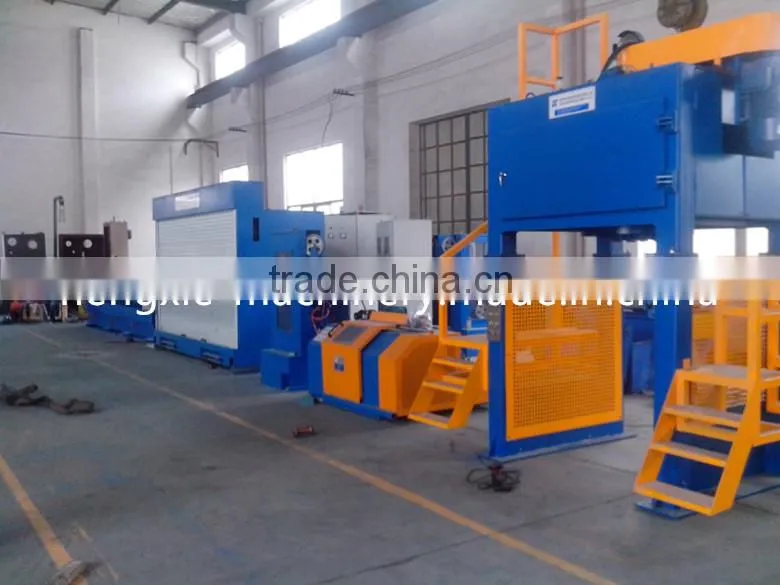

Large-medium copper drawing machine with continous annealer
Main technical parameter
Machine type |
HXE-9DT |
HXE-13DT |
Control system |
Traditional analog type/digital control with production record |
|
Inlet diameter |
3.0-3.5mm |
3.0-3.5mm |
Outlet diameter |
1.0-2.8mm |
0.8-2.8mm |
Max line speed |
900 |
1000 |
Die numbers |
9 |
13 |
Slip ratio of machine |
19.6%+12.5% |
|
Frame |
Welded by steel plate |
|
Capstan |
Tungsten |
|
Max capstan diameter |
280mm |
|
Fix speed capstan diameter |
280mm |
|
Spooler bobbin size |
400-630mm |
|
Bobbin loading &unloading type |
Double end thimble |
|
Max loading capacity |
500KG/MAX |
|
Annealing method |
DC three section annealing |
|
Main motor |
AC45KW |
|
Spool motor |
AC11KWx2 |
|
Max annealing current |
DC3000A |
|
Max annealing voltage |
DC60v |
|
Annealing power |
180KVA |
|
Steam quantity |
18kg/h |
|
Cooling water capacity |
650L/min |
|
Compressed air capacity |
0.4-0.6Mpa,50L/min |
|
Power source |
380V 50/60HZ |
|
Dimension |
13300x3500x3400 |
|
Weight |
8500KG |
|
Certification
Package&Delivery
In Exhibition
