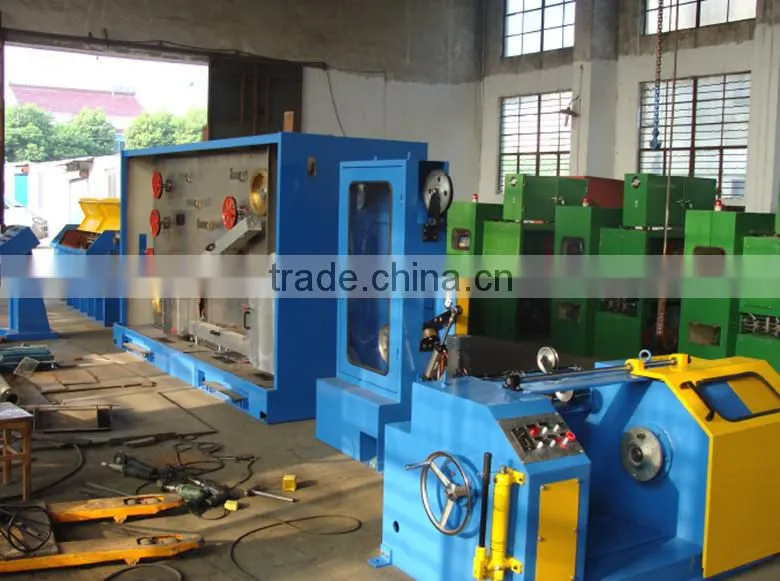

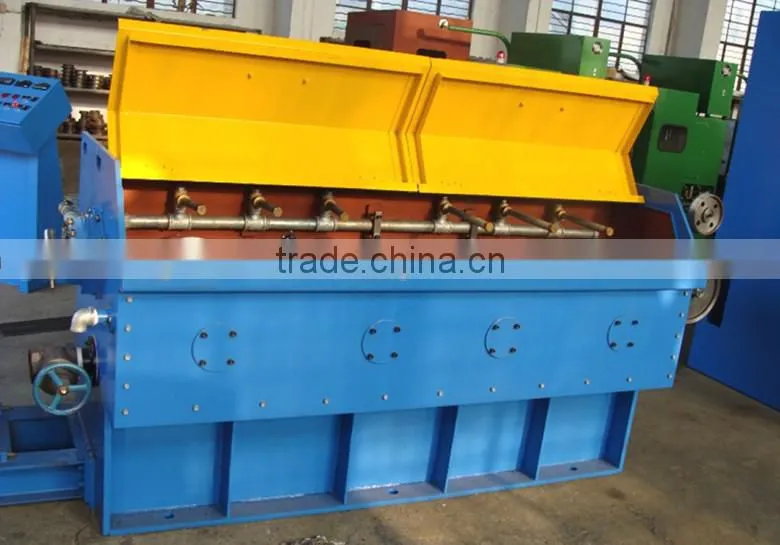

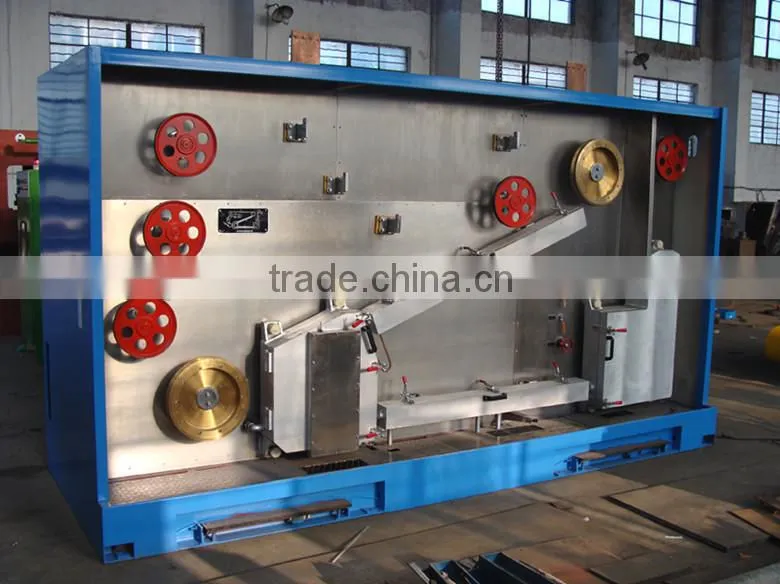

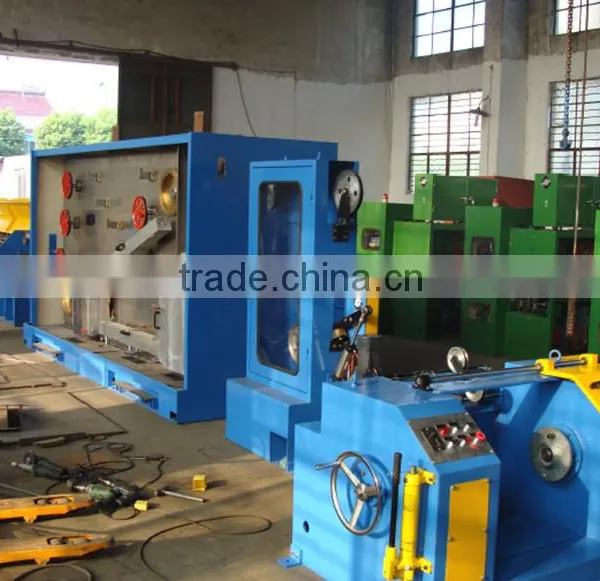

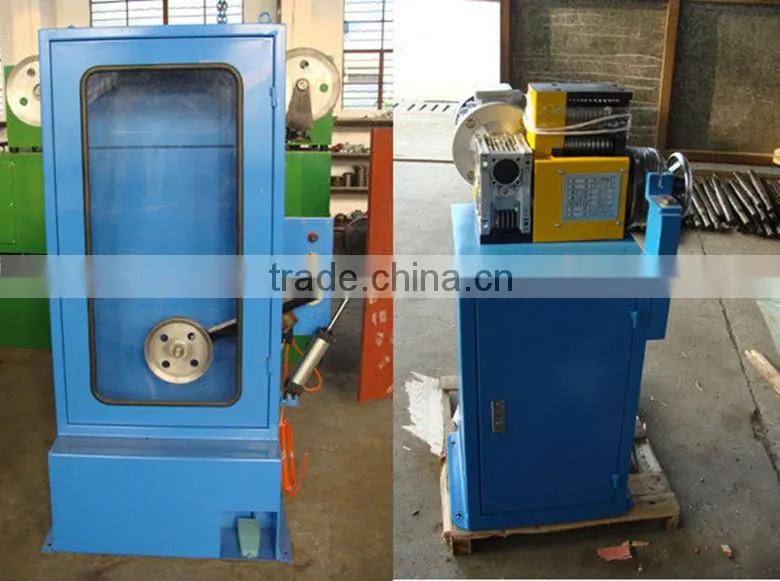

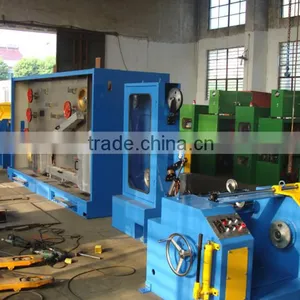

Bare copper drawing machine with online annealer -high productivity
Specification
1.inlet size:8mm
2.Outlet size:1.2mm-3.5mm
3.high productivity
Main technical parameter
Usage |
processing copper |
inlet size |
8mm |
Outlet size |
3.5mm-1.2mm |
Max mechanical speed |
1000m/min |
Dies number |
13pcs |
Dies size |
30mm*15mmT or 25mm*10mmT |
Slip ratio of m/c |
1 -12 die: 19.6% , 13 die: 12.5% |
Lubrication |
half dip+pipe spray |
Lubrication requirement |
150L/ per minute |
Main motor for drawing |
45KW three phase motor |
Spooler motor |
15kw three phase motor |
Annealing speed |
300-1000m/min |
Annealing voltage/max |
60V |
Annealing current/max |
5000A |
Annealing power |
165KVA |
Annealing type |
D.C three section |
Steam capacity |
10-12kg/h,0.2-0.3Mpa |
Coolant liquid capacity |
12-18m3/h,0.2-0.25Mpa |
Air pressure |
4~6KG/CM2 |
Type |
pneumatic swing arm |
Compressed air capacity |
20-30m3/h,0.5-0.6Mpa |
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
