Gold Wahing Trommel Screen With Sluice Box
Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd.
- Jinma provide the design, process diagram and foundation drawings according to clients' request.
- Clients are welcome to inspect the equipment when the equipment are ready to delivery.
- Equipment will be delivered with English Manuals and technical drawings
- Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
- The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
- Offer spares for the equipment within 10 years.
Oversea customers come to visit to our factory:
The certifications acknowledged by different institutations:

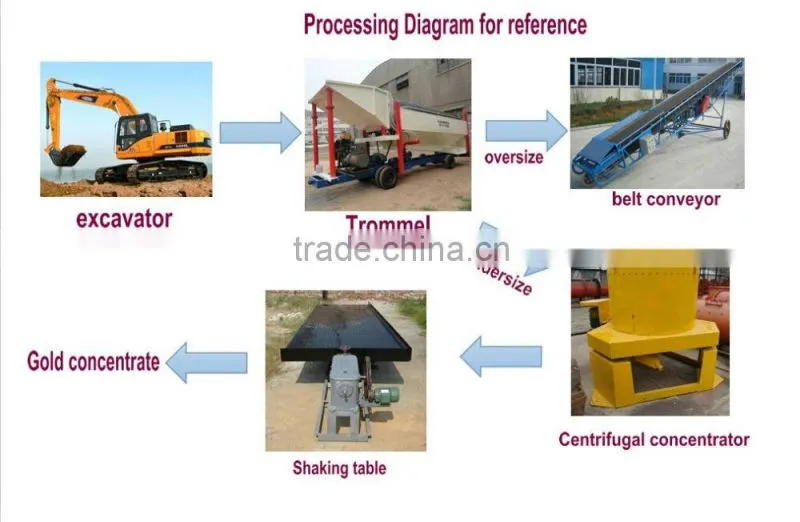

Gold washing trommel screen working process:
1>-Input of raw materials through heavy equipment
Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the HOPPER.
2>-Selection and cleaning of raw materials
Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and, by watering of the shower inside, run into the gold dust separate panel.
3>-Collecting of gold dust separated
Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
Features of Jinma gold washing trommel screen
Owing to simple operation and easy maintenance of Jinma trommel, single operator can manage several equipments at the same time.
1>- Simple replacement and collecting of gold-dust-gathering mat
2>- Gathering mat shall be replaced at every 5 hours for 10 hours of working.
3>- Increasing productivity of gold-dust through 24 hour working
4>- Eco-friendly facility without chemicals
5>- Wide usages from investigation stage up to the commercialized production
Gold washing trommel screen technicial parameters
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |
Gold washing trommel screen produced by Jinma mining:

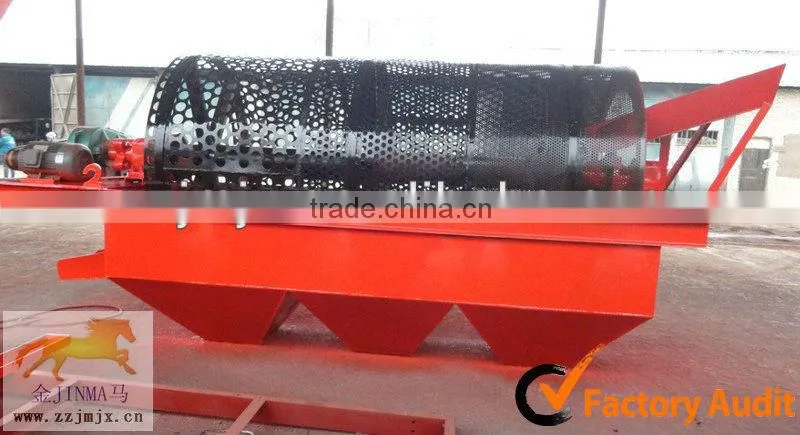

1>Fixed trommel screen

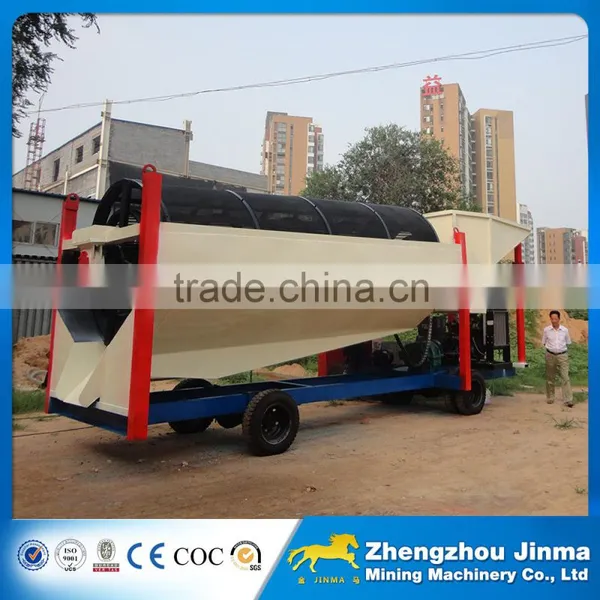

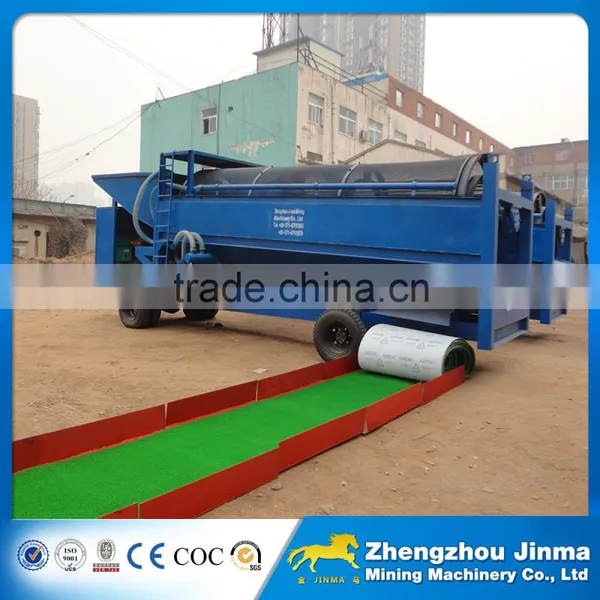

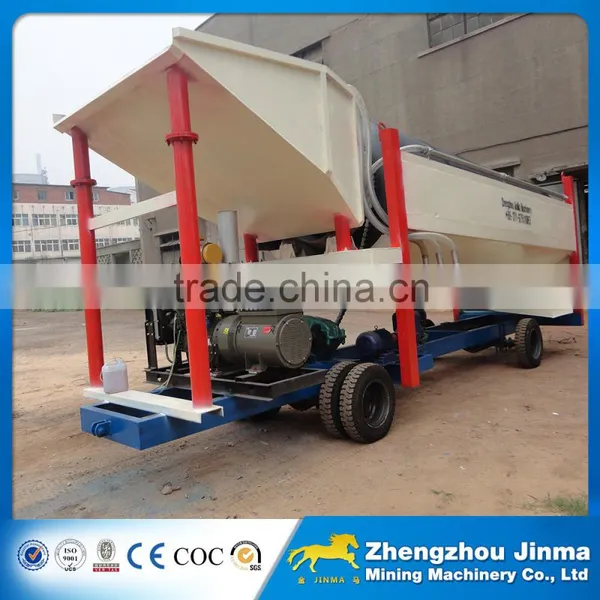

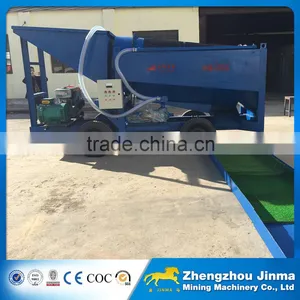

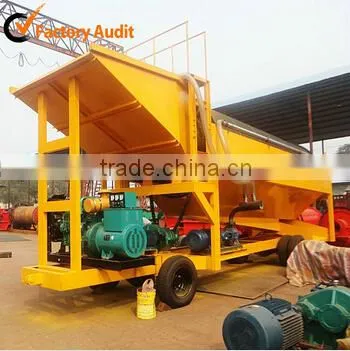

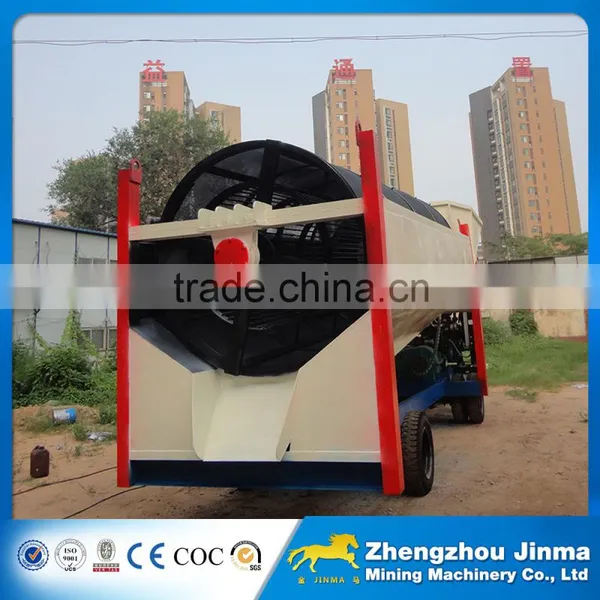

2>Mobile portable trommel screen

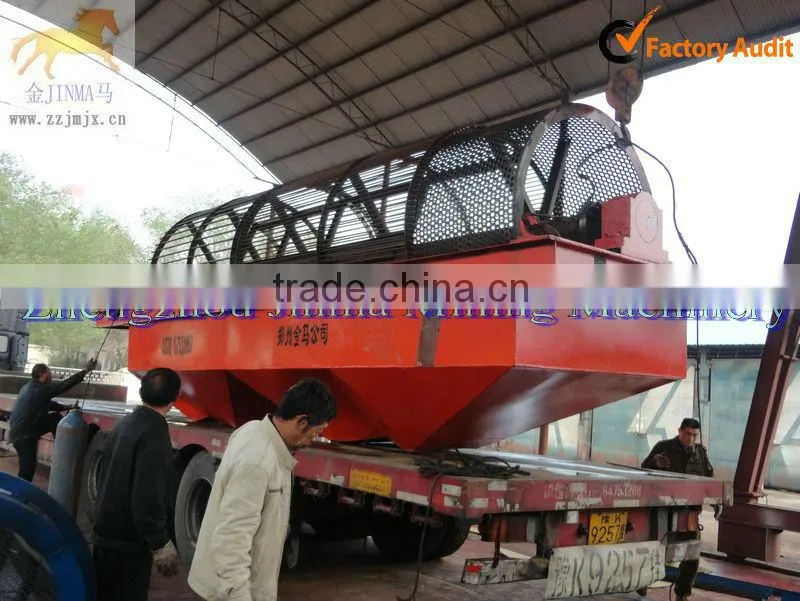

The delivery of Jinma trommel screen

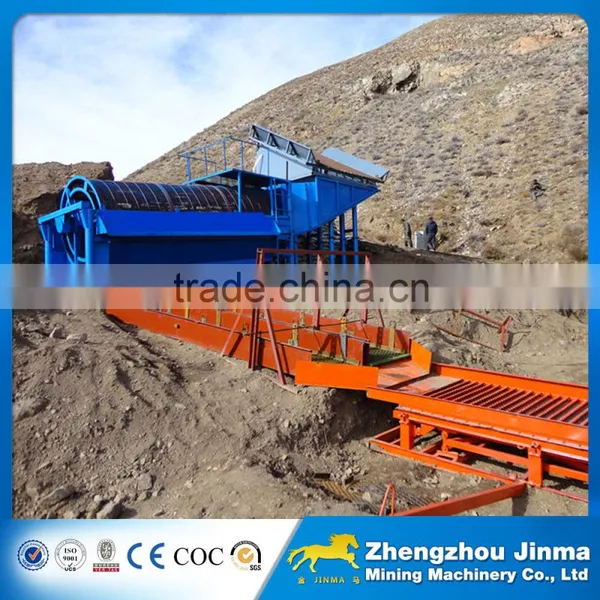

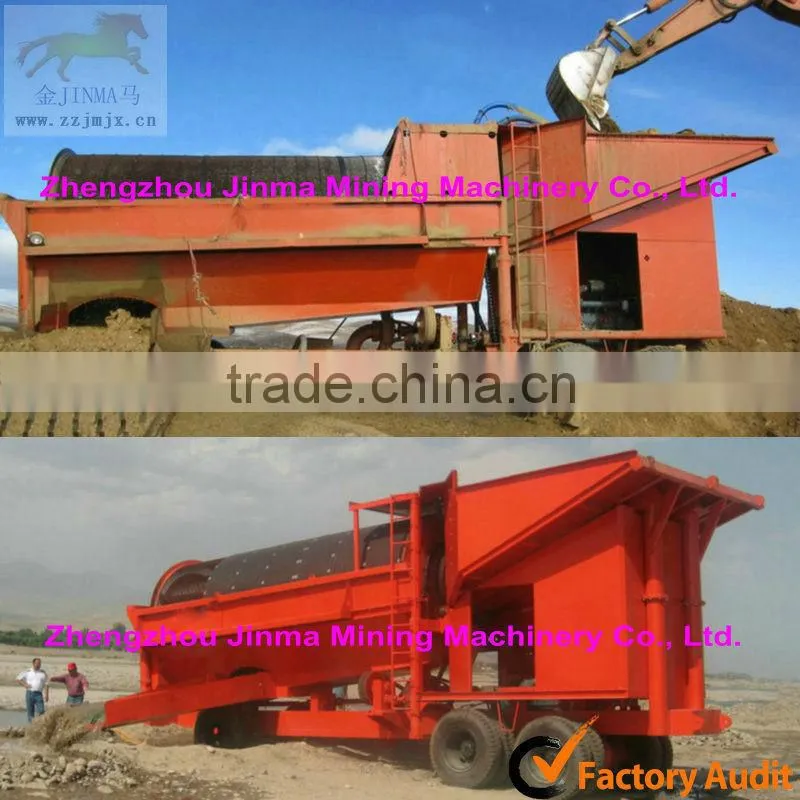

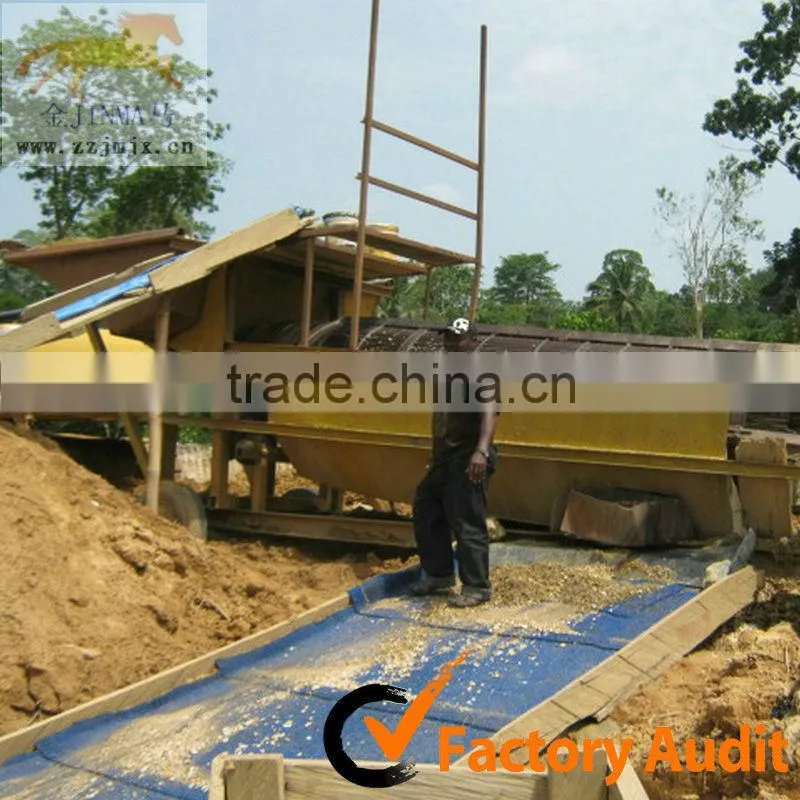

The working sites from Jinma clients
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
4.Can you give me a solution and quotation?
Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
If you want to learn more about the products,you could contact me.
| Name | Cathy Chen |
| Skype | cherish2228617703 |
| Mobile | 86-13939060840 |
Looking forward to having a win-win cooperation with you.
