Mobile Gold Panning Equipment Rotary Drum Screen
1.Introduction of mobile trommel screen
Mobile trommel screen is widely used in classifying the solid materials in coal,mining,electric power,light
industry and other industries,screening the wet materials in metallurgy,construction industry and
chemical industry ,too.With a high screen transmittance,it is particularly suitable for the screening of
wet and sticky materials.The screening pores can never be blocked,and this product is widely used
for the screening and griding of coal,gravel and other materials in electric power,minging,metallurgy,
building materials,chemical and other industries.
2.Features of mobile trommel screen
♦ Screen is not to be blocked
♦ Simple structure, easy to mainntaince
♦ Stable operation, low noise, lang operating time
♦ The high reliability, less one-time investment.
♦ Using special screen, large screening efficiency
♦ It is with wheel type chassis, can be driven by vehicles and move easily.
3.Technical parament of mobile trommel screen
Model |
Capacity (t/h) |
Power (kw) |
Drum diameter (mm) |
Drum length (mm) |
Feed size (mm) |
Discharge size(mm) |
Dimension (L*W*H) (mm) |
Weight (kg)
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
≤300 |
0-100 |
2600*1400*1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
≤300 |
0-100 |
3390*1400*2140 |
2800 |
GTS1225 |
160 |
5.5 |
1200 |
2500 |
≤300 |
0-100 | 4146*1600*2680 |
4200 |
GTS1530 |
250 |
7.5 |
1500 |
3000 |
≤300 |
0-100 | 4460*1900*2820 |
5100 |
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
0-100 |
5960*1900*3080 |
6000 |
GTS1848 |
450 |
15 |
1800 |
4800 |
≤400 |
0-100 |
6500*2350*4000 |
7500 |
GTS2055 |
600 |
22 |
2000 |
5500 |
≤400 |
0-100 |
7500*2550*4800 |
9600 |
GTS2265 |
800 |
30 |
2200 |
6500 |
≤400 |
0-100 |
8500*2750*5000 |
12800 |
4.Pictures of trommel screen
1>The fixed trommel screen

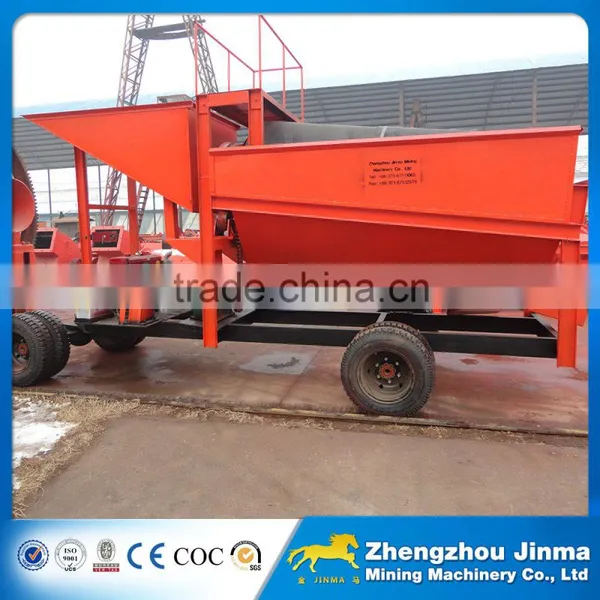

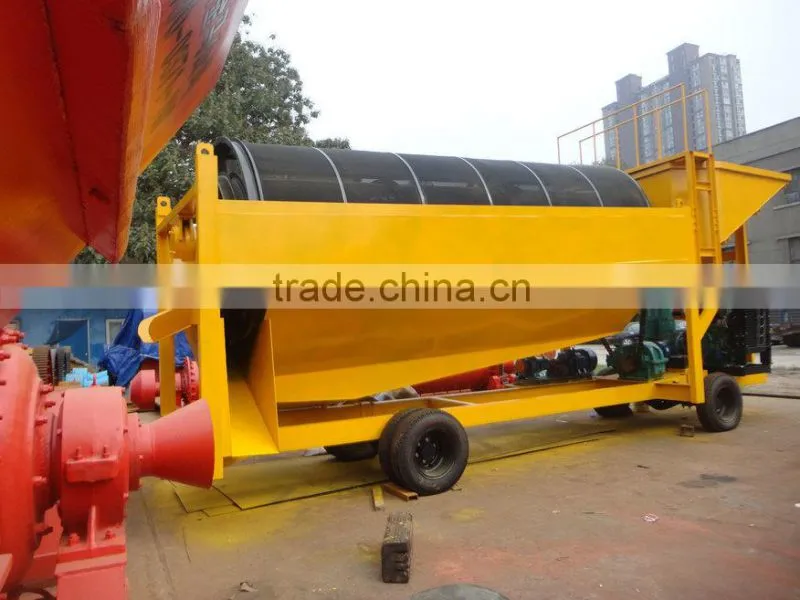

2>The mobile trommel screen

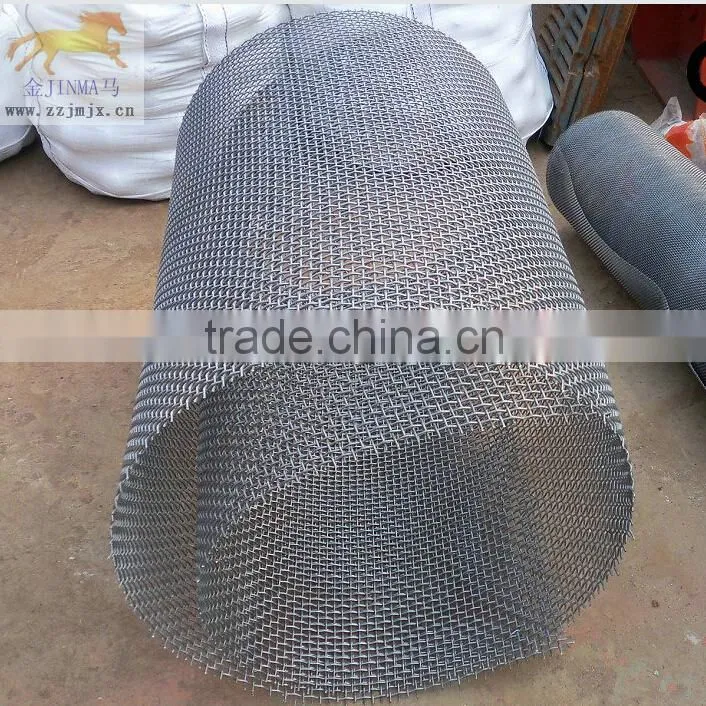

The screen mesh of trommel screen

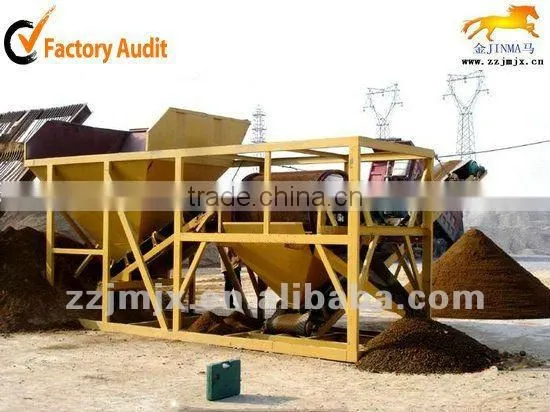

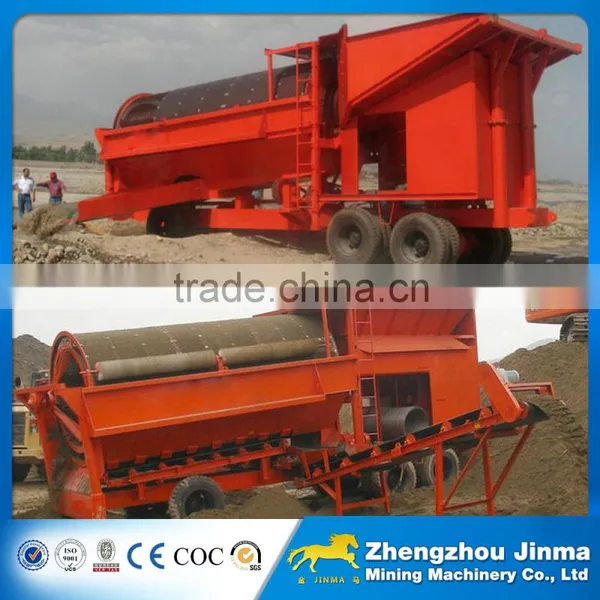

The working sites from Jinma company
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
