1.Application of screw sand washer
Sand washing machine is widely used in washing, grading, cleaning and washing operation operation of metallurgy, building materials,water and electricity industries. It is suitable for washing fine-grained and coarse-grained materials. Appropriate for building sand and sand road sand . The sand washing machine is reasonable in structure, convenient repair, large capacity, small power consumption, high cleanliness. The new sealing structure, fully enclosed oil bath type transmission device,adjustable overflow weir plate to ensure the series product efficient, durable, clean,good dehydration effect, fine product stability etc..
2.Working principal of screw sand washer
When the spiral sand washer working. Motor drives the impeller to rotate slowly through the belt, reducer, gear reducer. Tumbling and grinding with the impeller driving when sand and gravel into washing groove. Then remove the gravel covered surface impurities, and destruction of water vapor coated layer of sand, in order to facilitate the dehydration; at the same time, add water, forming strong currents, and wash away the small proportion of the impurities and foreign from the overflow outlet , complete cleaning effect. Clean sand were away by the leaves. Finally into the discharge port from the rotating impeller, complete sand cleaning effect.
3.Features of screw sand washer
1.reasonable stucture to ensure oprating stable
2.long service time and long time without repair
3.fine product stability
4.large capacity, low power consumption
4.Technical parameter of screw sand washer
Model |
Spiral diameter (mm) |
Capacity (t/h) |
Inclination (°) |
Power (kw) |
Weight (wt) |
FG-500 |
500 |
5-15 |
6-16 |
3 |
2.55 |
FG-750 |
750 |
6-40 |
6-16 |
7.5 |
3.82 |
FG-1000 |
1000 |
10-60 |
6-16 |
11 |
4.87 |
FG-1200 |
1200 |
15-90 |
6-16 |
15 |
7.9 |
FG-1500 |
1500 |
20-130 |
6-16 |
18.5 |
11 |
FG-2000 |
2000 |
40-200 |
6-16 |
30 |
21.5 |
FG2400 |
2400 |
60-300 |
3-16 |
45 |
26 |

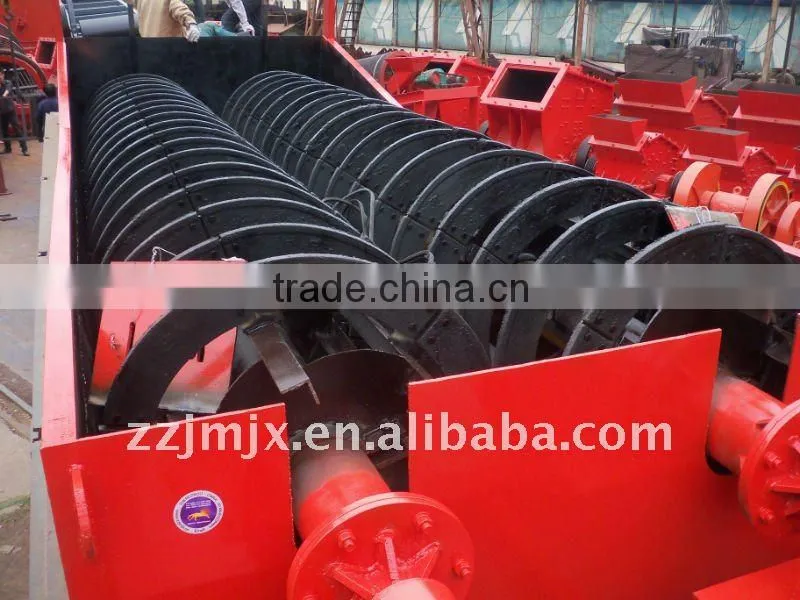

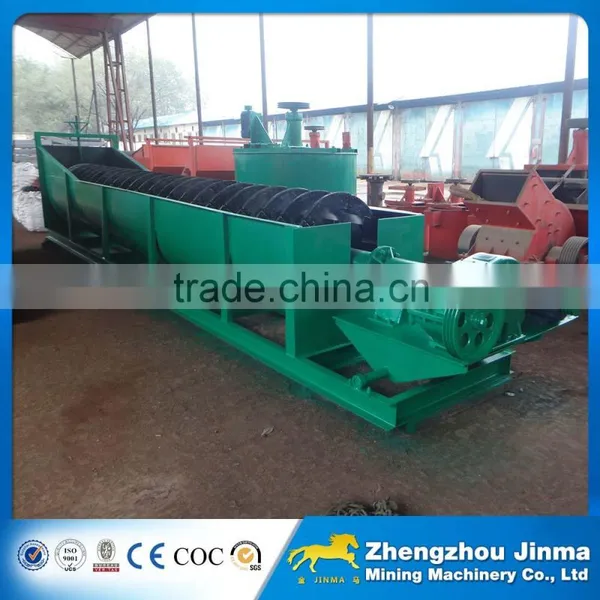

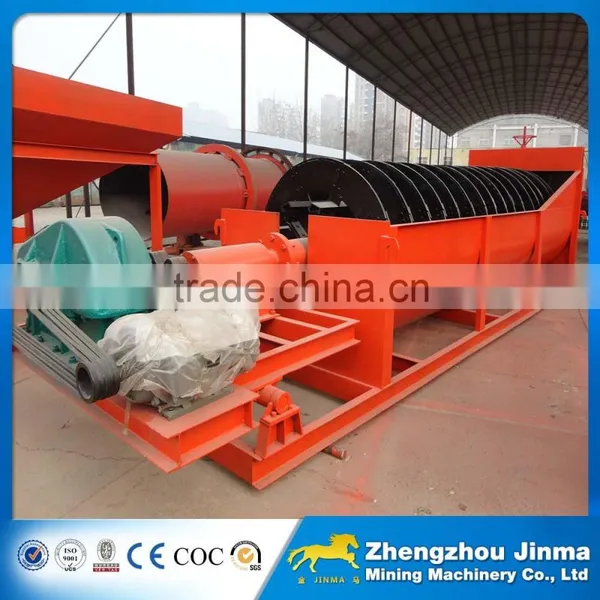

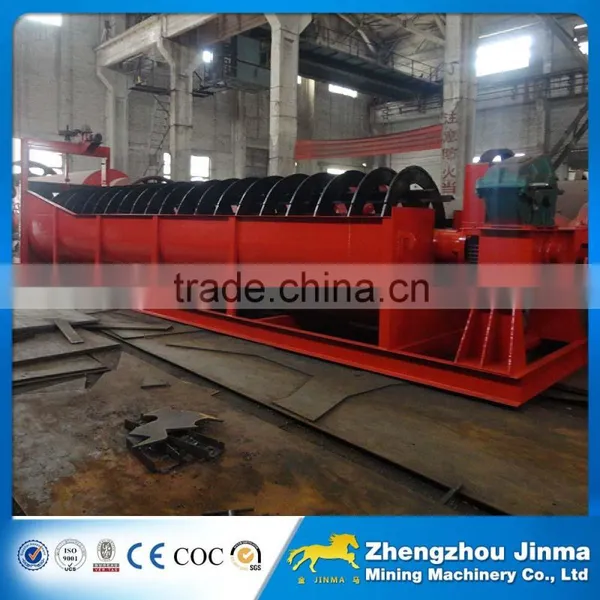

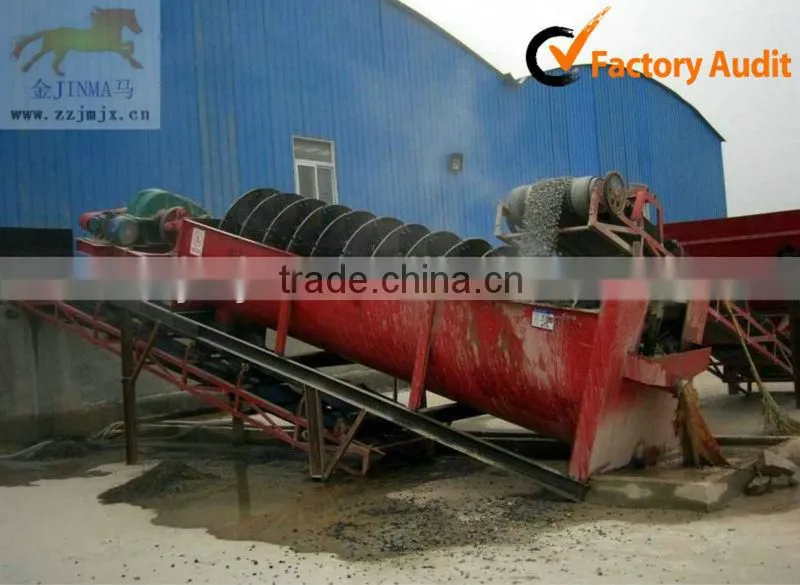

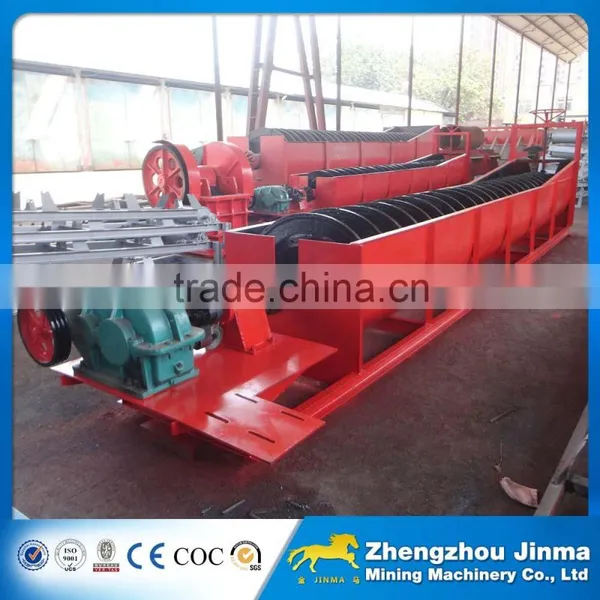

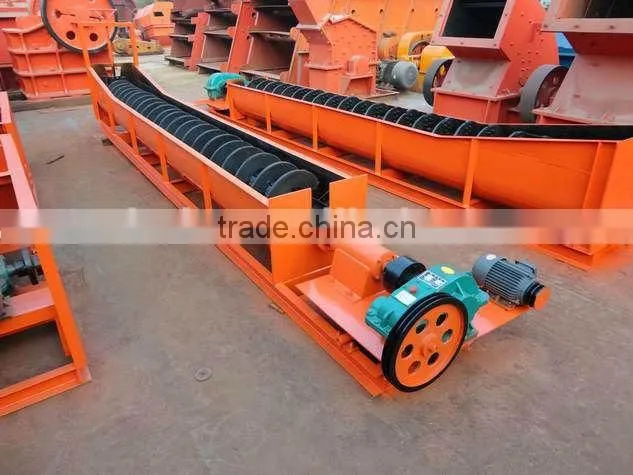

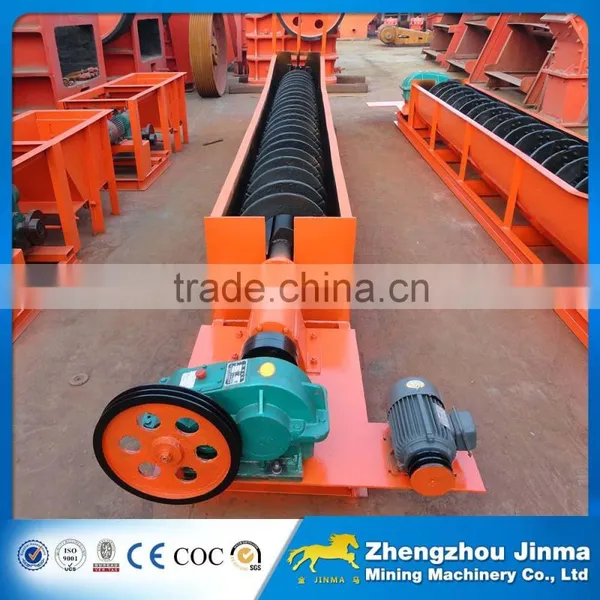

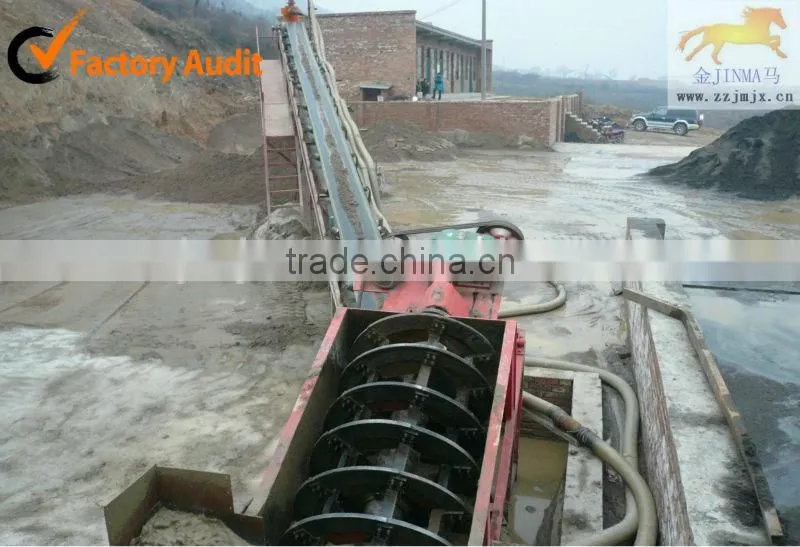

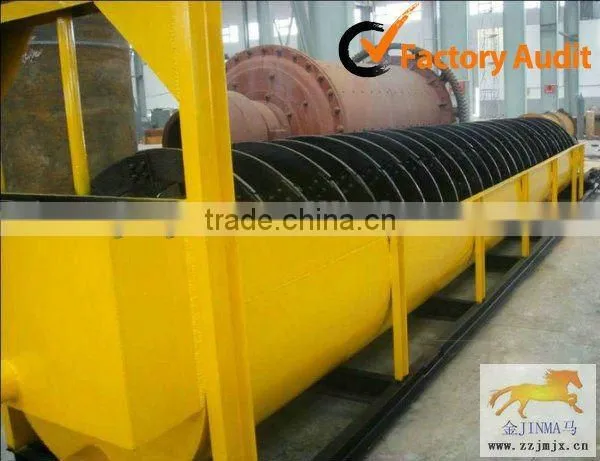

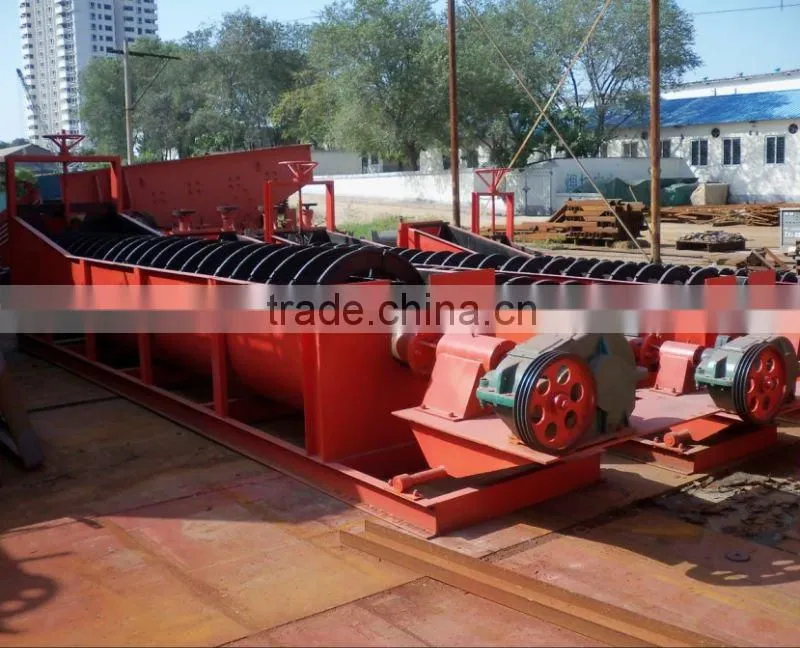

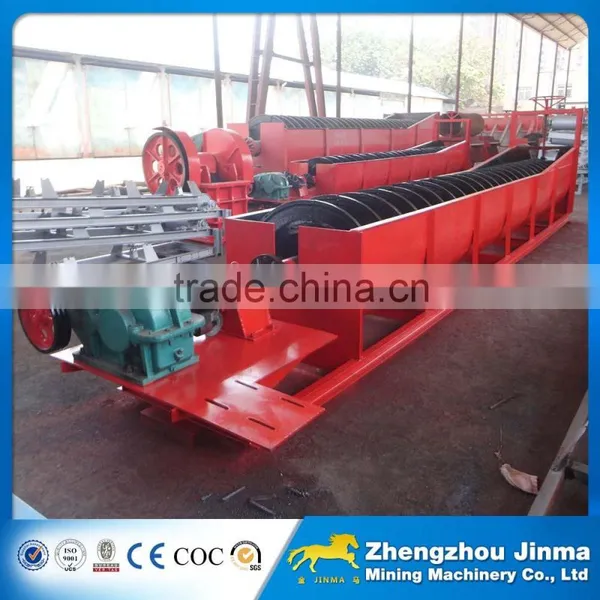

5.Pictures of screw sand washer
We adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
♦ Pre-sales service:We could recommend suited models and factory price according to your demands warmly.
♦ Sales service:Talk the details with you patiently and we will gratitude to answer your questions.
♦ After-sales service:We will provide 1 year warranty so that your machine can runs smoothly
♦ Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation ,our company specializes in manufacturing large and medium-size crusher sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD
♦ Our company has passed ISO9001:2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. Our product has exporter over 50 countries, like Chile, Peru, India, Pakistan, Iran, Russia, Indonesia, South Africa, Turkey Malaysia, Tanzania, etc.
♦ With the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation
