Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Diesel Welding Generator 3.2kva KDE300EW

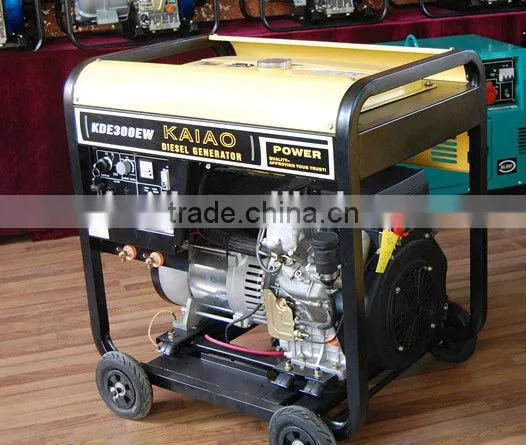

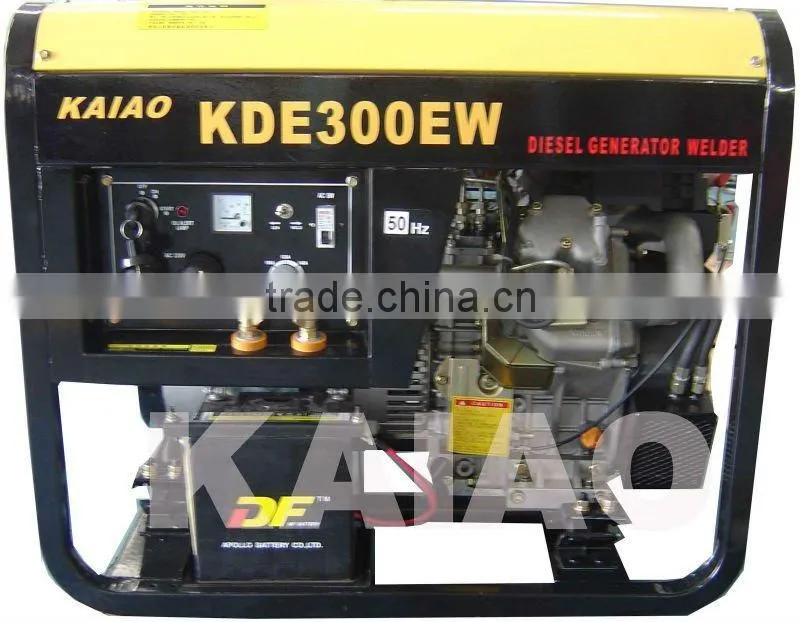

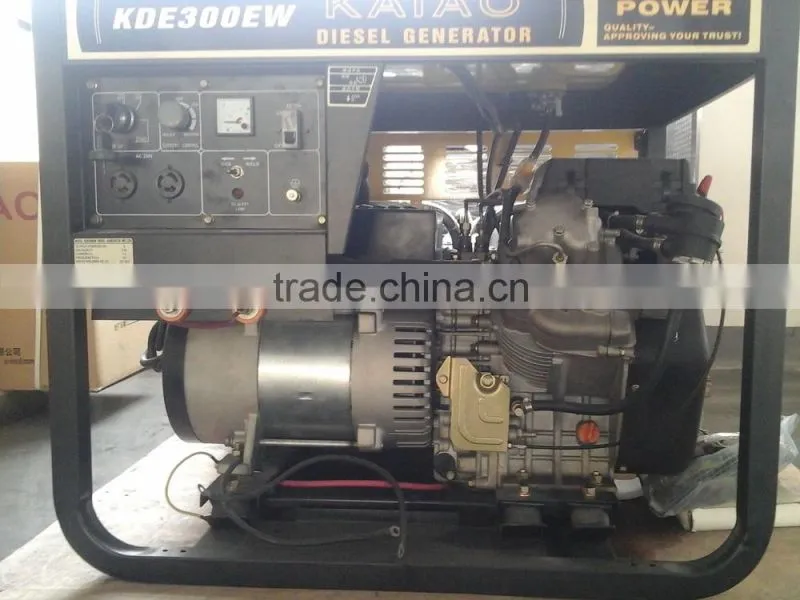

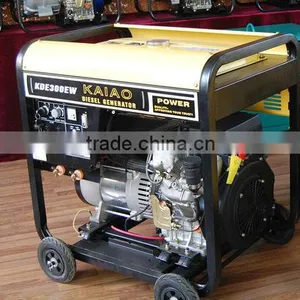

Diesel Welding Generator 3.2kva KDE300EW
US$ 2,100 - 2,200
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAIAO
Model Number:
KDE300EW
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Welding Generator 2.2kva Single Cylinder 4 Stroke Portable KDE6500EWUS$ 600 - 670MOQ: 5 Sets -
KDE6500EW Double Use 2kw Welding Generator 200A Current 3kw Welding Generator 300a CureentUS$ 585 - 630MOQ: 5 Sets
-
KDE6500EW 50-200A Diesel Engine Portable Welding GensetUS$ 540 - 590MOQ: 5 Sets
-
KDE6500EW 50-200A Diesel Power Adjust Current Welding GensetUS$ 540 - 590MOQ: 5 Sets
-
KDE6500EW 50-200A Diesel Power Arc Welding GeneratorUS$ 540 - 590MOQ: 5 Sets
Place of Origin
Jiangsu, China
Brand Name
KAIAO
Model Number
KDE300EW
Output Type
DC
Speed
3000/3600rpm
Frequency
50/60Hz
Rated Power
3.2kva
Rated Voltage
20-32V
Rated Current
50-300A
Specifications
1.100% copper wire2.Factory directly provided
3.CE & ISO approved
4.ANY REQUIRMENTS
| Model | KDE300EW |
| Frequency(Hz) | 50/60 |
| Voltage(V) | 230/240 |
| Current(A) | 13 |
| Output power(KW) | 3/3.2 |
| Speed(rpm/min) | 3000/3600 |
| Rated welding DC (A) | 300 |
| Rated welding voltage(V) | 20-32 |
| Current adjusting extension (A) | 50-300 |
| Power factorCOS | 1 |
| Phase | Single |
| Dimension(L*W*H)(mm) | 940*700*850 |
| Net weight(kg) | 200 |
| Structure | Open-frame |
| Service ability(In the load rated) | 12 hours of continuous work |
| Excitation system | Self-excitation constant voltage(with AVR) |
| Engine starting system | Electric start |
| Engine model | KA840 |
| Engine type | Two-cylinder,V-type,4 stroke,vertical,air cooled,direct injection |
| Power KW(r/min) | 10.3/11.3 |
| Diesel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W30(above CD grade) |
| Fuel tank capacity(L) | 25 |
