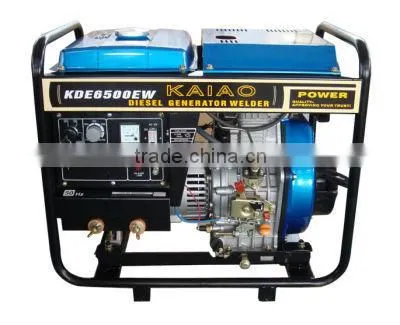

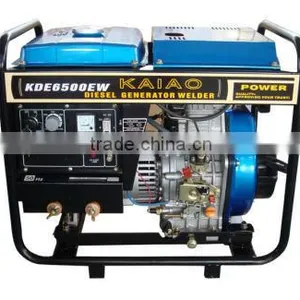

Help CenterKDE6500EW 50-200A Diesel Power Arc Welding Generator
Related Products
-
50-300A Open Frame Diesel Power Welding GeneratorUS$ 1,900 - 2,100MOQ: 5 Sets -
50-200A Integrated Cabinet Diesel Power WelderUS$ 640 - 660MOQ: 5 Sets
-
KDE6500TW 50-200A Integrated Cabinet Diesel Power WelderUS$ 640 - 660MOQ: 5 Sets
-
KDE300EW 50-300A Open Type Diesel Welder And GeneratorUS$ 1,900 - 2,100MOQ: 5 Sets
-
KDE300EW 50-300 Mobile Diesel Engine Arc Welding MachineUS$ 1,900 - 2,100MOQ: 5 Sets
Specifications
Diesel Power Arc Welding GeneratorOne unit,dual function
Excellent electricity and perfect welding
CE ISO9001
This series of diesel powered generating and welding dual use unit are manufactured by Kaiao Power Machinery.
Brief introduction:
Portable
Small scale ,lightweight and compact design with open-frame(four durable castors), improve on-site transportation and is suit for many working conditions.
Silent
Equip with high quality muffler,reduce some noise till 77dB, does not affact normal life and work.If you need more silence one ,T series will fit you.
One set,dual function
This one is the advanced product with dual function -generating and welding,.The unit can achieve perfect waveform of the welding voltage,no-fluctuating welding current realize high quality welding operation.
The welding arc is super smooth to get the perfect welding quality.Furthermore,its welding current regulation is wide enough to suit most of welding rods.
Feature
Equip with AVR(Automatic Voltage Regulator) and damper winding,which ensure steady voltage output and further enhance the electricity performance with extremely low voltage regulation and mimmum wavefoam distortion,low oil pressure alarm system,-which protect the machine from abrading-,also it can be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety.ATS system can automatically switch between main power and backup generator.Also it can be installed remote starter.
The enlarged all-in-one fuel tank lengthens the every run time.
Other
All the end of line connection are arranged orderly in the control panel make maintence more convenient.
Clear panel and customized sockets , is easy for operating.
This series are certificated with CE,ISO9001 and many domestic standard.
Parameter:
| Model | KDE6500EW |
| Frequency:Hz | 50 |
| Rated output:Kva | 2 |
| Rated.AC voltage:V | 230 |
| current:A | 8.7 |
| No-load welding voltaged:V | 65 |
| Rated welding voltaged:V | 26--30 |
| Rated welding DC:A | 200 |
| Current adjusting extension | 50--200 |
| Electric welding load rate | 50% |
| Phase | Single phase |
| Power factor:COS | COS=1 |
| Alternator type | self-excited,2-pole,single phase alternator |
| Starting system: | X:Recoil Starter E/T:Electric Starter |
| Operatong noise lecel(at 7m):dB(A) | X/E:77 T: 72 |
| Fuel tank capacity(L):L | X/E:12.5 T: 15 |
| Model | KA186FA |
| Engine type | Single-cylinder,vertical,4-stroke air-cooled diesel engine |
| Bore × Stroke:(mm) | 86×72 |
| Fuel | Summer:0# Winter: -10# |
| Lubricatiom oil Model | SAE10W-30(above CD grade) |
| Lubricatiom oil volume:L | 1.65 |
| Fuel comsumption Rate(g.kw/h) | 275.1 |
| Displacement:L | 0.418 |
| Power/speed:KW, r/min | 5.7/3000 |
| Compression Ratio | 19 |
| Combustion system | Direct lnjection |
| Dimension(L*w*h) | 640*480*530 |
| net weight | 105kg |
