Diesel powered gold ball mill introduction:
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Diesel powered gold ball mill Structure:
Ball mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Diesel powered gold ball mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Diesel powered gold ball mill for sale features
1) It is an efficient tool for grinding many materials into the power.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical indurstry.
4) There are two ways to grind: the dry way and the wet way
5) Ball mill can be divided into tabular type and flowing type according to different expelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush
the product into fine power over a period of several hours.
Small Ball Mill technical parameters
Type |
Rotation speed (r/min) |
Grinding media loading (t) |
Feed size (mm) |
Discharge size(mm) |
Capacity (t/h) |
Power (KW) |
Weight (T) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.51 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30-45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
30-45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6-5.5 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5.8 |
75-90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3-6.5 |
90-110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.074-0.4 |
3.5-8 |
110-132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.074-0.4 |
4-10 |
132-180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.074-0.4 |
7.5-17 |
210-245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.074-0.4 |
10-22 |
370 |
48 |
Φ2200×6500 |
21 |
31 |
≤25 |
0.074-0.4 |
14-26 |
380 |
50 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.074-0.4 |
15-29 |
475 |
56 |
Φ2400×7000 |
21 |
39 |
≤25 |
0.074-0.4 |
16-33 |
475 |
69 |
Φ2400×11000 |
21 |
51.5 |
≤25 |
0.04-0.08 |
16-35 |
630 |
99 |
Φ2700×3600 |
21 |
39 |
≤25 |
0.074-0.4 |
16-29 |
475 |
74 |
Φ2700×4500 |
21 |
43.5 |
≤25 |
0.074-0.4 |
20-35 |
500 |
80 |
Φ3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
25-40 |
800 |
137 |

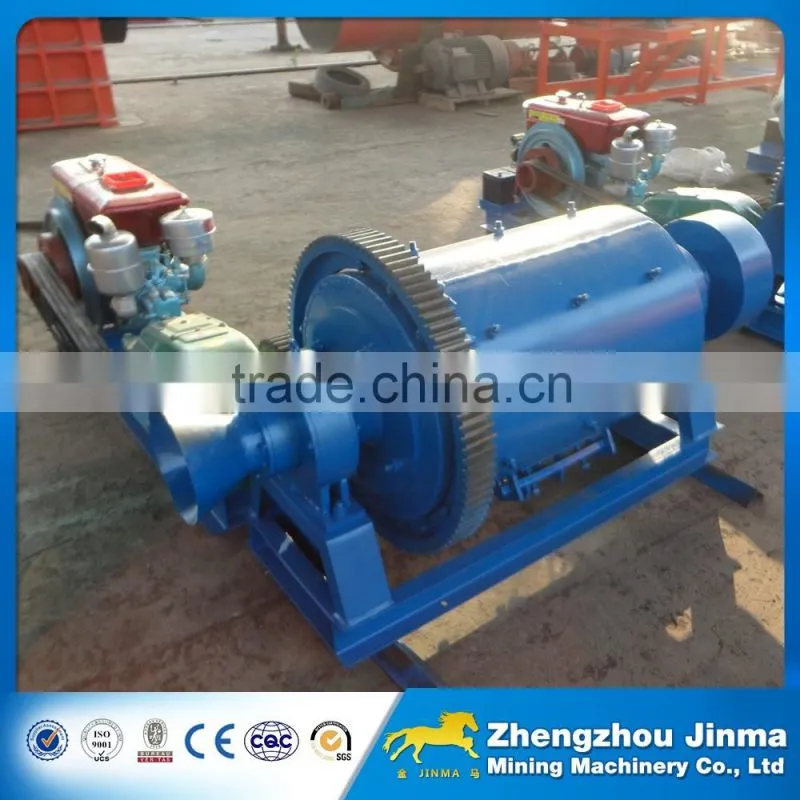

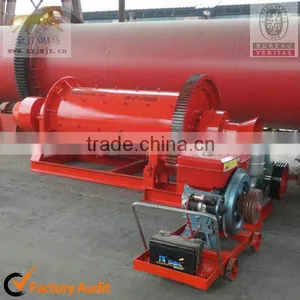

Diesel powered gold ball mill GZMY-600X900:

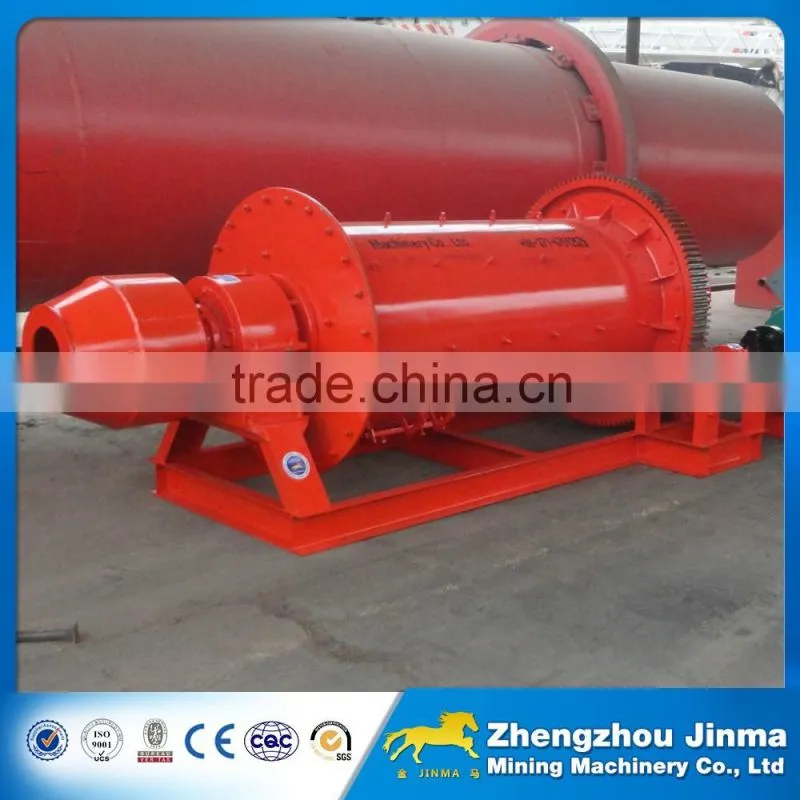

Ball mill 900x1200:

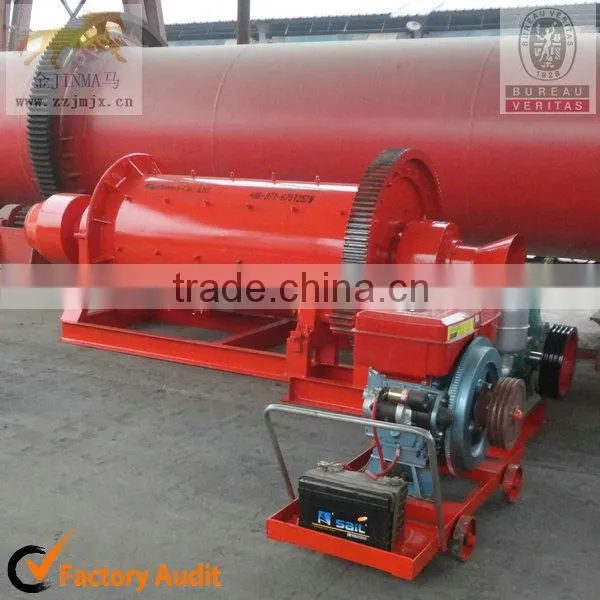

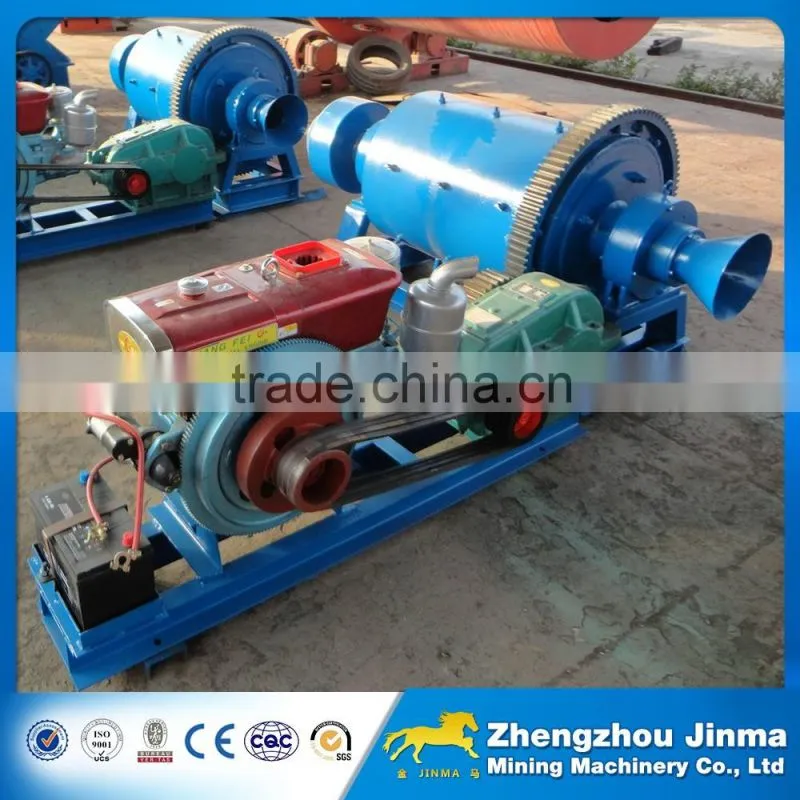

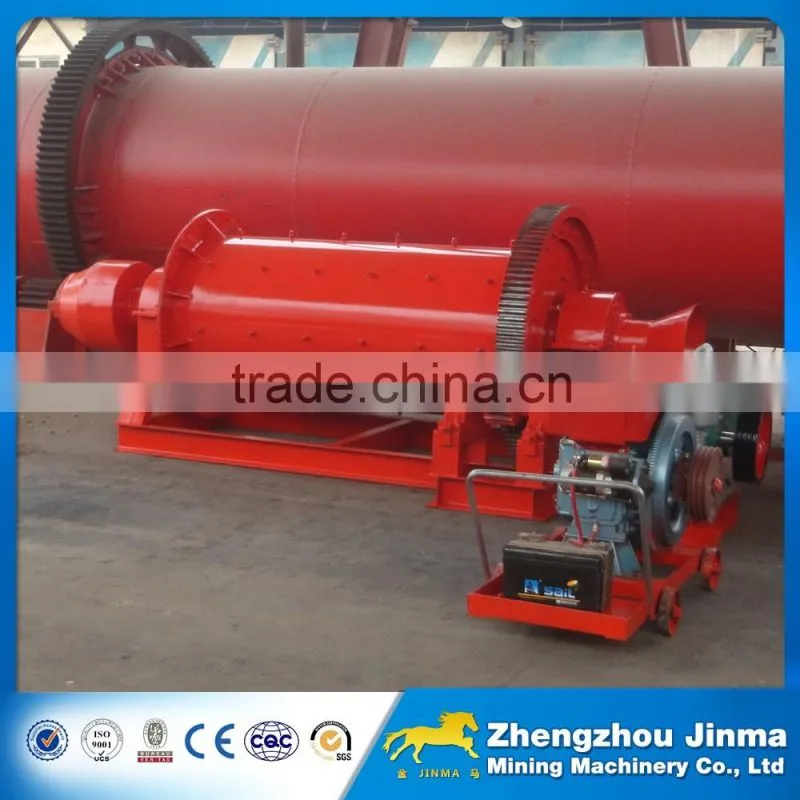

Diesel engine ball mill 900x1800:

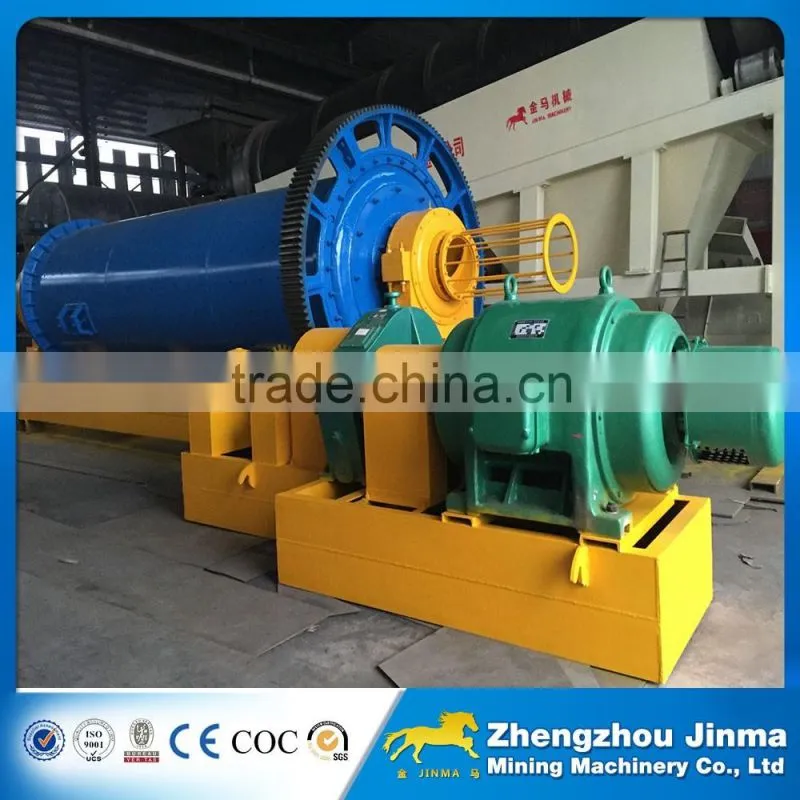

Ball mill 1200x1200:

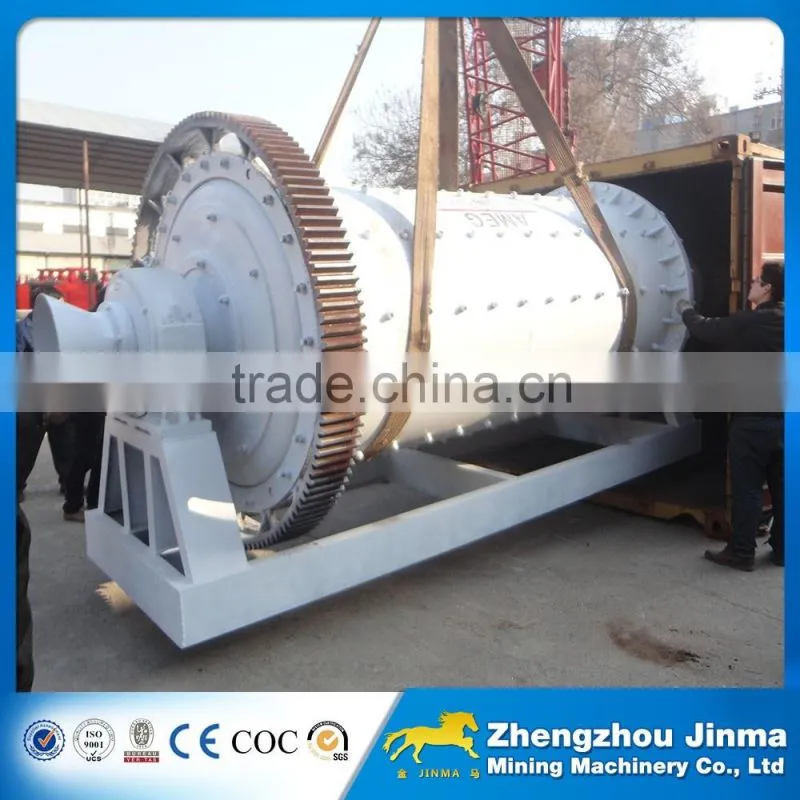

Ball mill 1830x3600 shipment:
Ball mill 1830X7000:

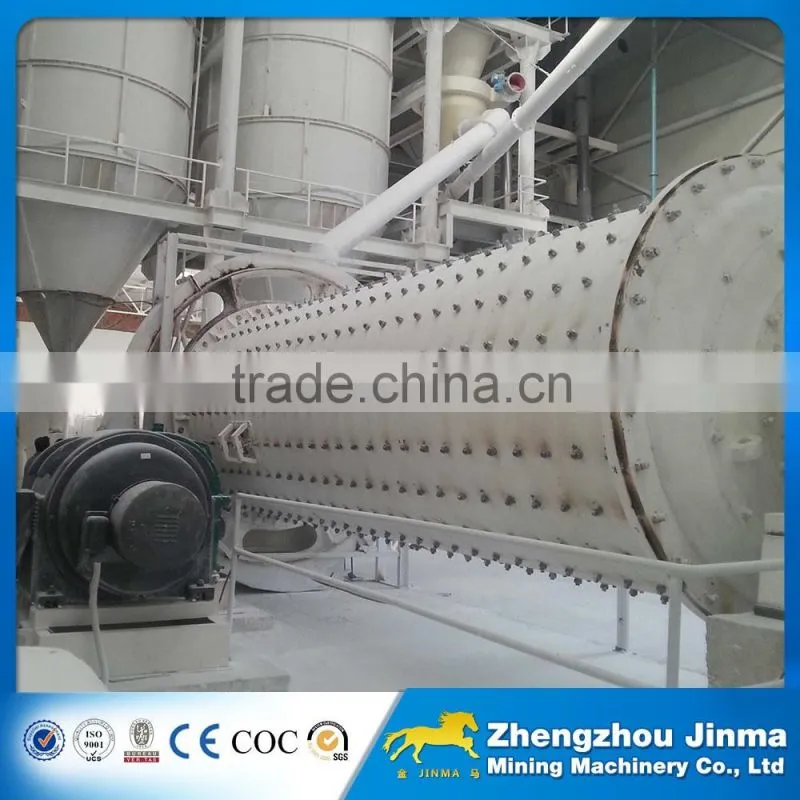

Cement grinding mill
For further details, please feel free to contact:
Tracy Xie
Zhengzhou Jinma Mining Machinery Co., Ltd.
Tel: +86-371-67511065 Fax: +86-371-67512579
Mobile/whatsapp:86-15038213376
Website:
Skype: asdfg200037
